Torque Converter, Installing

Torque converter, installing, 09A, 5 Spd. A/T

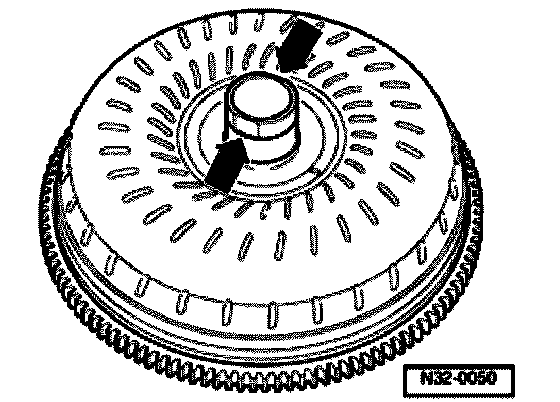

The ATF pump is driven via the torque converter (arrows).
When installing the torque converter, ensure that the drive engages in the recesses in the ATF pump inner wheel.

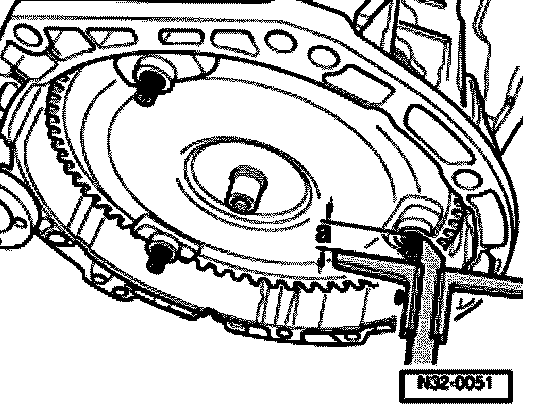

The torque converter is installed correctly when distance -a- between the transmission housing flange and the contact surface of the torque converter locating pins is
^ 21 mm on 4-cylinder engines
^ 17 mm on 6-cylinder engines

It is essential that distance -a- be adhered to for the rest of the installation. The torque converter must not slip forward.
