Home >> Volkswagen >> 2006 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Test Table >> Display Group Number 003

Display Group Number 003



09A, 5 Spd. A/T

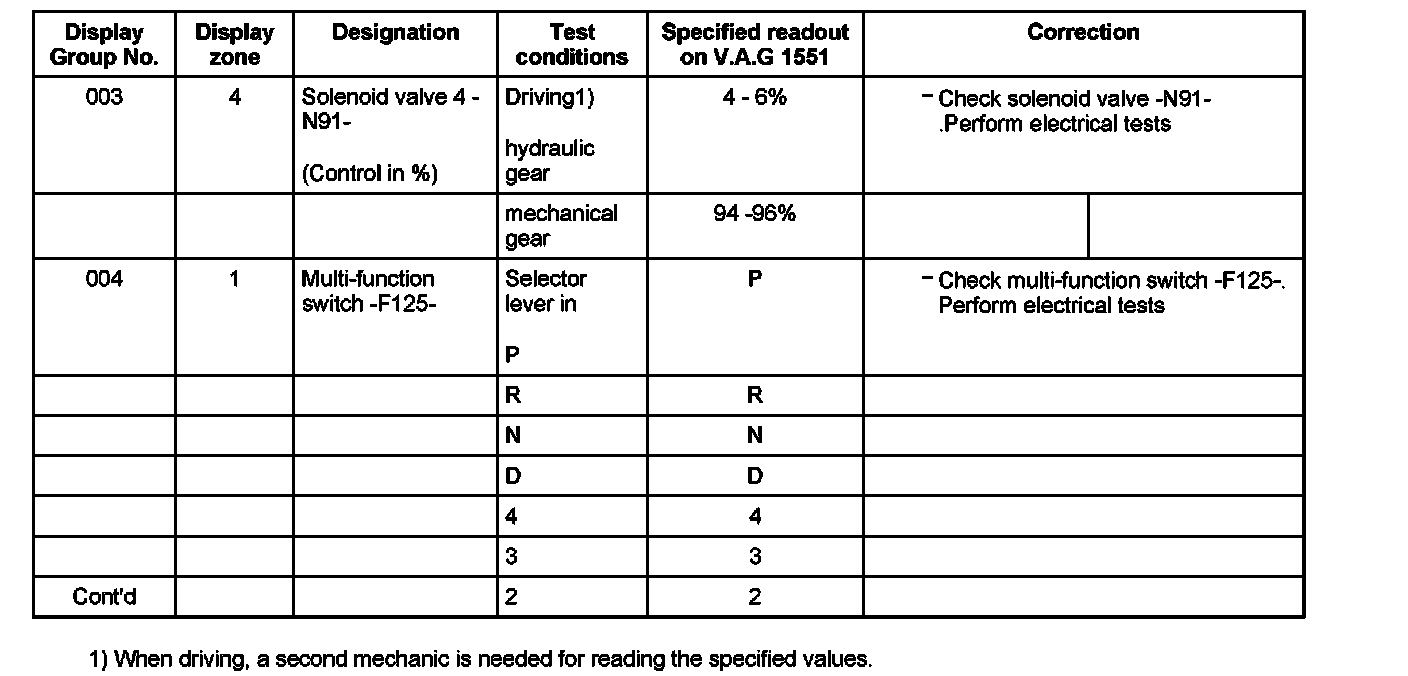

Display Group Number 003, Display Field (2):

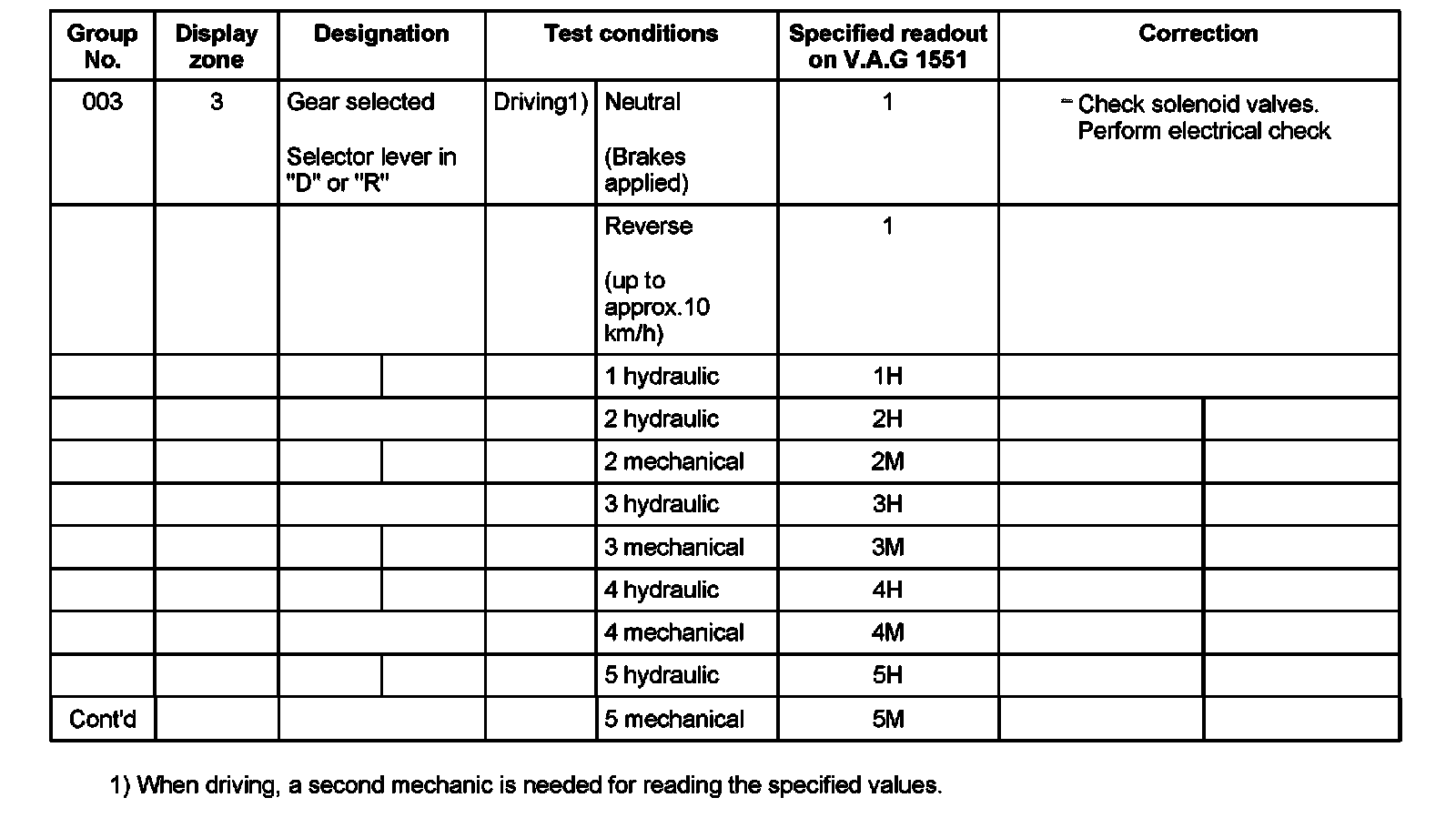

Display Group Number 003, Display Field (3):
