Display Group Number 001



09A, 5 Spd. A/T

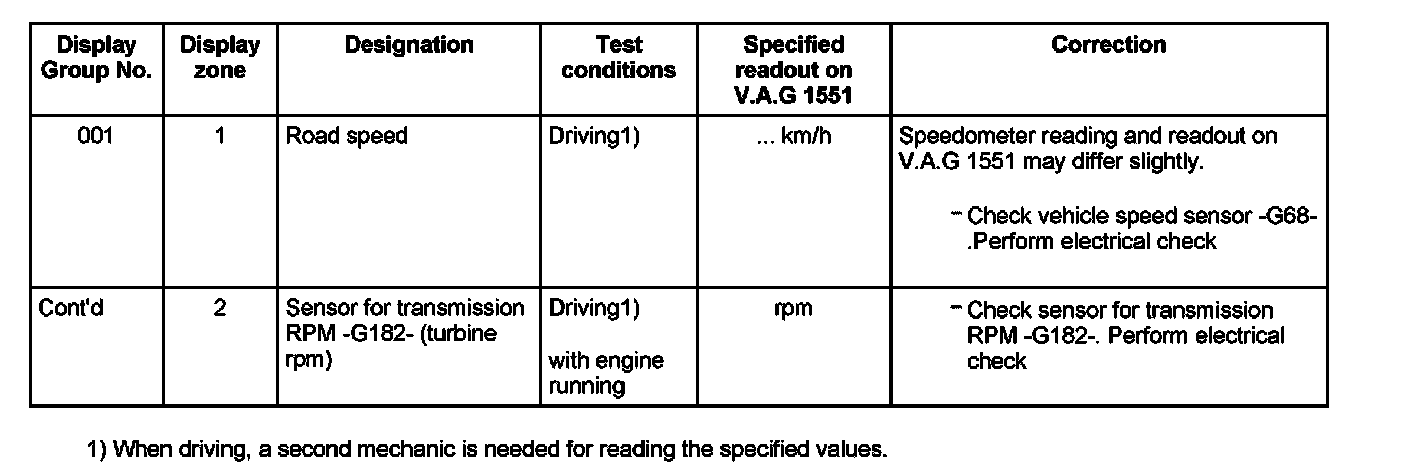

Display Group Number 001, Display Field (1-2):

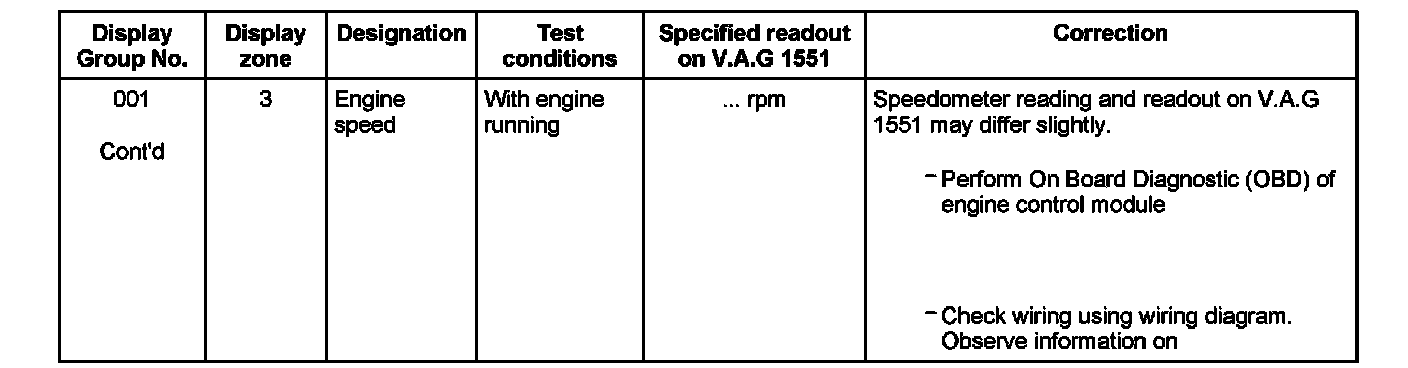

Display Group Number 001, Display Field (3):

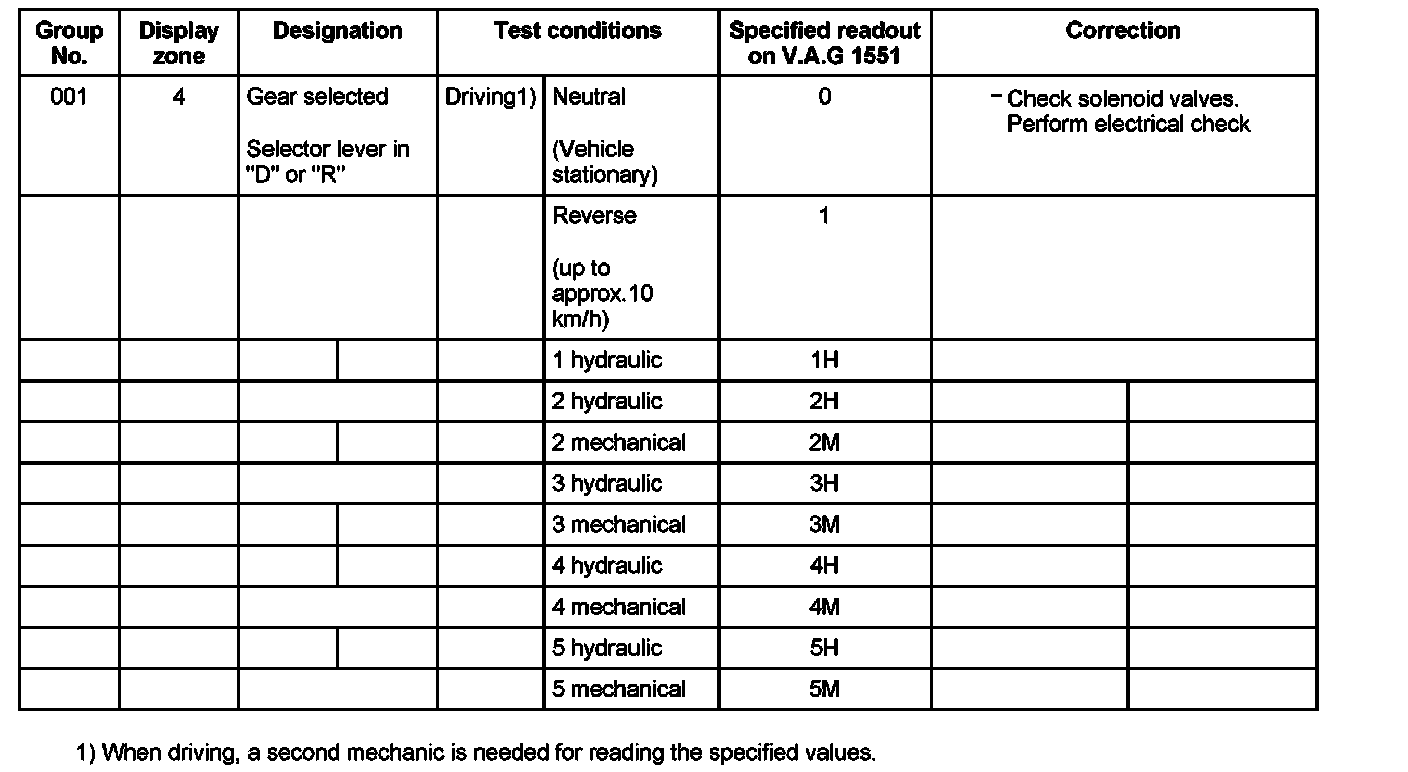

Display Group Number 001, Display Field (4):
