Shift Interlock Cable: Adjustments

Locking cable, adjusting, 09A, 5 Spd. A/T

CAUTION: The description below for the adjustment of the locking cable must be strictly adhered to.

Adjustment requirements
^ Locking cable correctly fitted
^ Center console removed
^ Selector lever in position "P"
^ Ignition key in removal position

Adjustment sequence
^ Steering wheel is in rear/lower position.





- Unscrew bolt from support bracket.

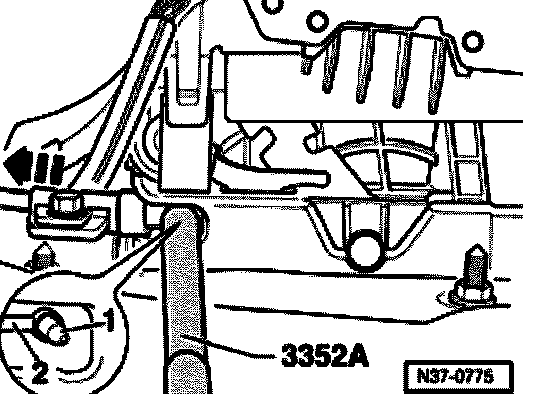

- Position locking cable adjustment gauge 3352 A between locking lever -1- and locking cable eye -2-.
- To take up play, pull support bracket onto stop in direction of arrow.
- Locking cable adjustment gauge 3352 A must be easy to remove and insert in this position.





- Tighten bolt on support bracket (10 Nm).
- Remove adjustment gauge.
- Check operation of ignition key withdrawal lock.
