Locking Cable For Ignition With Key Withdrawal Lock, Removing and Installing

Locking cable for ignition with key withdrawal lock, removing and installing

Only vehicles with automatic transmission
Adjust locking cable.

Removing
- Remove steering wheel.
- Remove trim for steering column switch.
- Shift selector lever into position P if necessary.

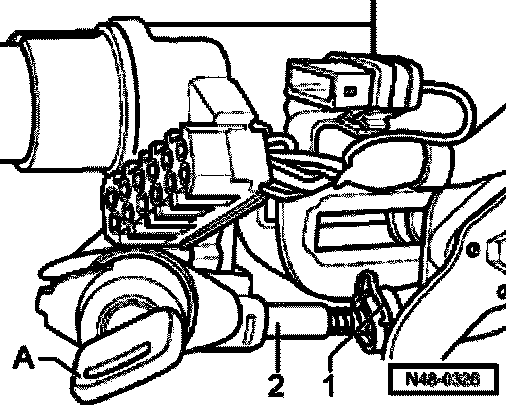

- Turn ignition key - A - to ignition on position.
- Press wire clip - 1 - up or down according to installation position and pull at the same ignition lock cable - 2 - out at the same time.

Installing
- Shift selector level into P position.





- Turn ignition key - A - to ignition on position.
- Push lock cable - 2 - into steering lock housing until wire clip - 1 - engages.
