Left Front Level Control System Sensor G78 on Front Axle

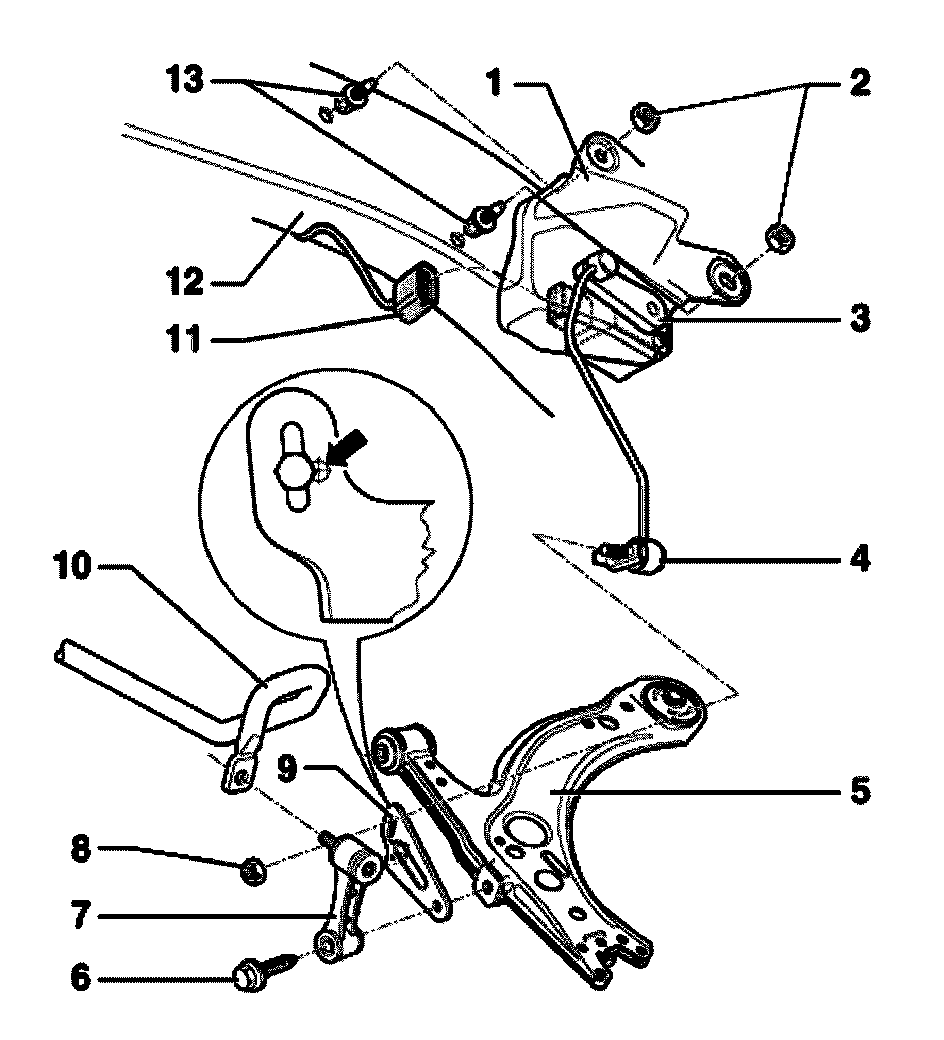

Left front level control system sensor G78 on front axle





1 - Bracket
2 - Hex nut, 6 Nm
3 - Level control system sensor G78
^ Check electrically using On Board Diagnostics (OBD)
^ When complaints are received Perform basic setting in Guided Fault Finding with the VAS 5051. For this, use the Go to button in the Functions/Component selection.

4 - Connecting Left front level control system sensor G78
5 - Control arm
6 - Hex bolt
^ 15 Nm plus an additional 1/4 turn 90°
^ Always replace

7 - Connecting Link
^ Different versions

8 - Hex nut, 6 Nm
9 - Bracket
10 - Stabilizer bar
11 - Connector
12 - Side rail
13 - Pop rivet screw
Draw in pop rivet using Pop Rivet Tongs V.A.G. 1765 B.
