Home >> Volkswagen >> 2006 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Connector Station C-Pillar (Jetta)

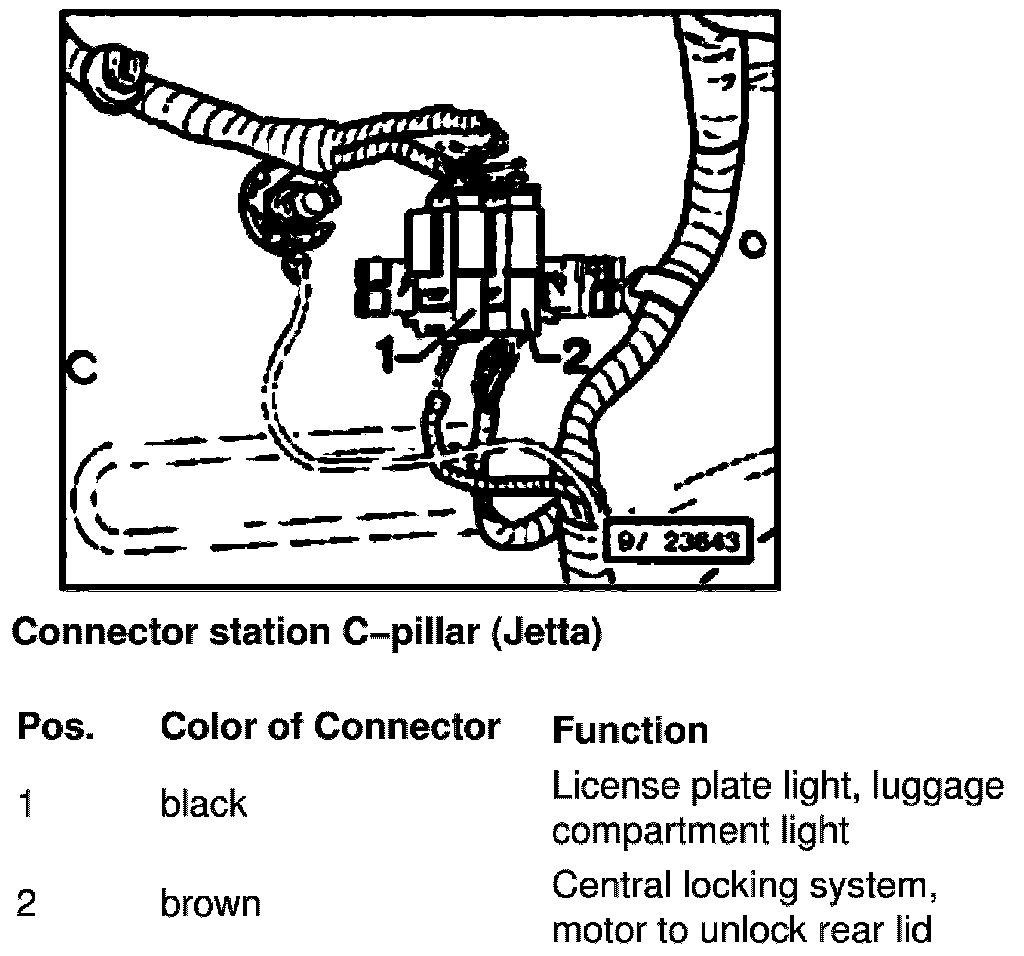

Connector Station C-Pillar (Jetta)

Connector Station C-Pillar (Jetta):
