A-Pillar Coupling Station

A-Pillar Coupling Station

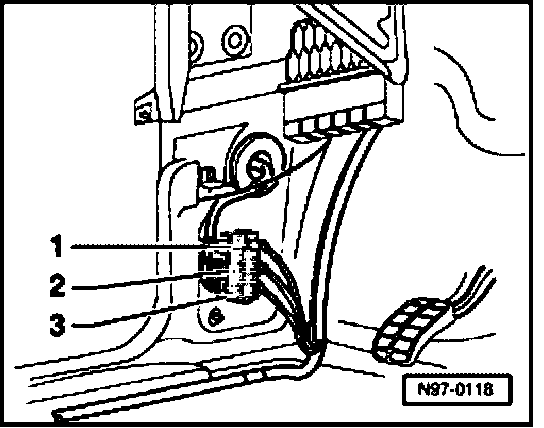

NOTE: Driver's side A-pillar coupling station is illustrated. The front passenger side A pillar is a mirror image.







The coupling station is located in the front left footwell behind the footwell trim.

1. Central locking
2. Power window regulator, red
3. Power mirror adjustment, blue
