Front Suspension

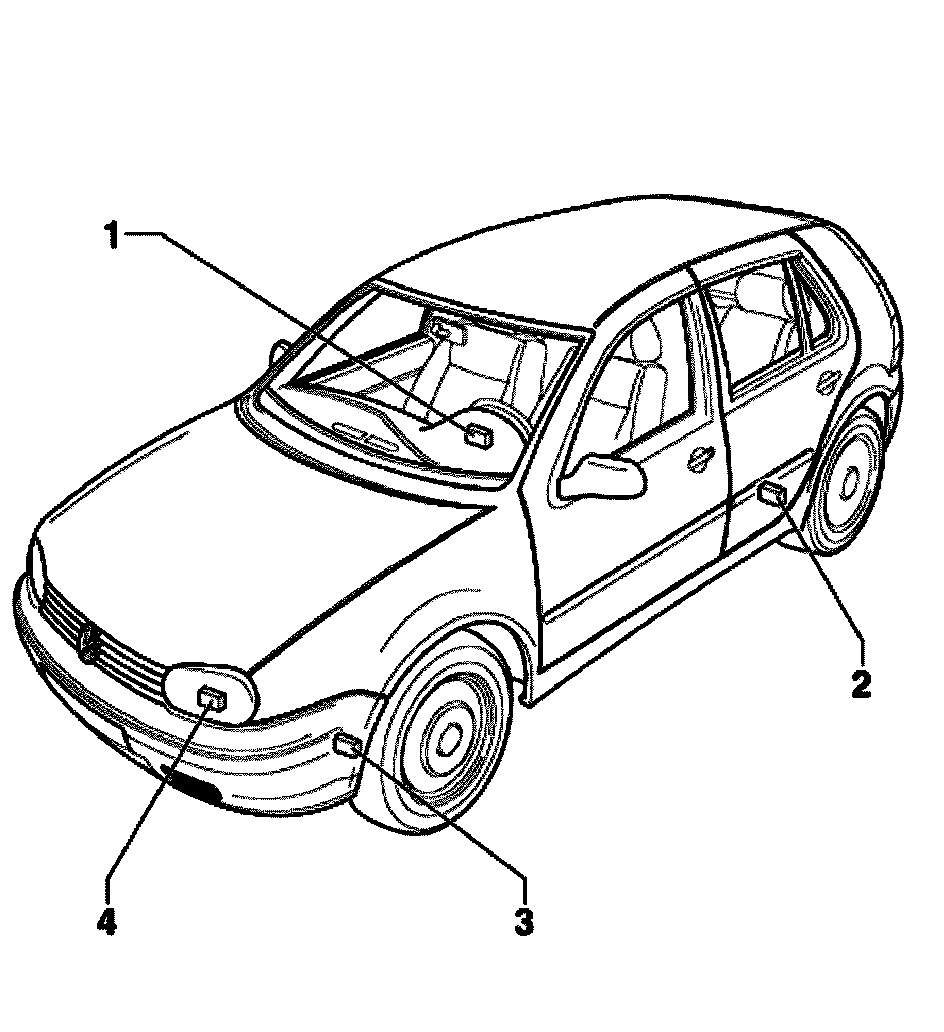

Electrical/electronic components and installation locations





1 - Steering angle sensor G85
2 - Left rear level control system sensor G76 on the rear axle
3 - Left front level control system sensor G78 on front axle
4 - Headlight range control module J431
