Electrical/Electronic Components and Locations

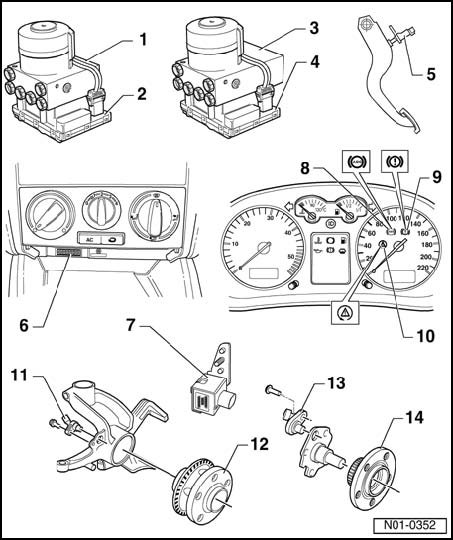

Electrical/electronic components and locations





11- Right/left front ABS wheel speed sensor -G45-/-G47-
^ Before inserting the sensor clean the inner surface of the sensor mounting and coat with lubricating paste G 000 650
^ Bolt tightening torque - 10 Nm
12- Wheel hub with impulse rotor for right/left front speed sensors
^ Rotor and speed sensors for front left and right-hand sides are identical





13- Right/left rear ABS wheel speed sensor -G44-/-G46-
^ Before inserting the sensor clean the inner surface of the sensor mounting and coat with lubricating paste G 000 650
^ Bolt tightening torque - 10 Nm
14- Wheel hub with impulse rotor for right/left rear speed sensors
^ Rotor and speed sensors for left and right-hand sides are identical
