Electrical/Electronic Components and Installing Locations (ABS) Mark 60

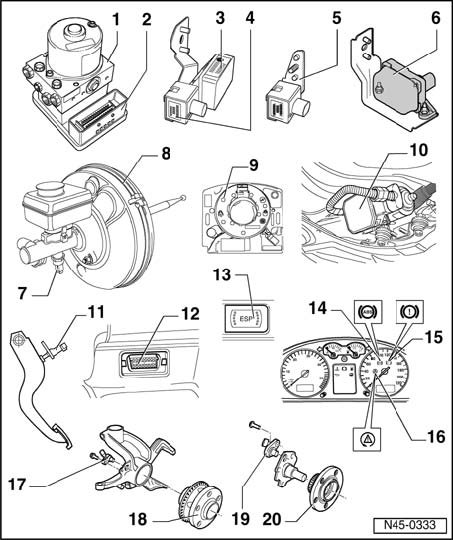

Electrical/electronic components and installing locations (ABS) Mark 60





17- Right/left front speed sensor -G45-/-G47-





18- Wheel hub with rotor for speed sensors
19- Right/left rear speed sensor -G44-/-G46-
20- Wheel hub with rotor for speed sensors
