Fuel Door Lock Switch: Service and Repair

Remote Fuel Filler Flap Release Switch -E204-, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

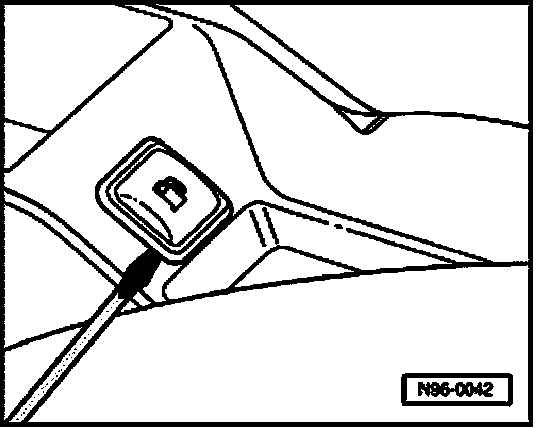

- Place screwdriver behind switch housing and carefully pry out of retainer.
- Disconnect electrical connection.

Installing
Install in reverse order of removal.
