Transmission Position Relay: Service and Repair

Fig. 8 Park/Neutral position (PNP) relay -J226-, 09A, 5 Spd. A/T





Location
The relay is located on the additional relay carrier under the instrument panel, left.
Relay is marked with number 175 (arrow).

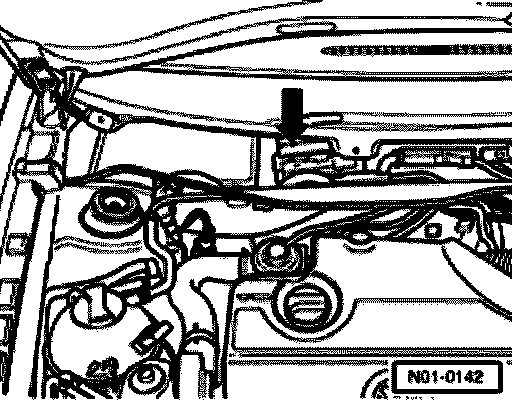

Location of Transmission Control Module -J217-





The control module (arrow) is located in the plenum chamber center/right.

Removing control module
- Switch ignition off, open hood.
- Remove wiper arms and cowl panel:

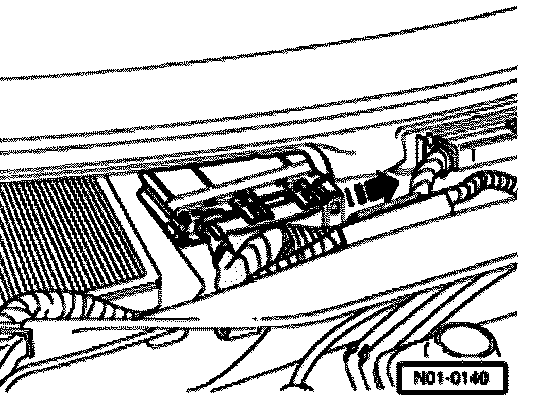

- Release multi-pin connector, then disconnect connector from control module.

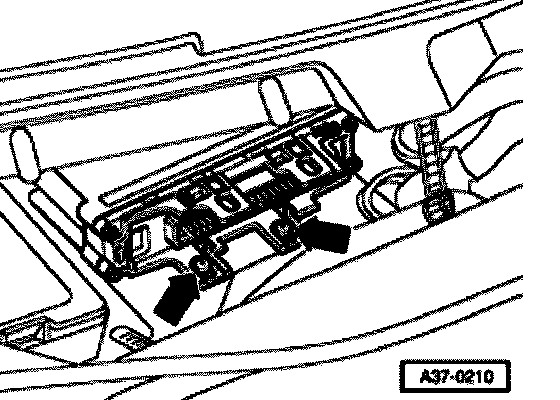

- Remove screws (arrows).
- Remove control module.

Installing control module
Installation is performed in the reverse order of removal.

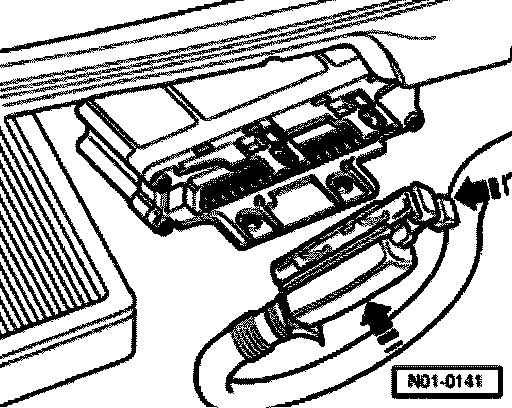

- Locate multi-pin connector on control module -J217- pins (arrows) then lock multi-pin connector.
- Perform On Board Diagnostic (OBD).
- Initiate basic setting.
