Electronic Throttle Actuator Position Sensor
>>
Locations
>>

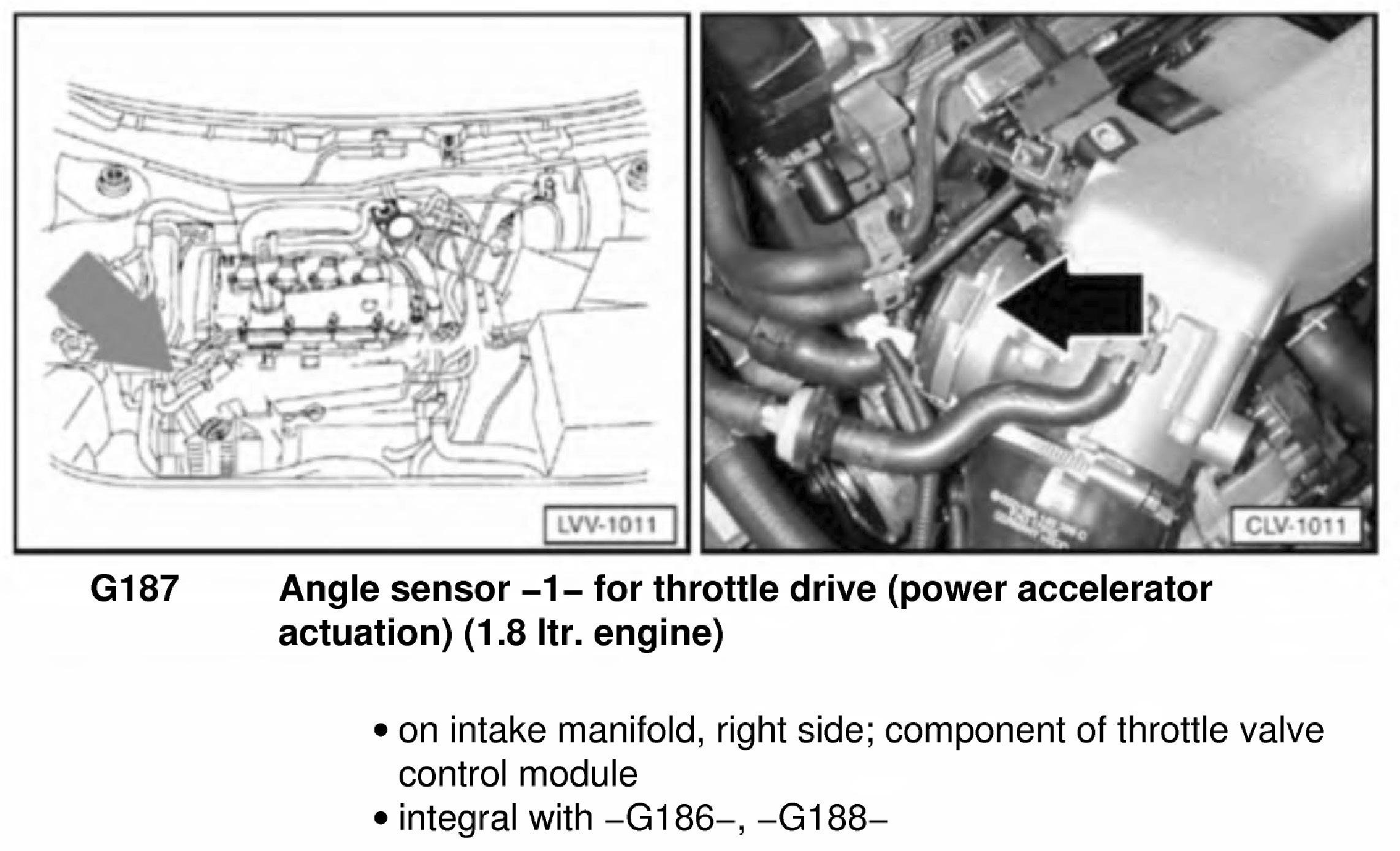

Angle Sensor 1 For Throttle Drive (Power Accelerator Actuation) G187
Angle Sensor 1 For Throttle Drive (Power Accelerator Actuation) G187
Angle Sensor 1 For Throttle Drive (Power Accelerator Actuation) G187:
