Headlights, Removing and Installing



Headlights, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove front bumper cover

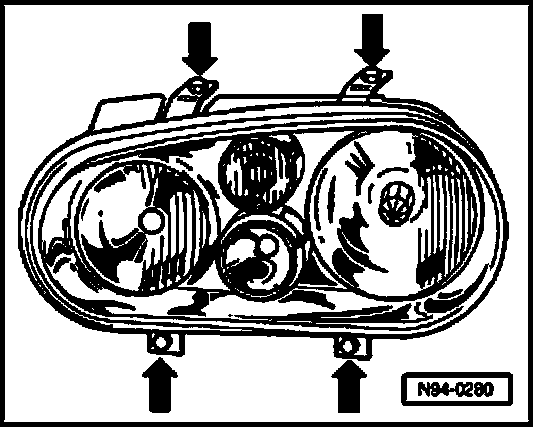

- Remove mounting screws -arrows-.
- Pull headlight housing out as far as electrical harness allows.
- Disconnect electrical connections.
- Remove headlight housing.

Installing
Install in reverse order of removal.
- Check and adjust headlight if necessary.
