Master Diagram Index
>>
Complete Index
Complete Index

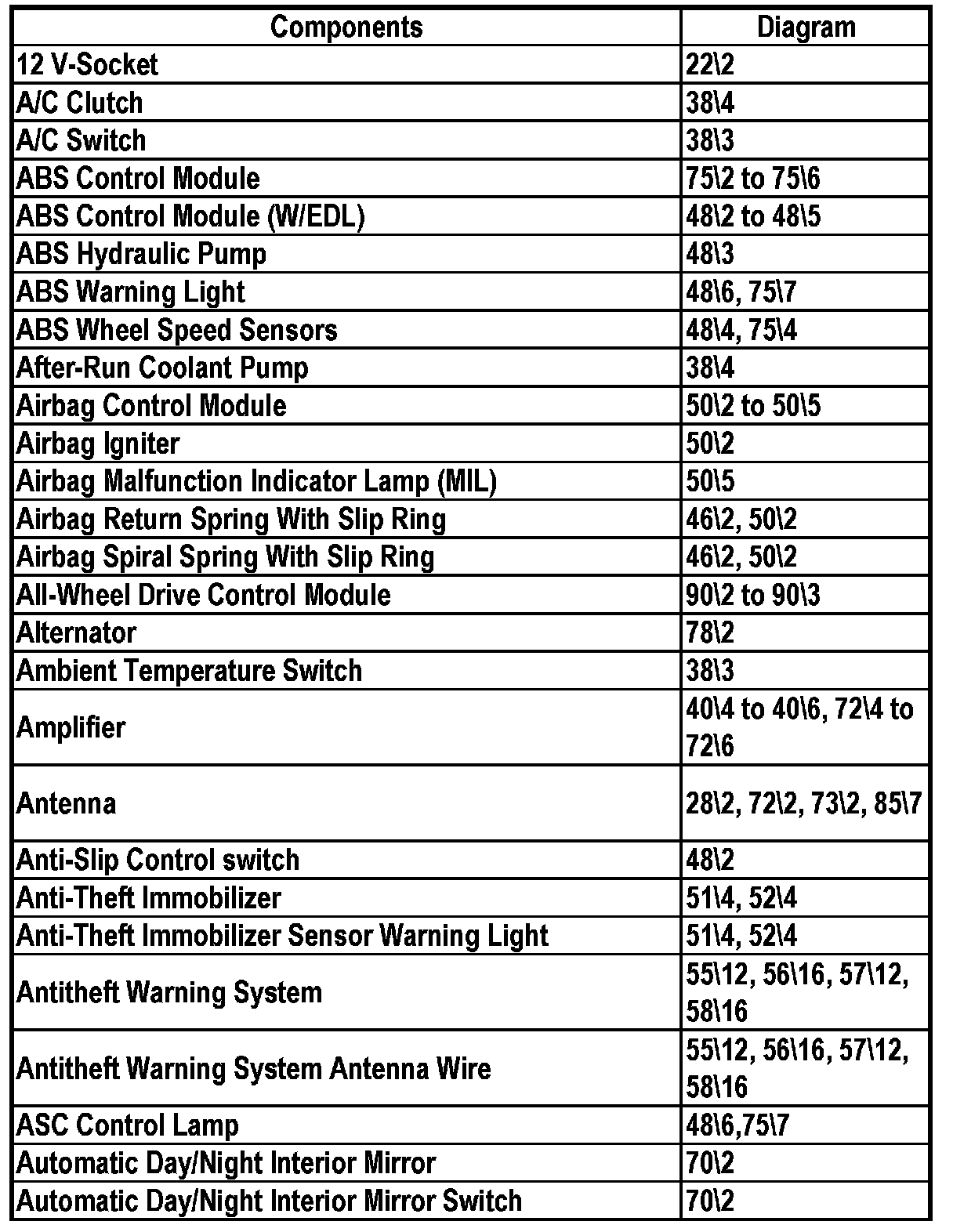

12V - Au:

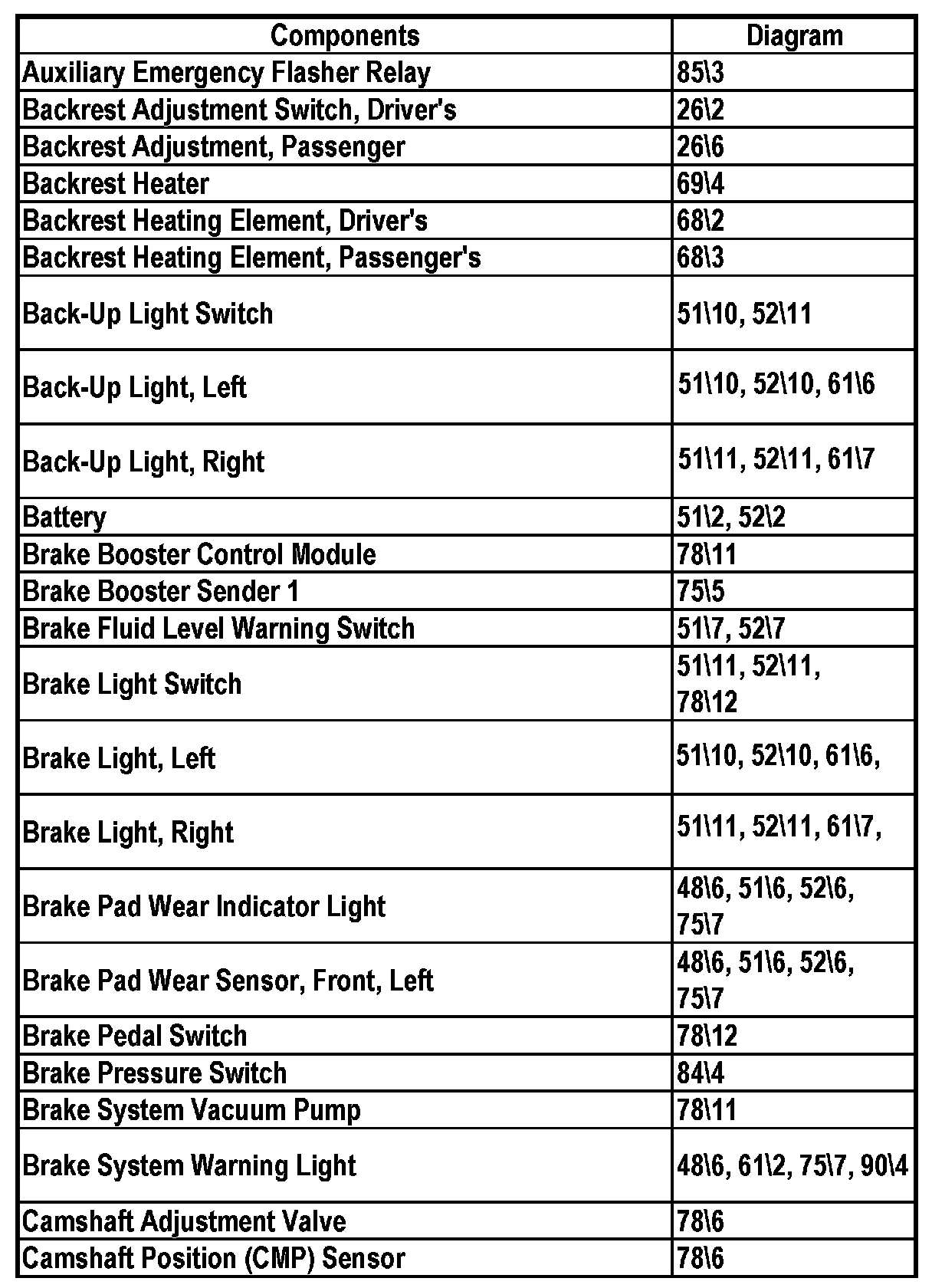

Au - Ca:

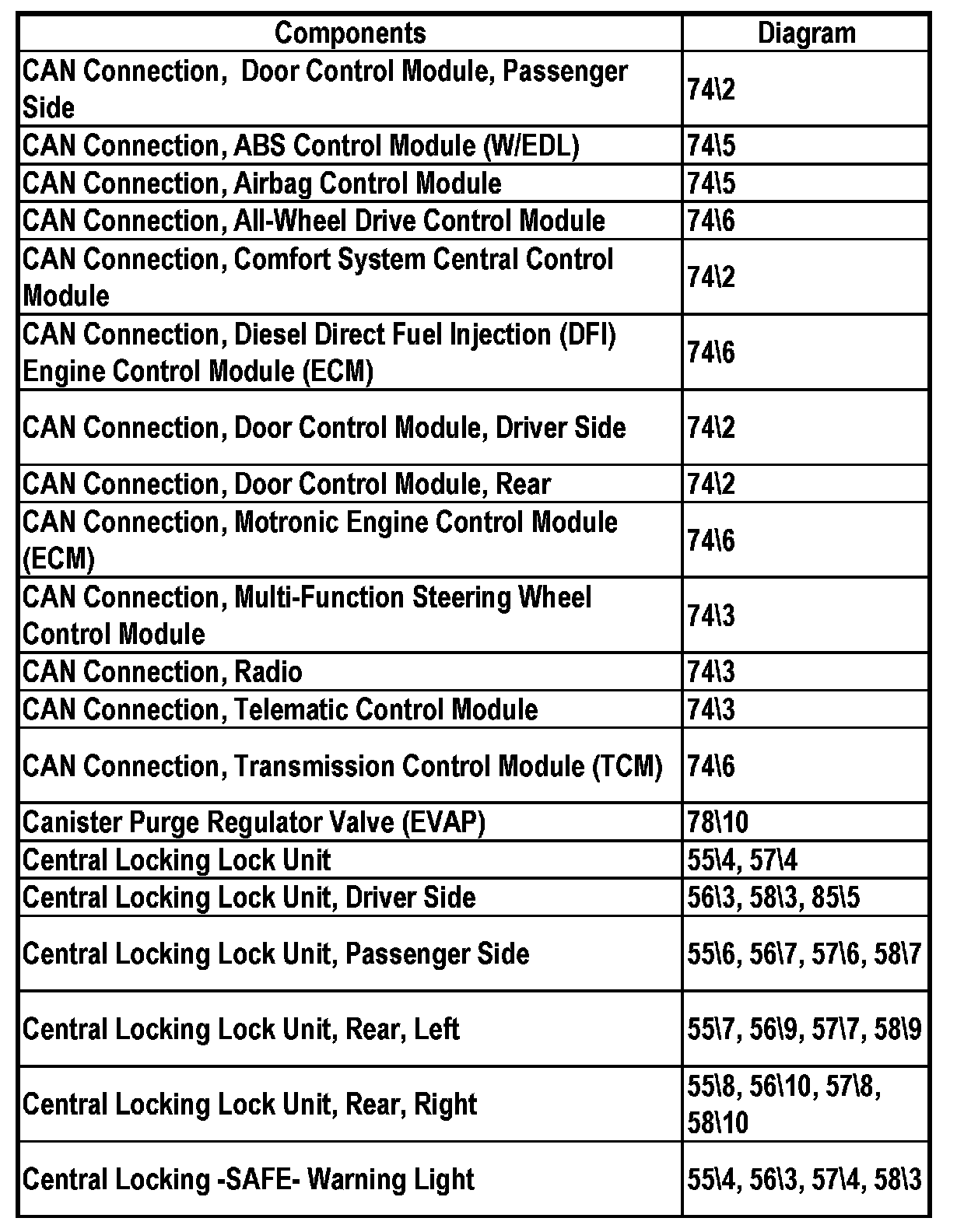

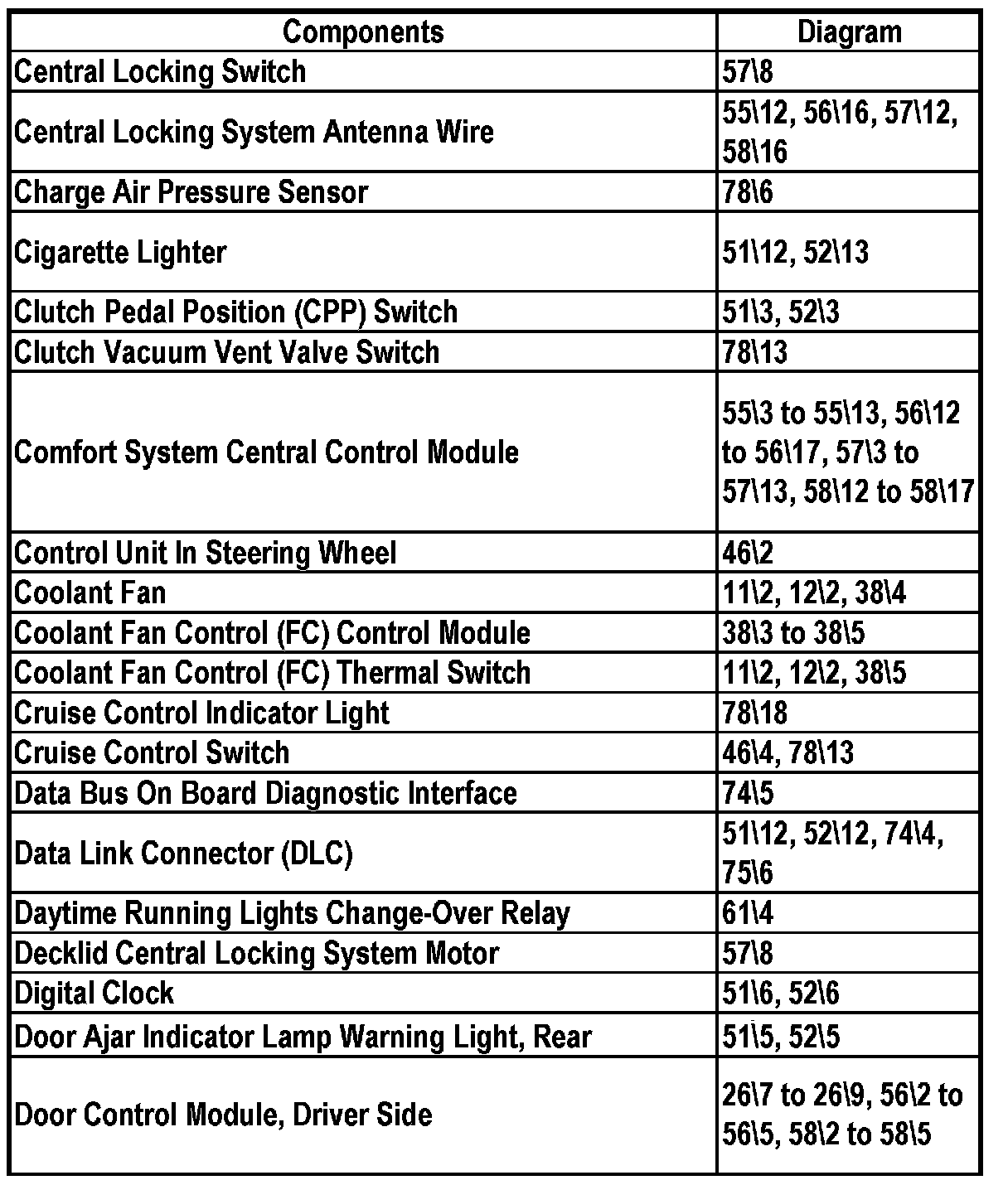

CAN - Ce:
Ce - Do:

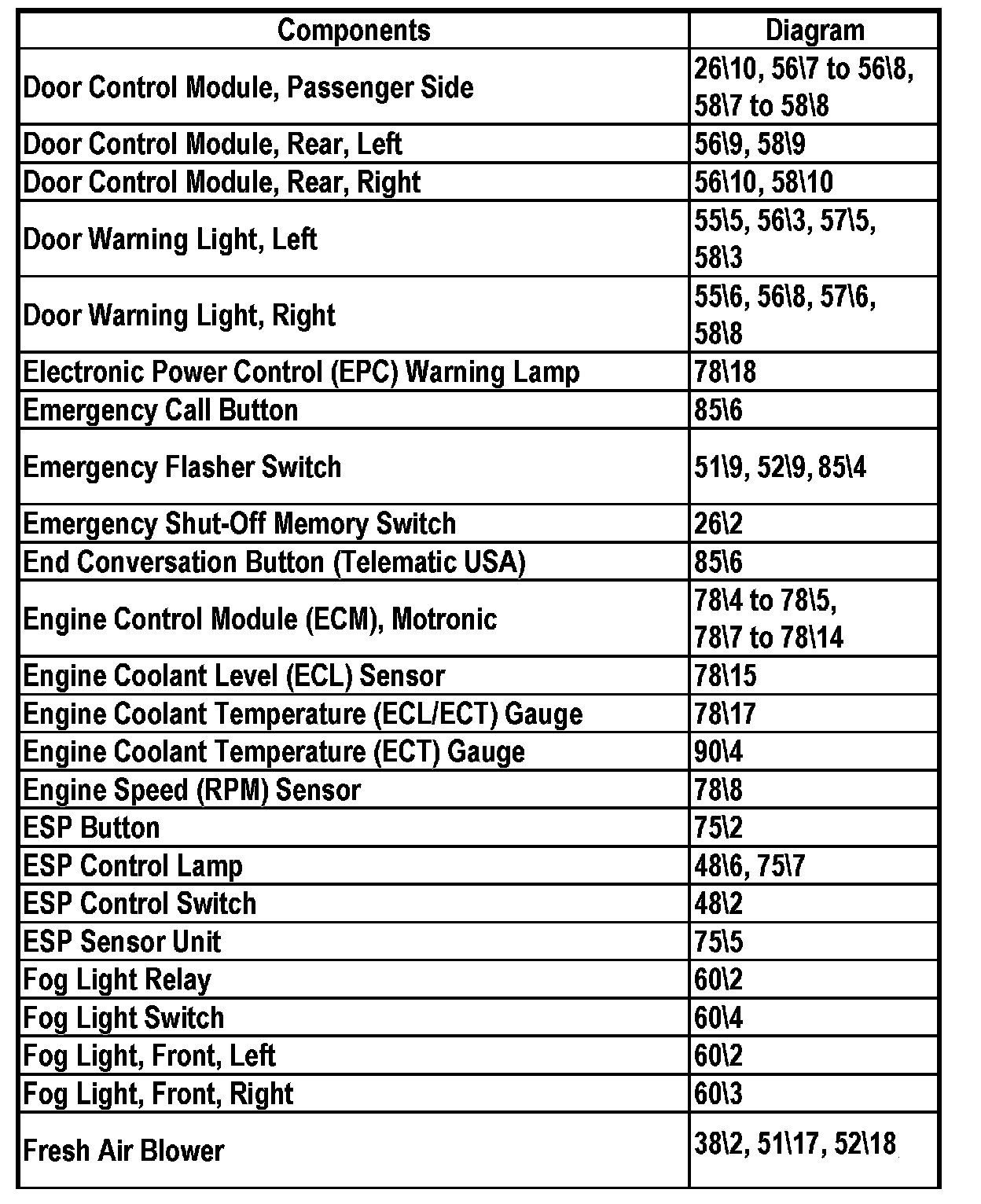

Do - Fr:
Fr - He:

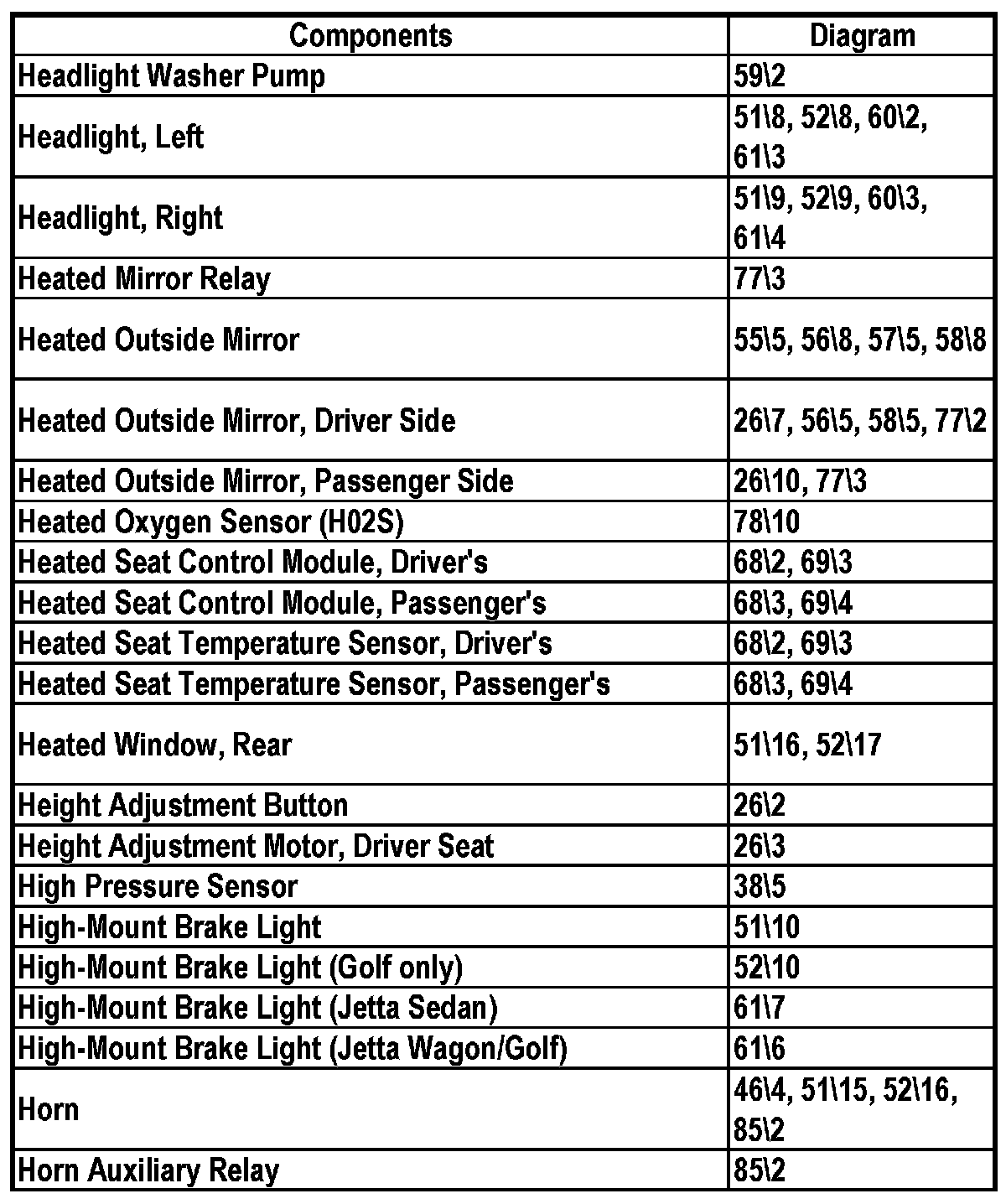

He - Ho:

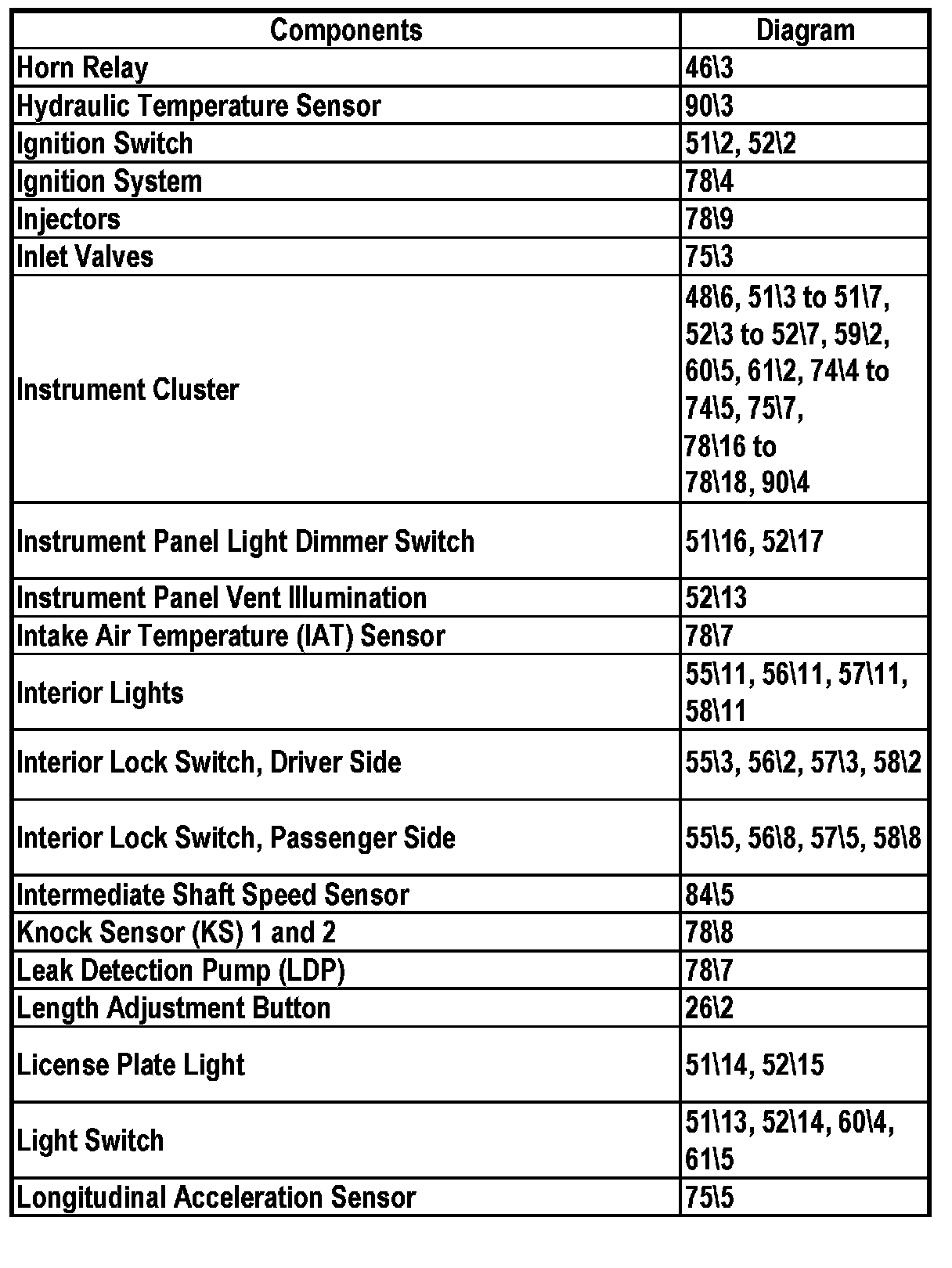

Ho - Lo:

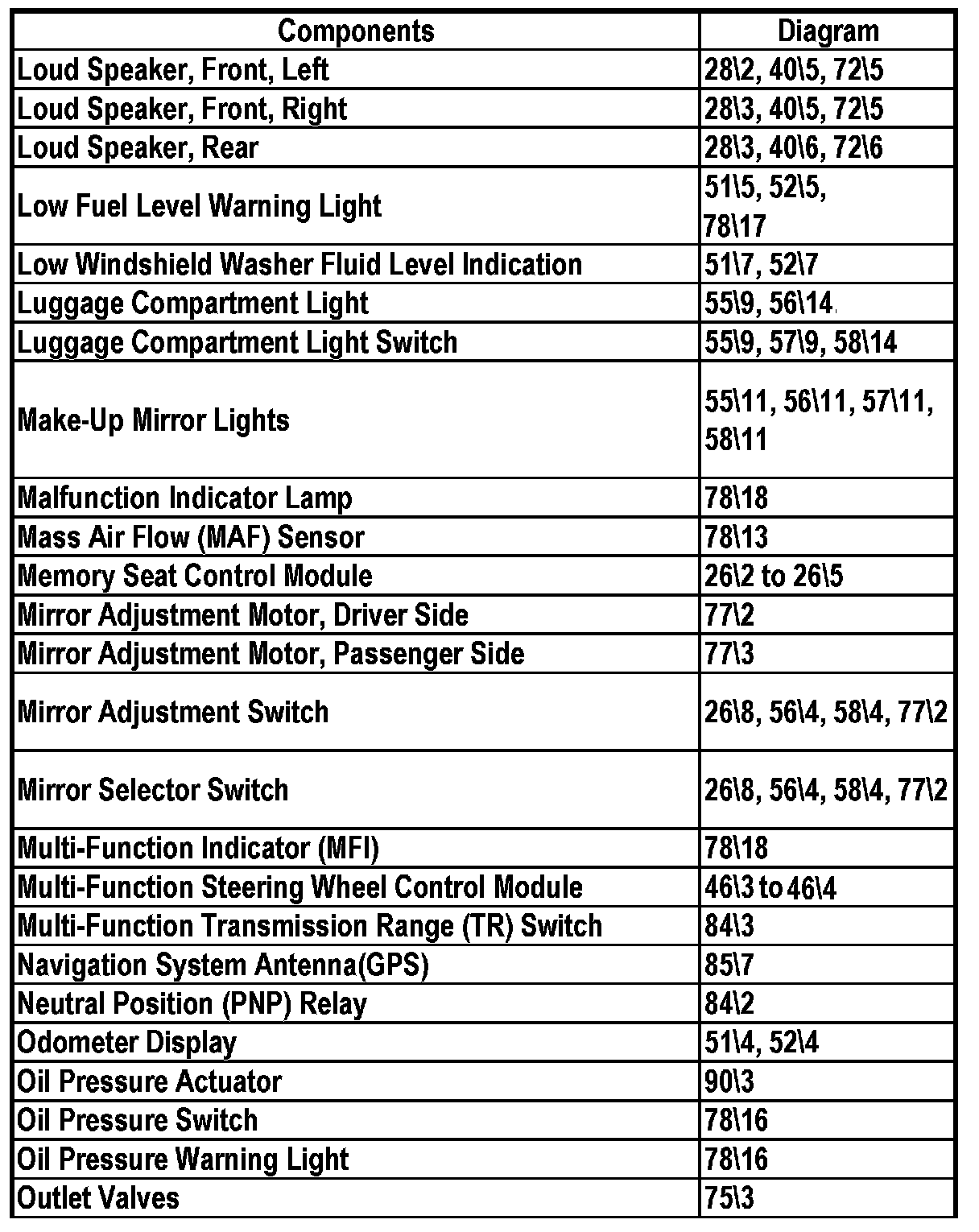

Lo - Ou:

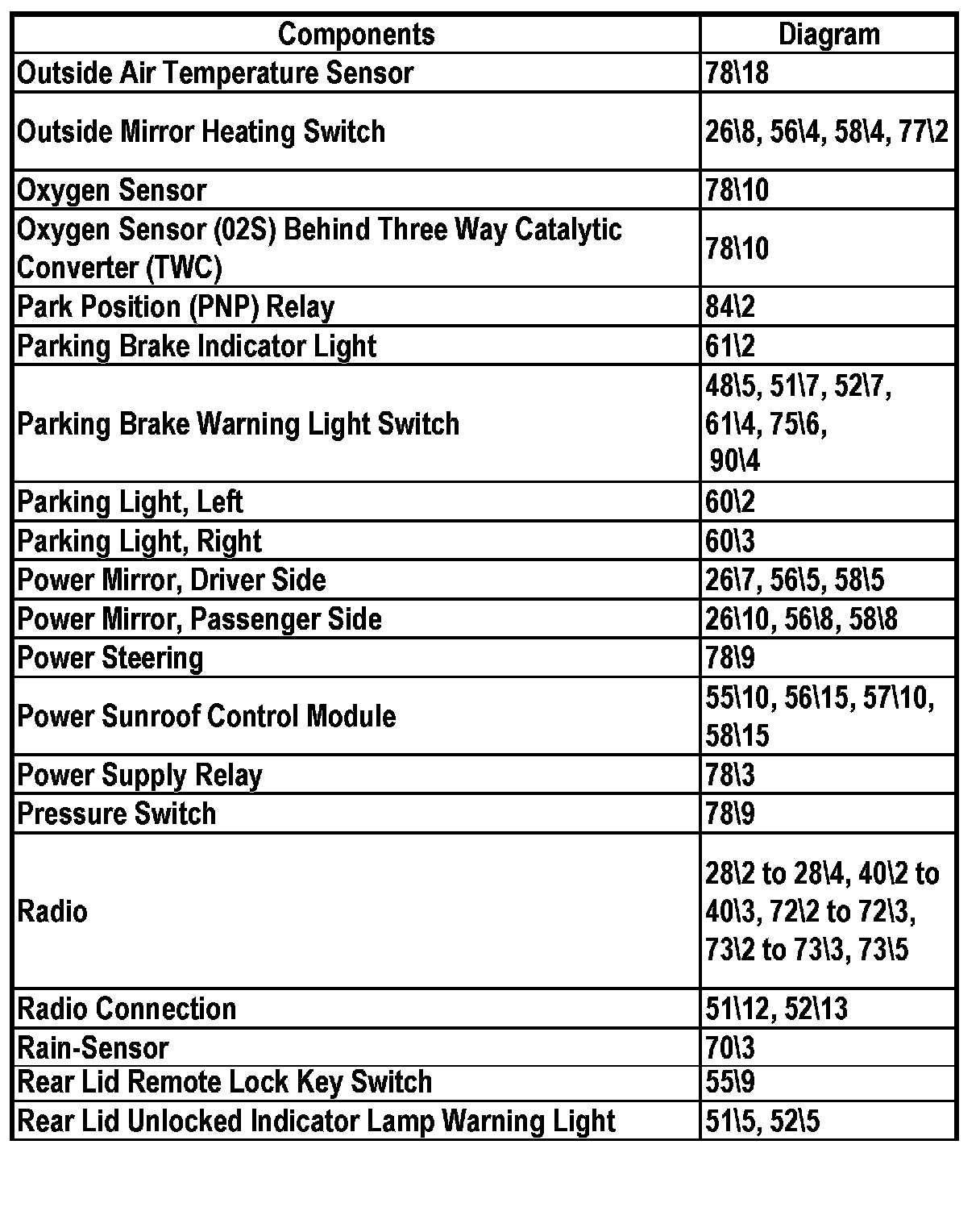

Ou - Re:

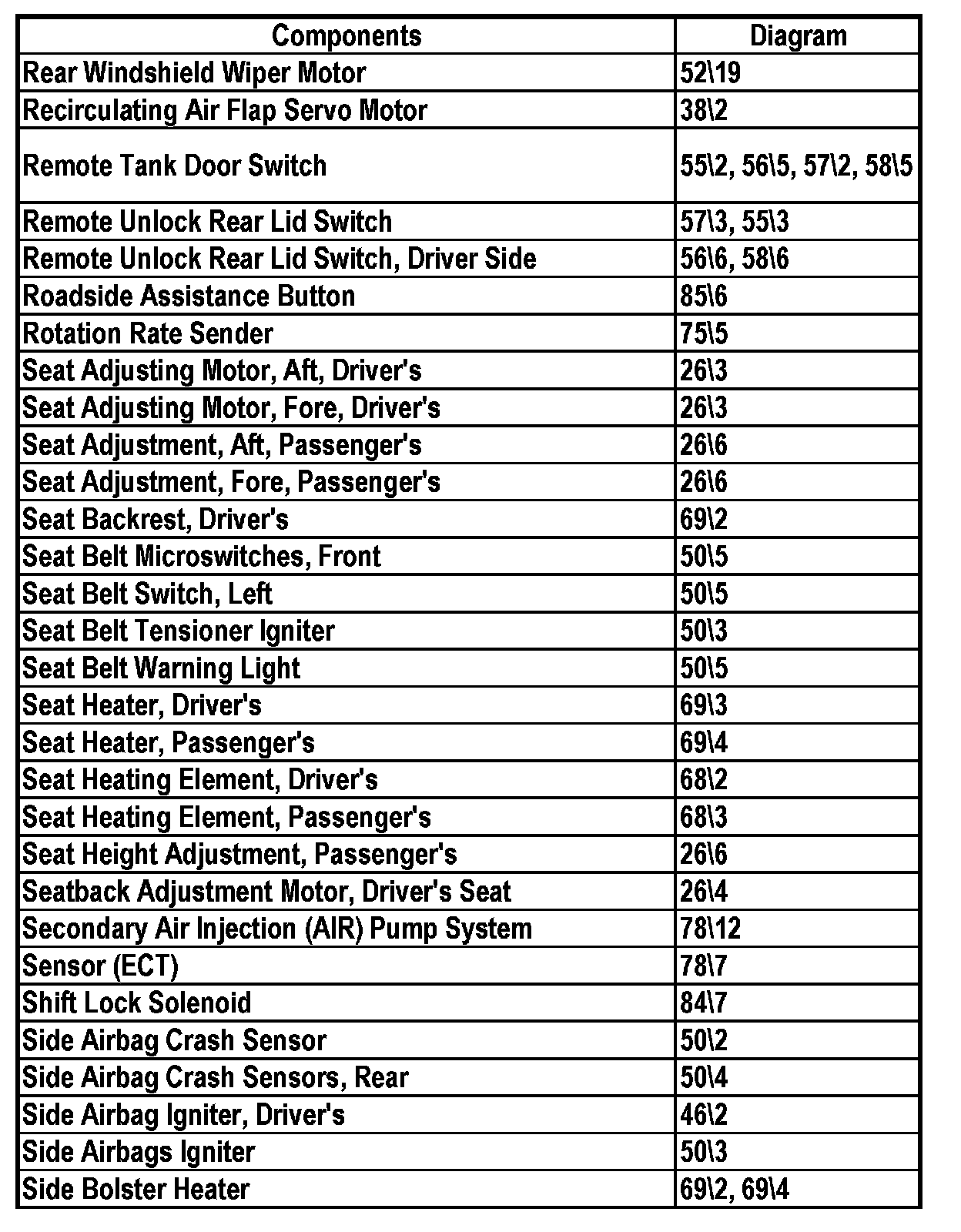

Re - Si:

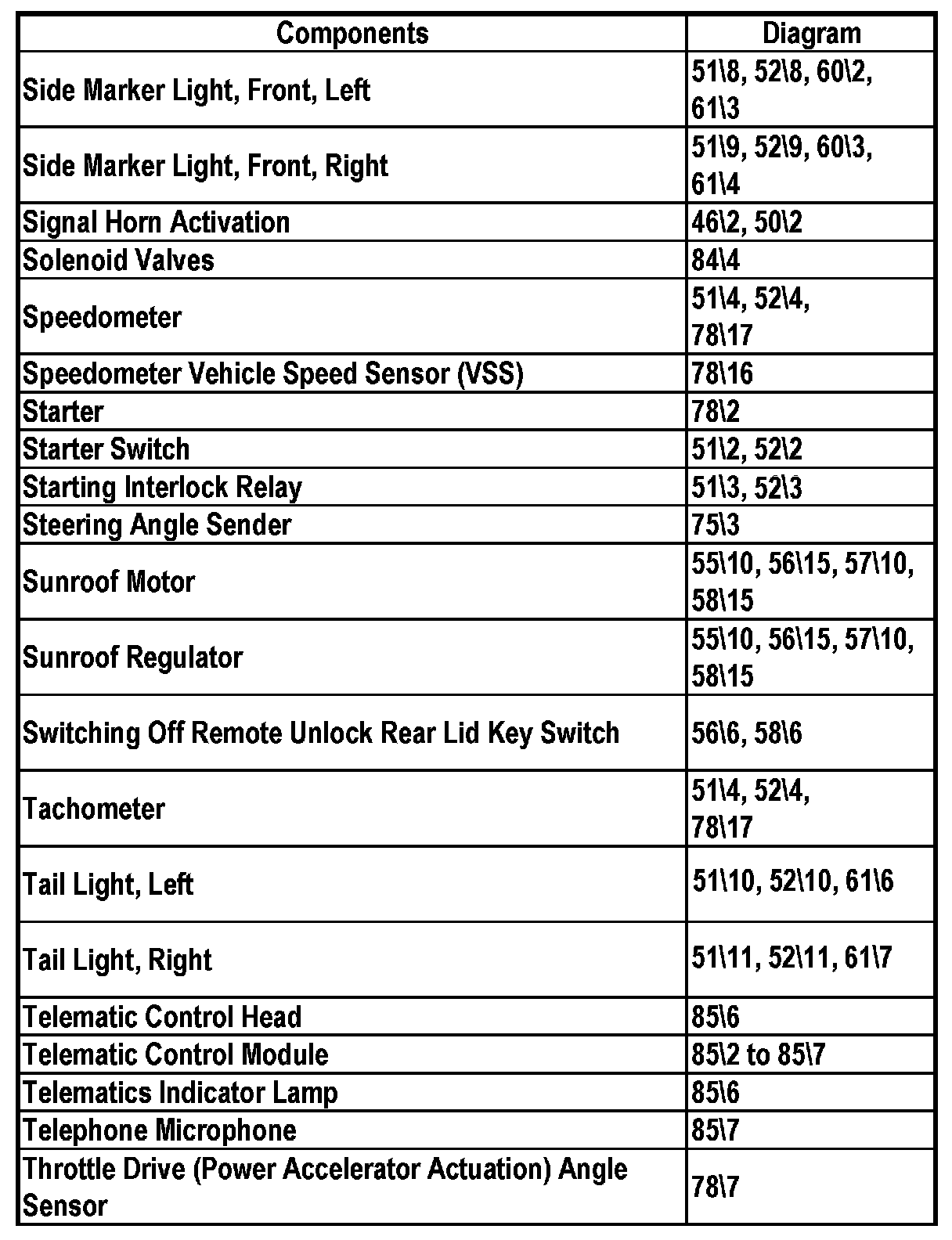

Si - Th:

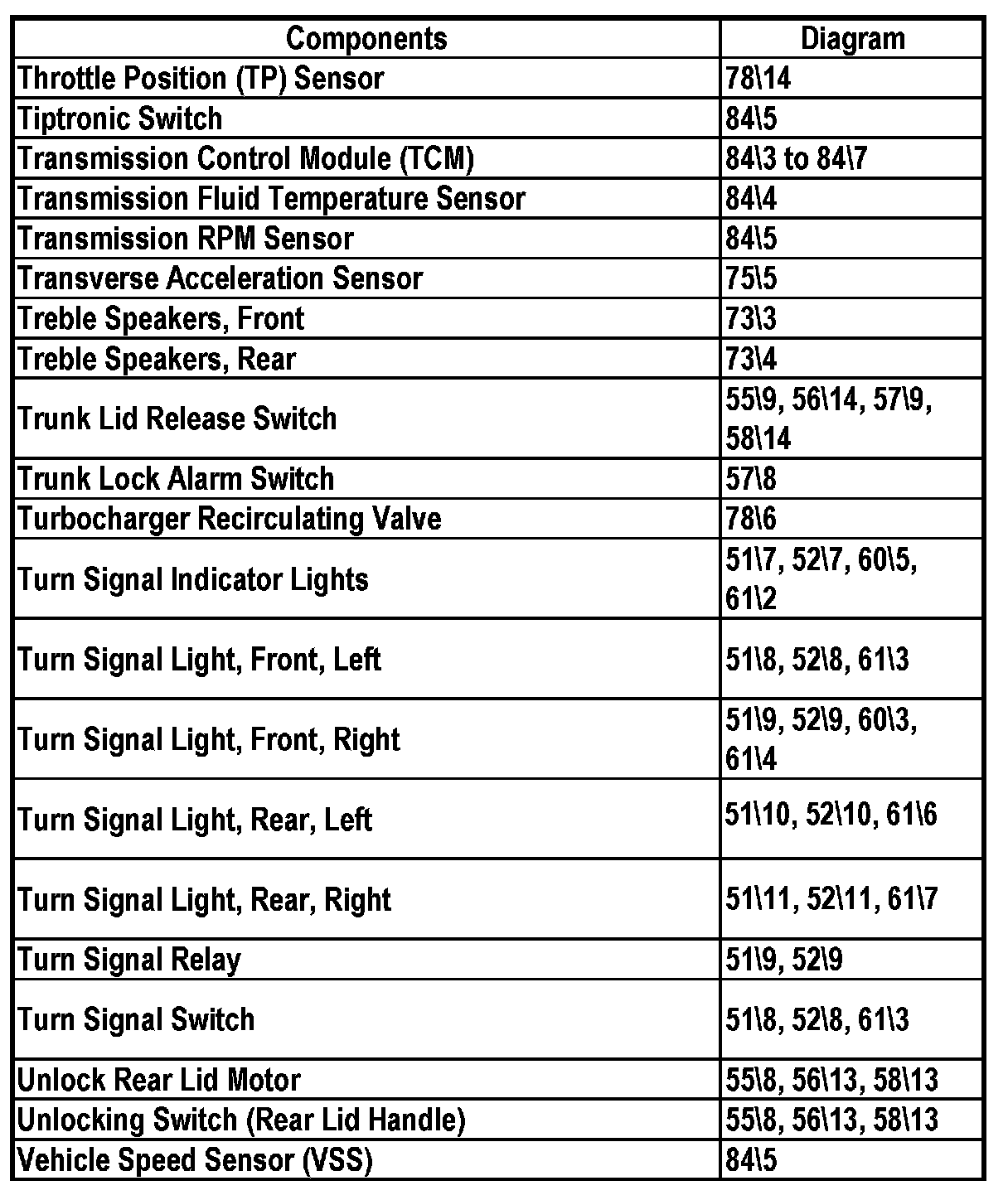

Th - Ve:

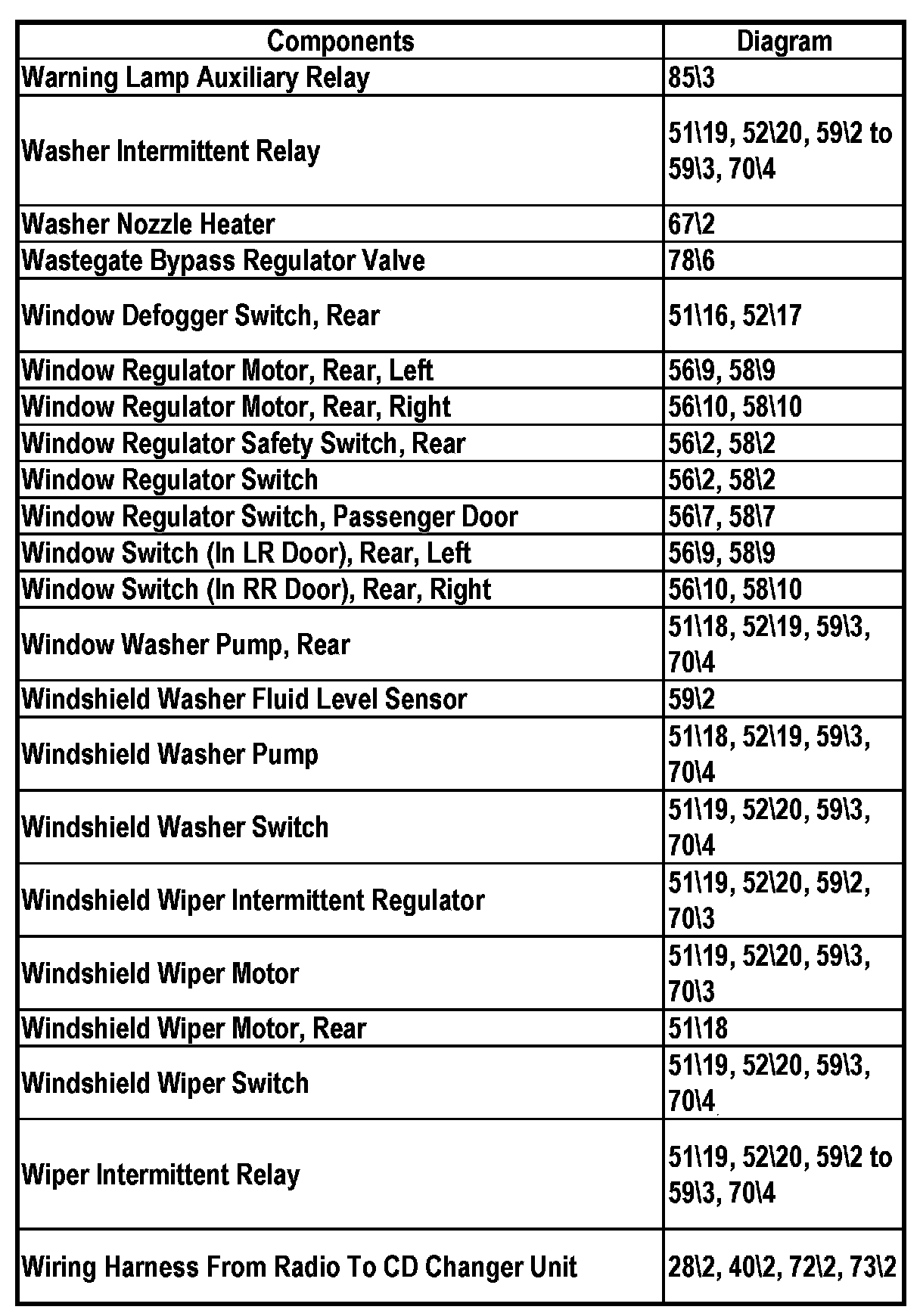

Wa - Wi:
