Test Table (Test Steps 1 - 16)

Test table (test steps 1 - 16)

Note on test table
^ The socket designations of adapter V.A.G 1598/33 are identical to the ABS control module (w/EDL) -J104- contact designations in wiring diagram.
^ If the readings obtained deviate from the specifications, carry out repair measure in the right-hand part of the table.
^ Continuity checks with adapter set V.A.G 1594 A (bridging).
^ If the measured figures only deviate slightly from the specifications, clean sockets and plugs of the testers and adapter cables (with contact spray G 000 700 04) and repeat check. Before replacing components, check wiring and connections and also, particularly for specifications of less than 10 Ohms, repeat resistance check on the component.

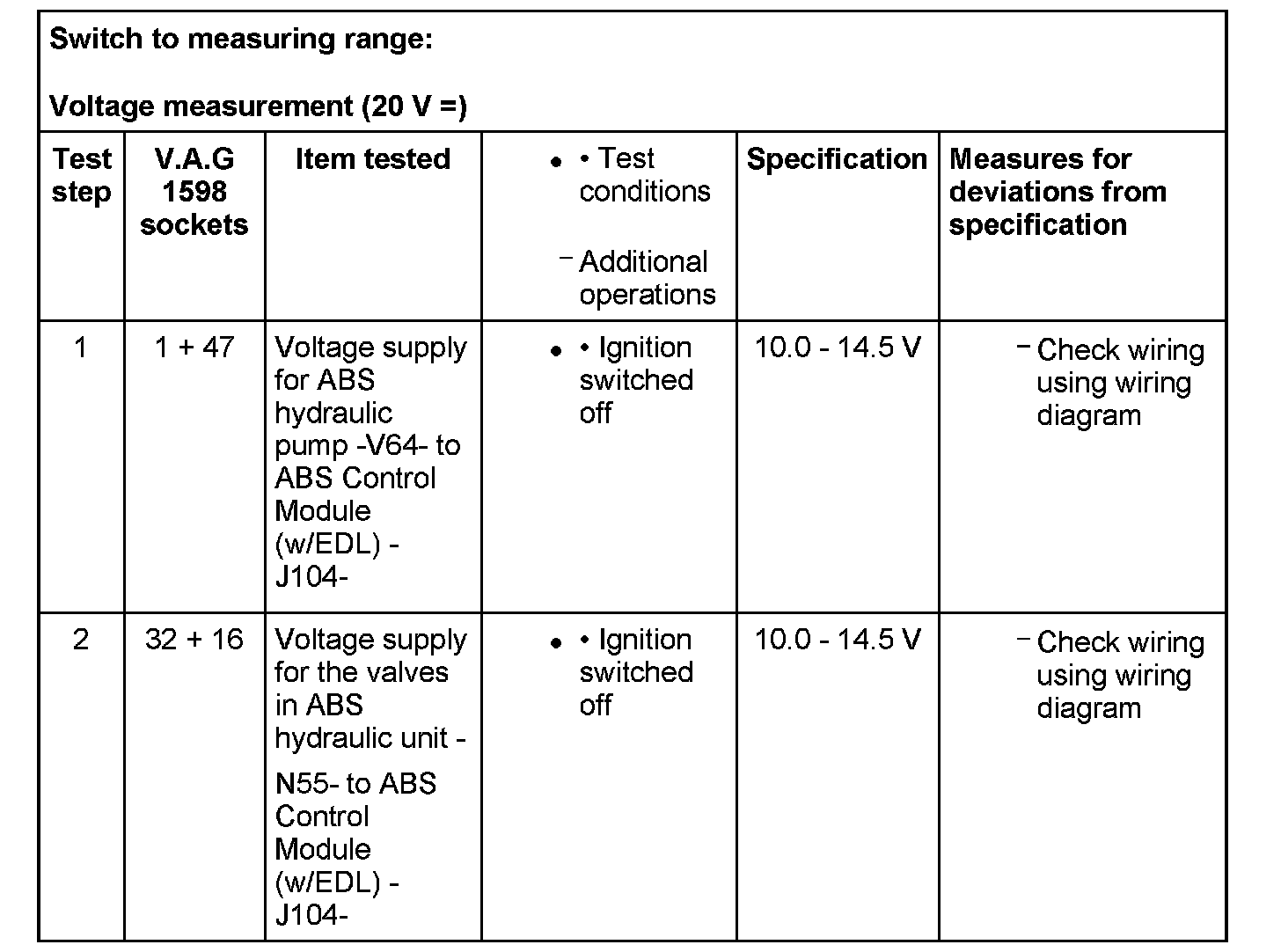

Step 1-2:

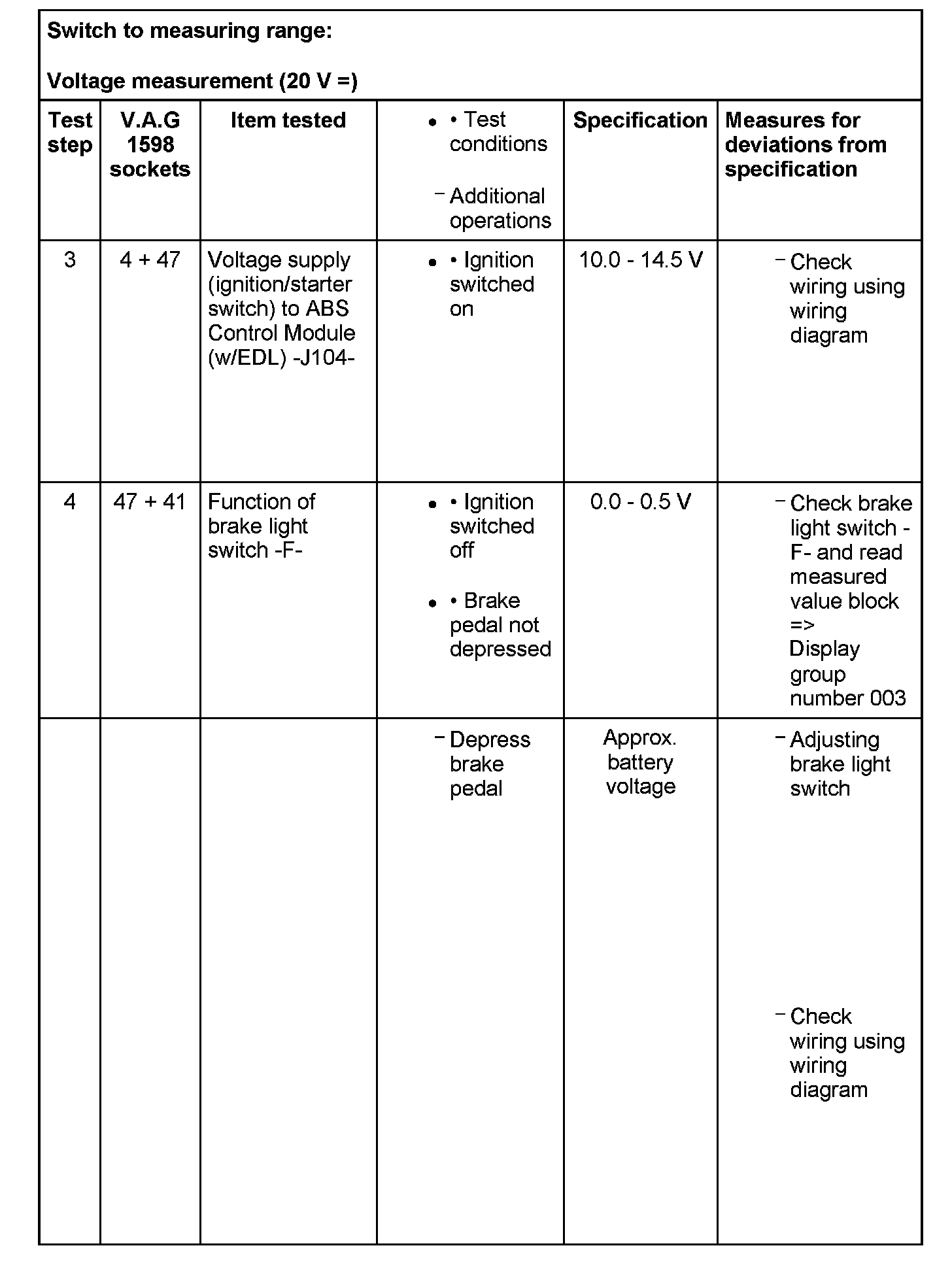

Step 3-4:

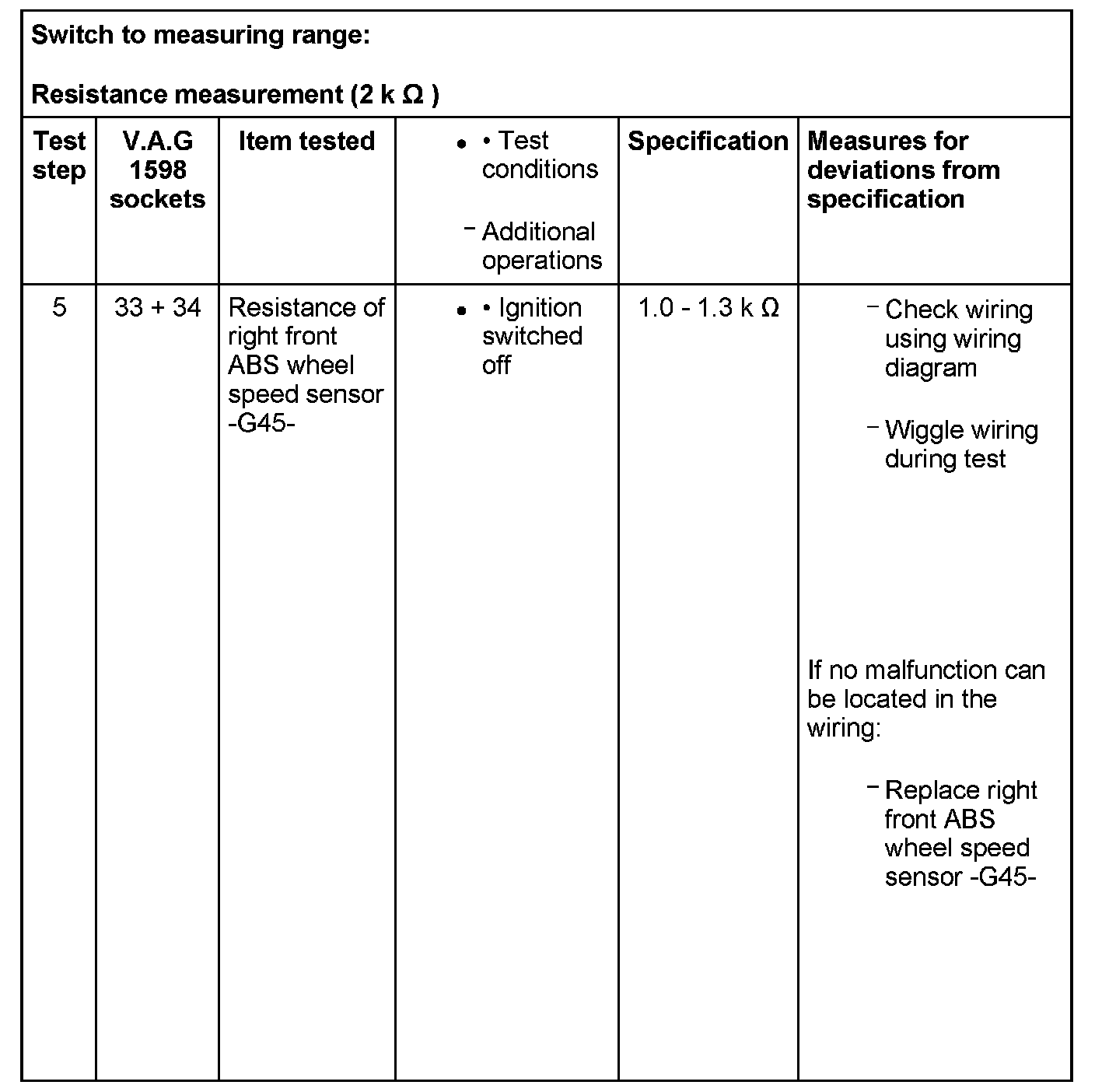

Step 5:

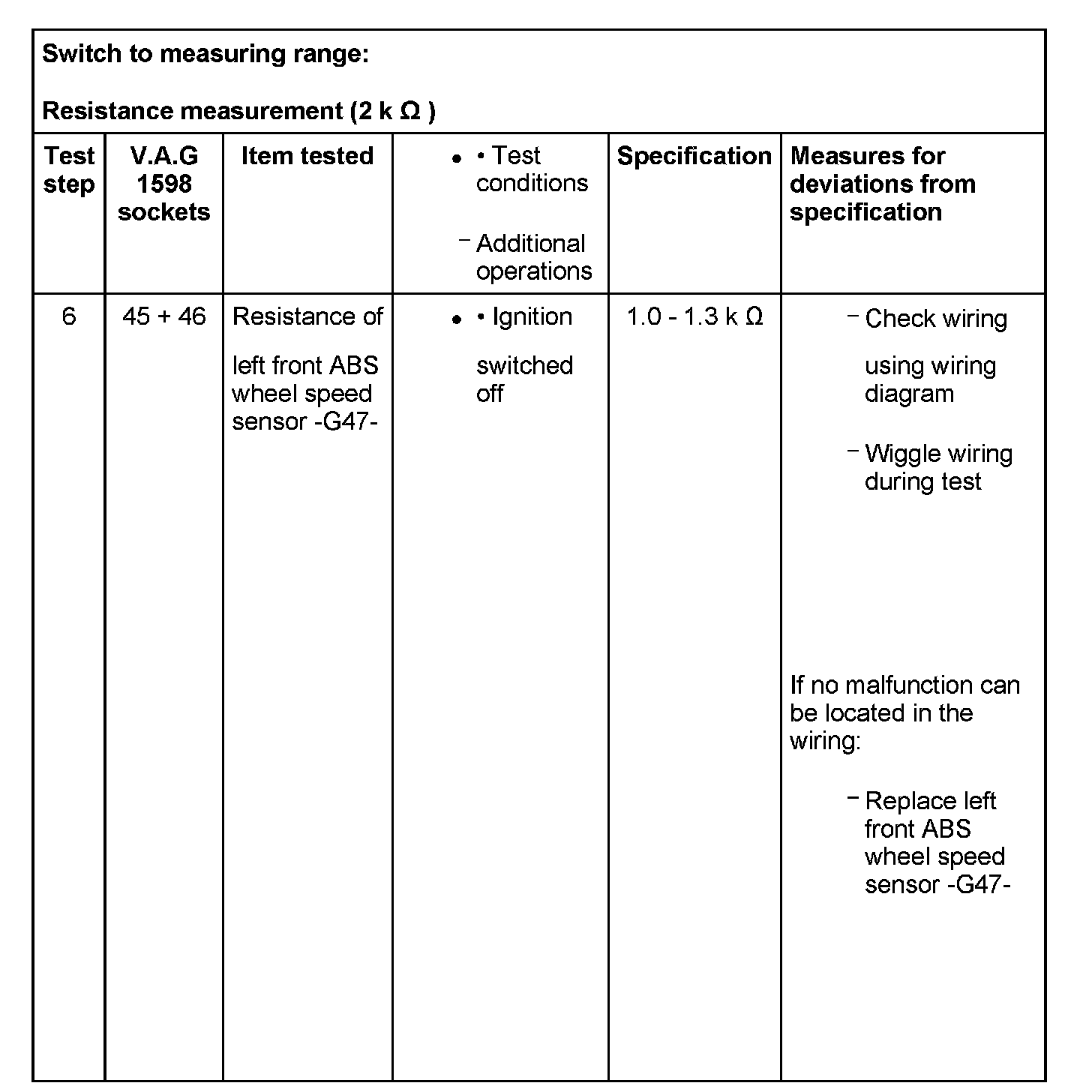

Step 6:

Step 7:

Step 8:

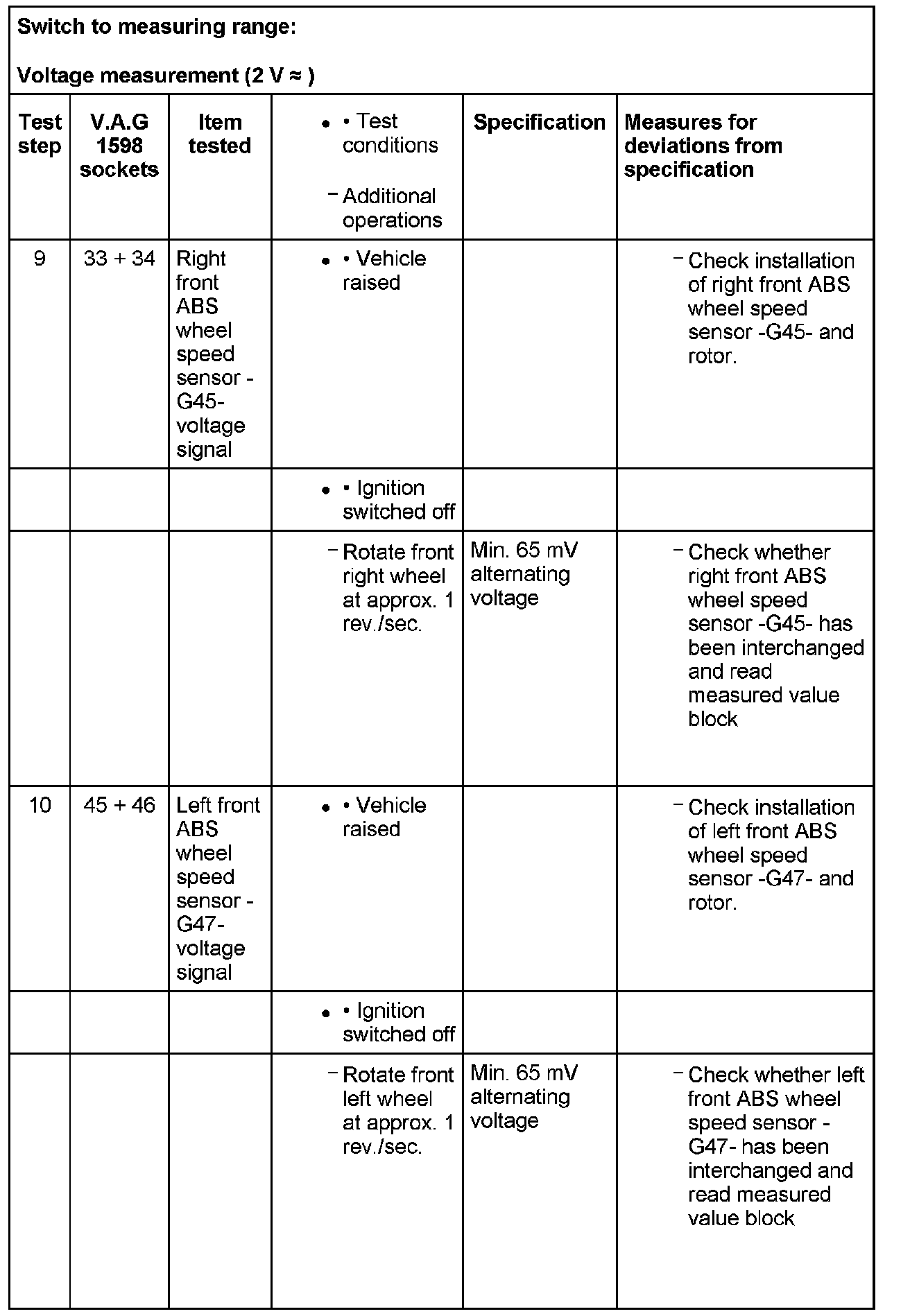

Step 9-10:

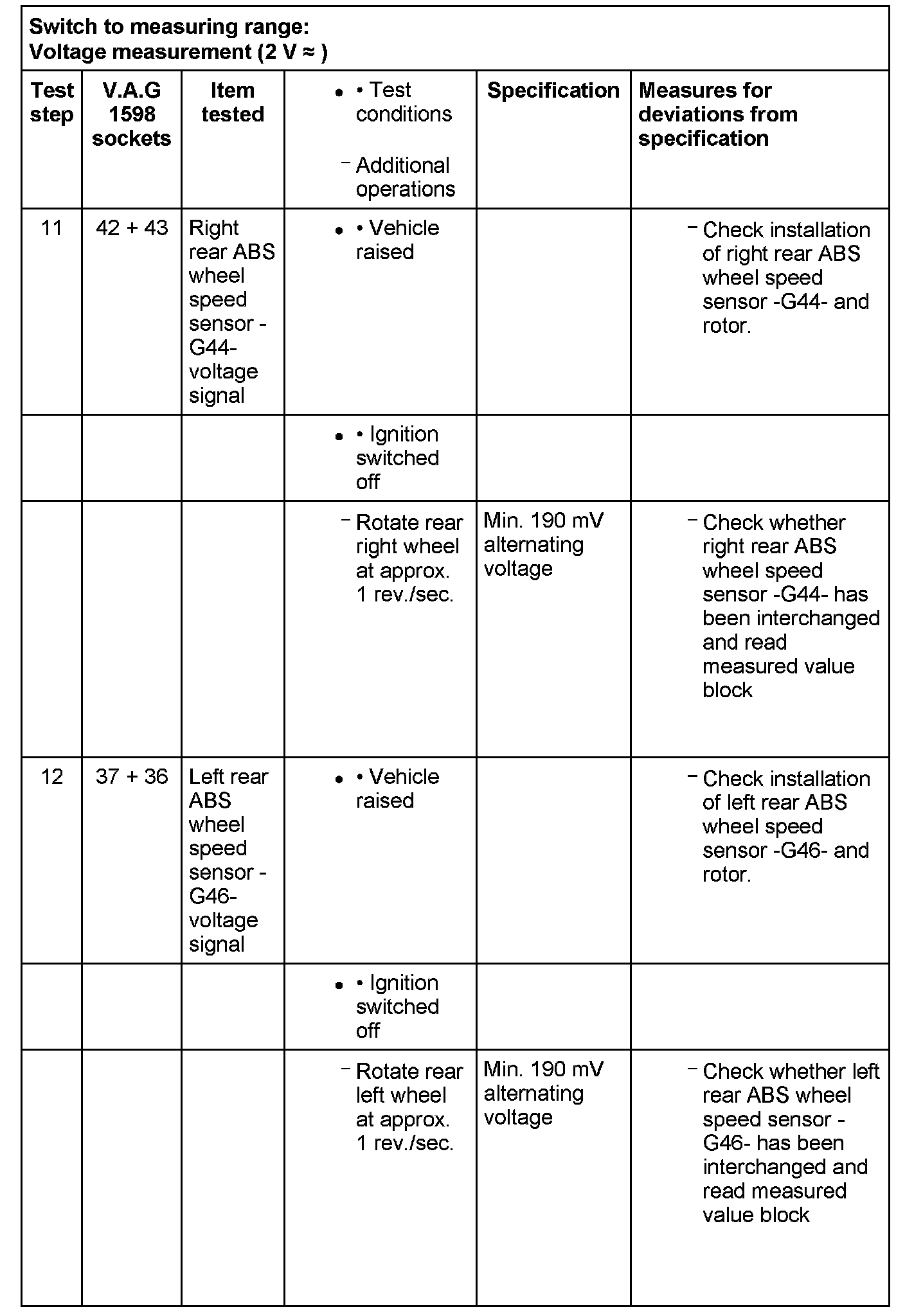

Step 11-12:

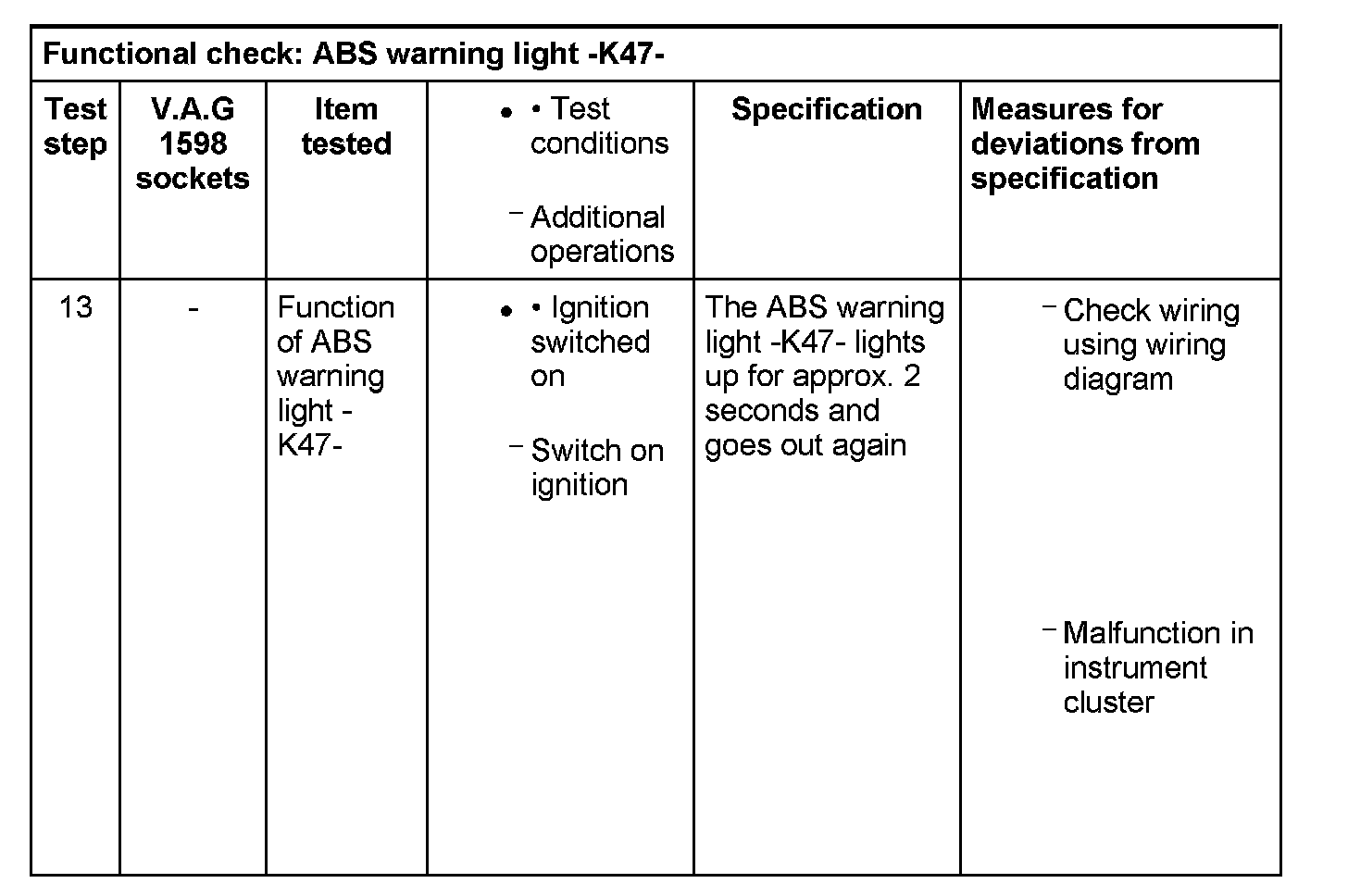

Step 13:

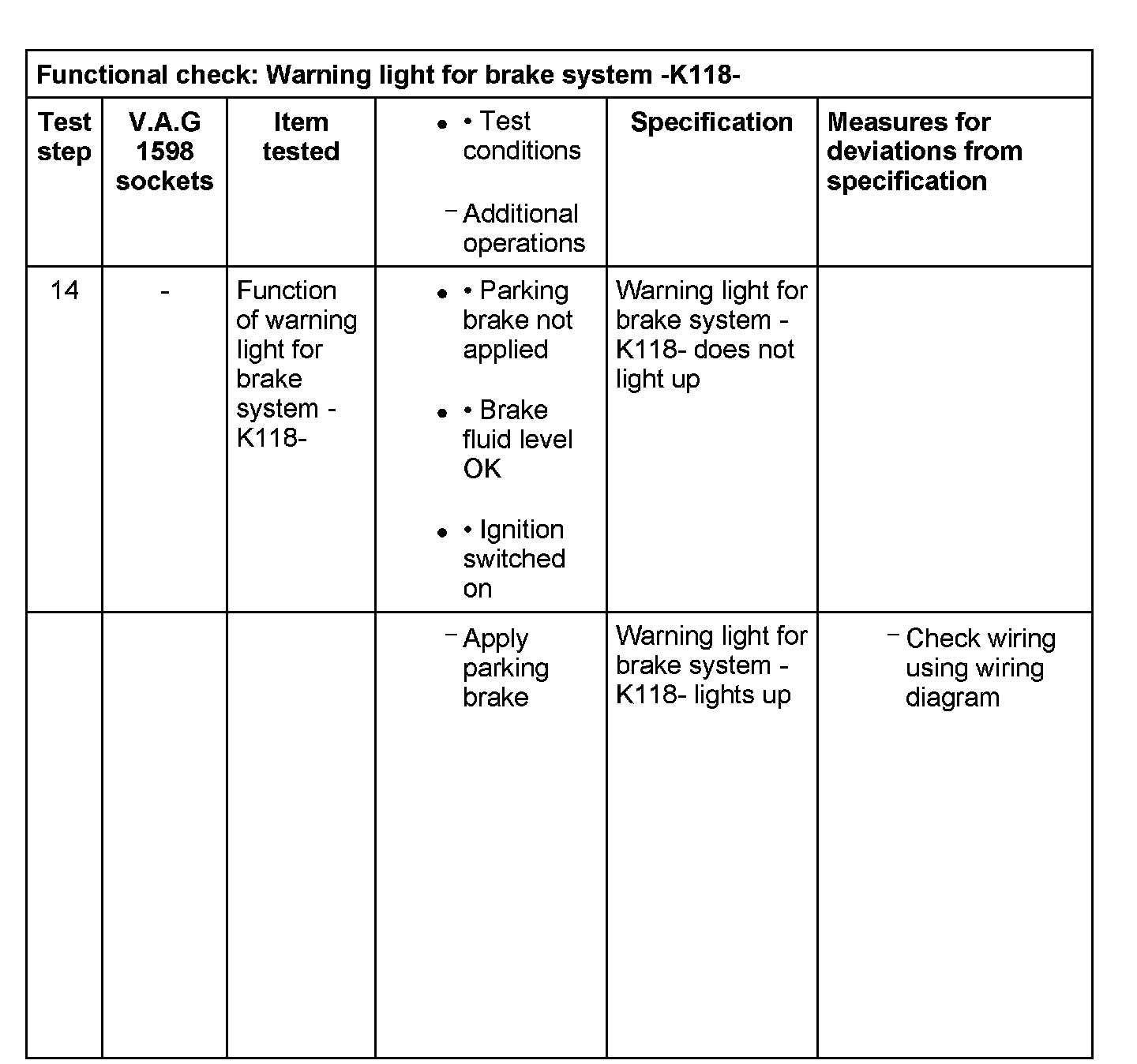

Step 14:

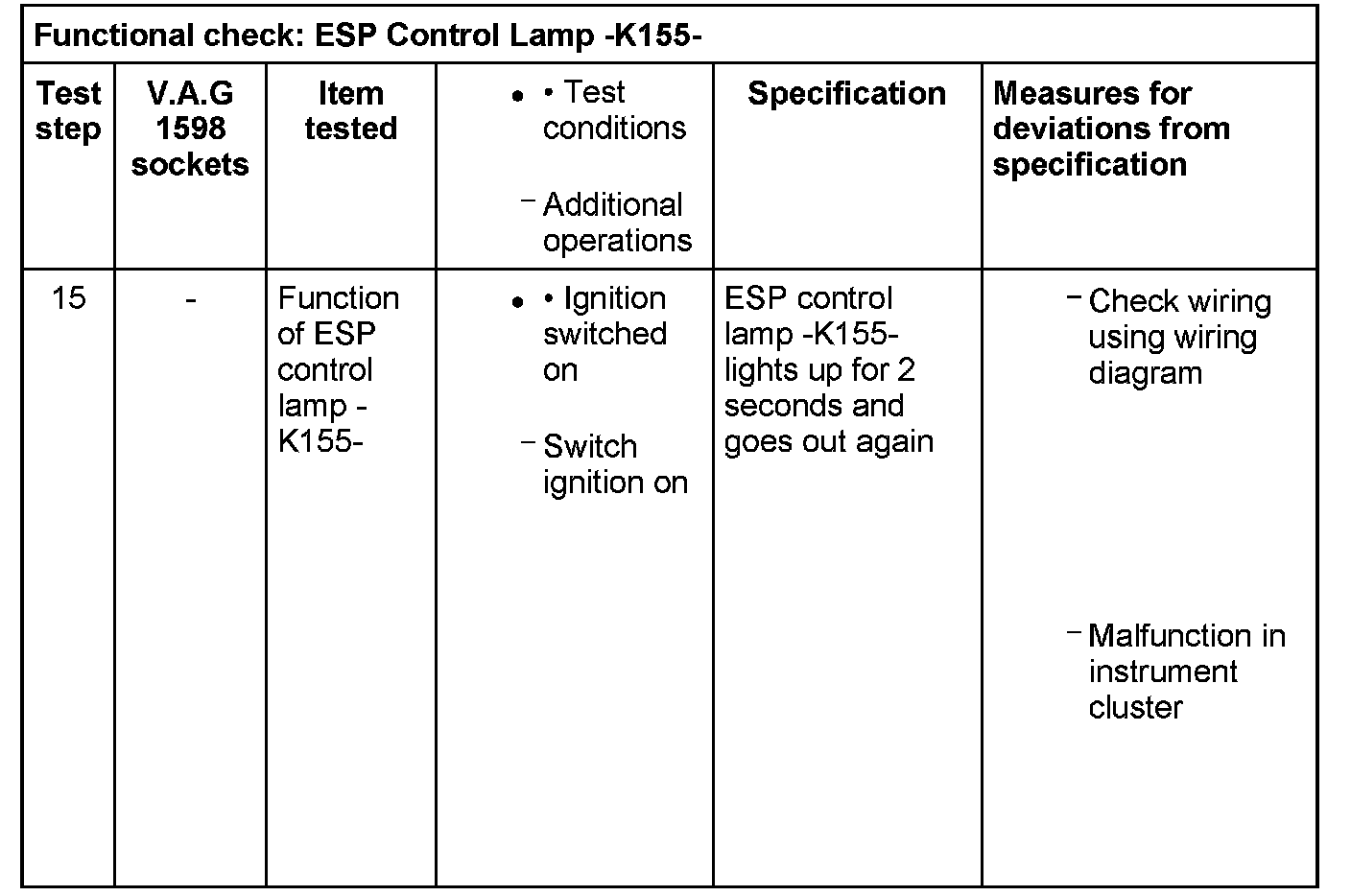

Step 15:

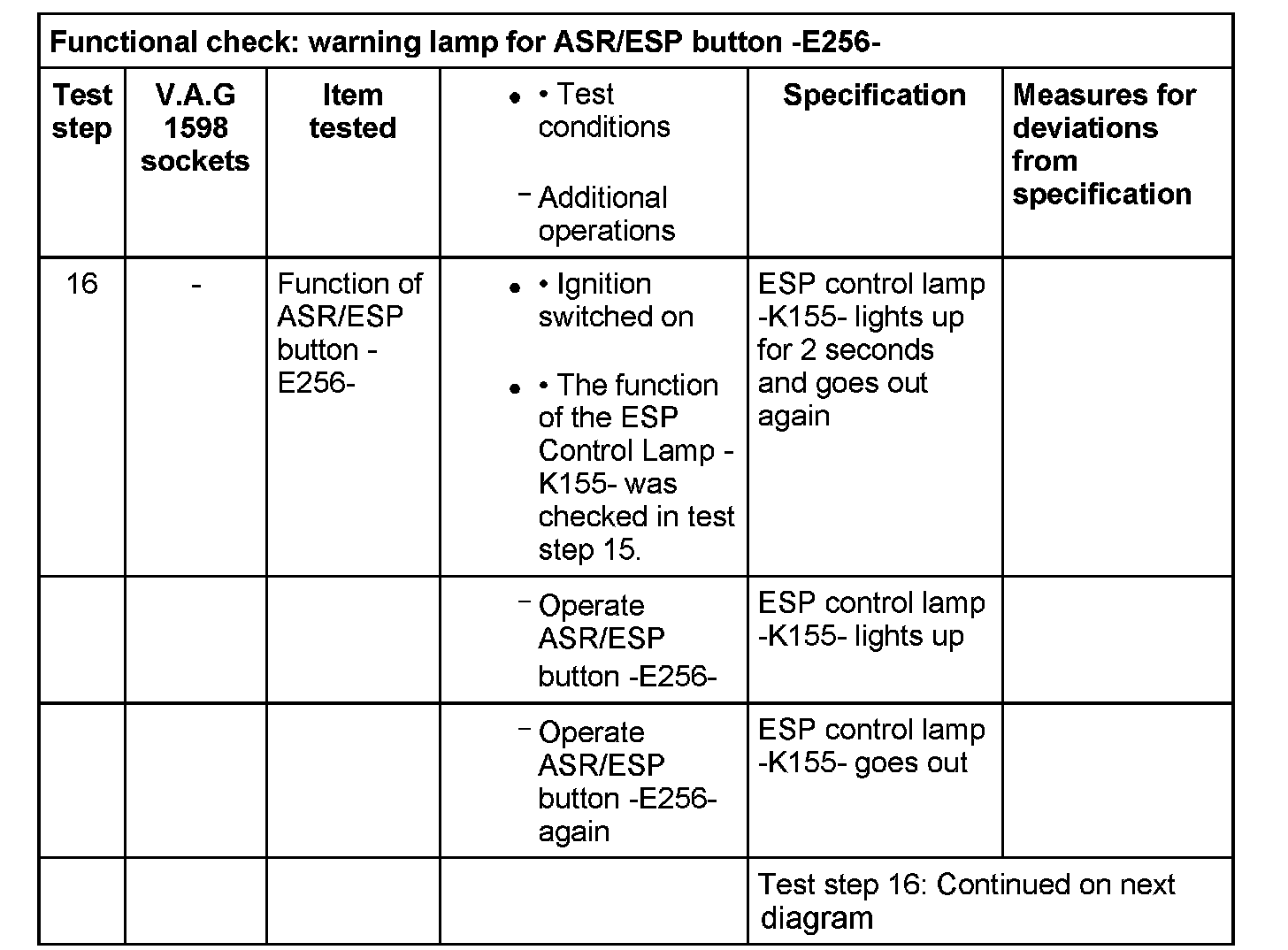

Step 16 (Part 1):

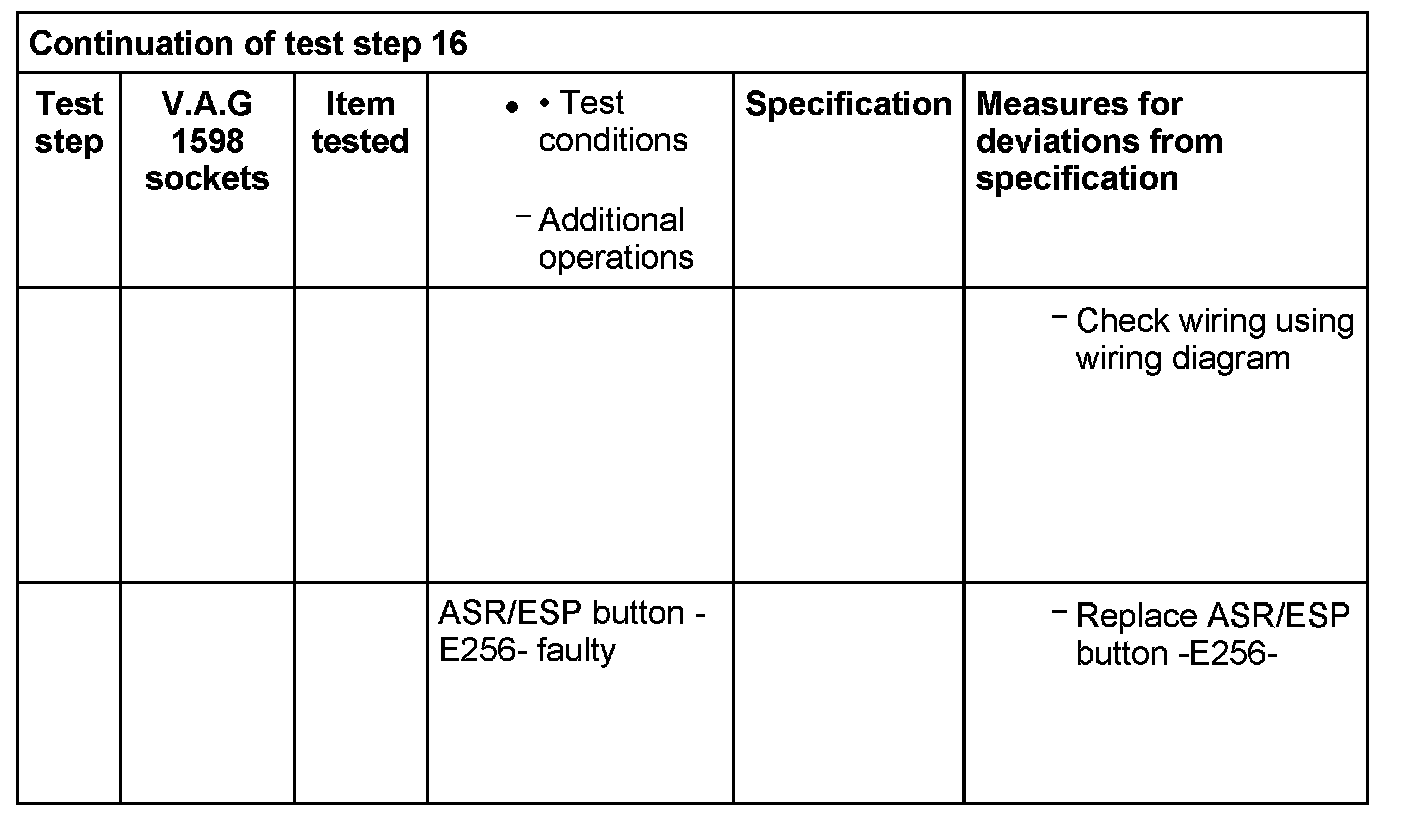

Step 16 (Part 2):
