Scan Tool, Connecting

Scan tool, connecting
All functions which could previously be performed with V.A.G 1551/1552 can also be performed with the new tester VAS 5051 in the operating mode vehicle OBD.

Special tools and equipment





^ VAS 5051 Vehicle Diagnosis, Testing and Information System
^ Diagnostic cable VAS 5051/1 or VAS 5051/3
^ The ABS function is switched off in the control module during the On Board Diagnostic (OBD).
^ The Diagnostic Trouble Code (DTC) memory can be erased after successful checking and repair.

Connecting VAS 5051

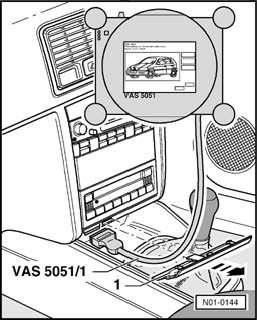

- Pull cover -1- off in direction of -arrow-.
- With ignition switched off, connect tester VAS 5051 to Data Link Connector using diagnosis cable VAS 5051/1 or VAS 5051/3.

Selecting operating mode:
- Press button on display for "Vehicle On Board Diagnostic (OBD)".

Selecting vehicle system:
- Press button "03 - brake electronics" on the display.
The control module identification and coding are indicated on the display.

Selecting diagnosis function:
All diagnostic functions available are indicated on the display.
- Press button on display for desired function.
- Further measures refer to repair procedures.

Note: These test sequences are for V.A.G 1551 scan tool.
