Test Table

Test table

Notes on test table

^ The socket designations of adapter V.A.G 1598/21 are identical to the control module -J104 contact designations in wiring diagram.
^ If the readings obtained deviate from the specifications, carry out repair measure in the right-hand part of the table.
^ Continuity checks with adapter set V.A.G 1594 A (bridging).
^ If the measured figures only deviate slightly from the specifications, clean sockets and connectors of the testers and adapter cables (with contact spray G 000 700 04) and repeat check. Before replacing components, check wiring and connections and also, particularly for specifications of less than 10 Ohms, repeat resistance check on the component.

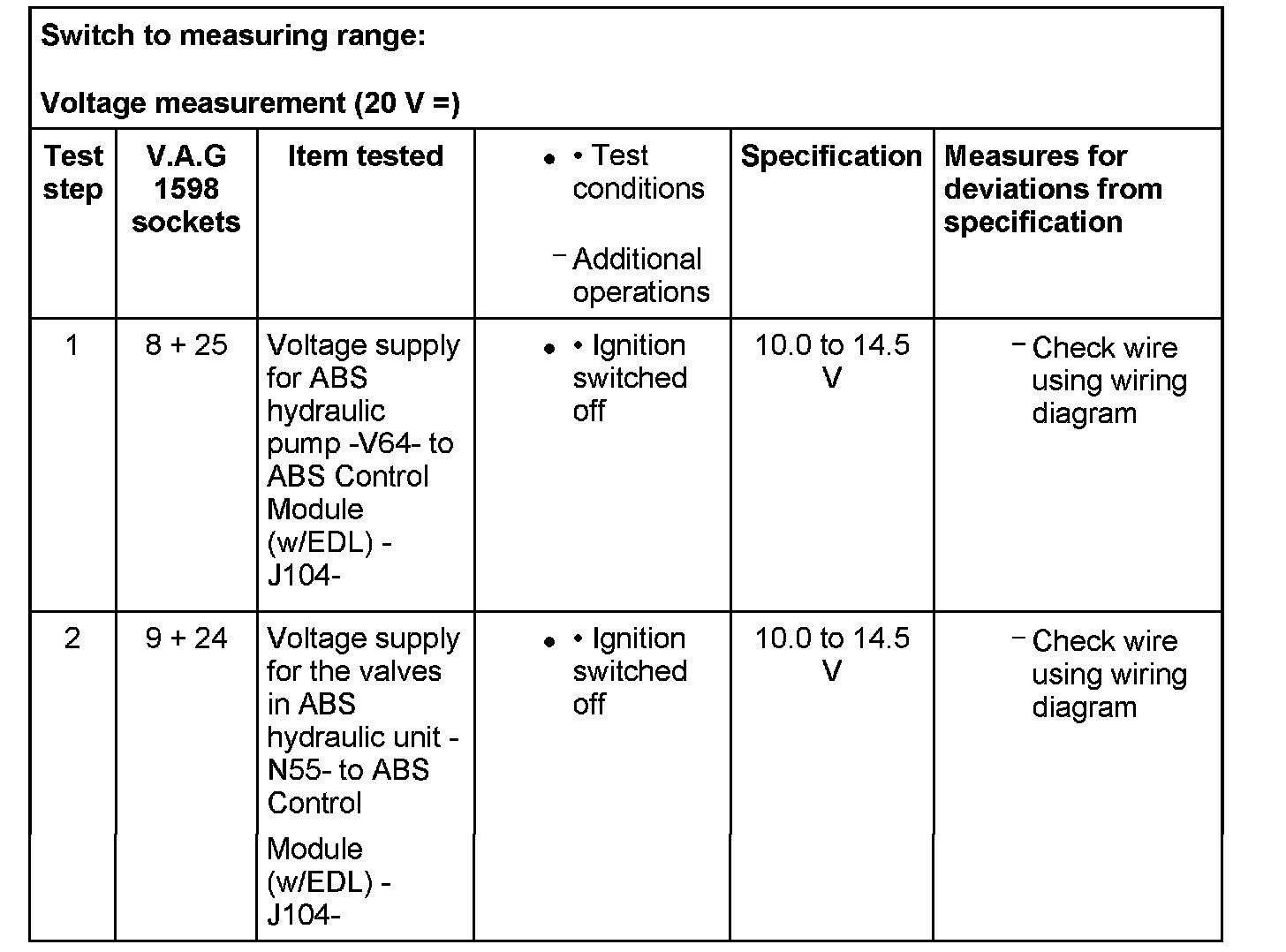

Test Step 1-2:

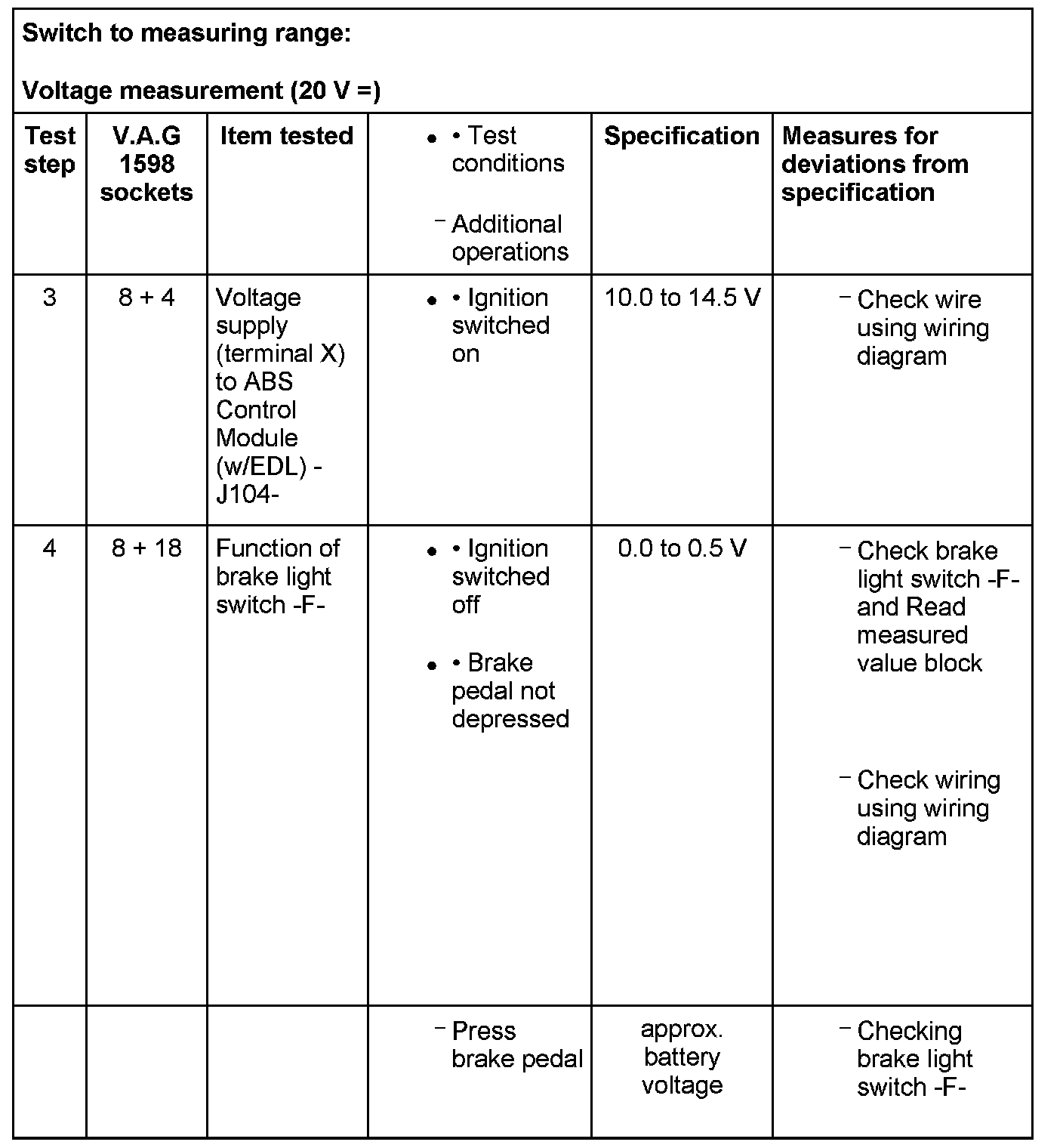

Test Step 3-4:

Test Step 5:

Test Step 6:

Test Step 7:

Test Step 8:

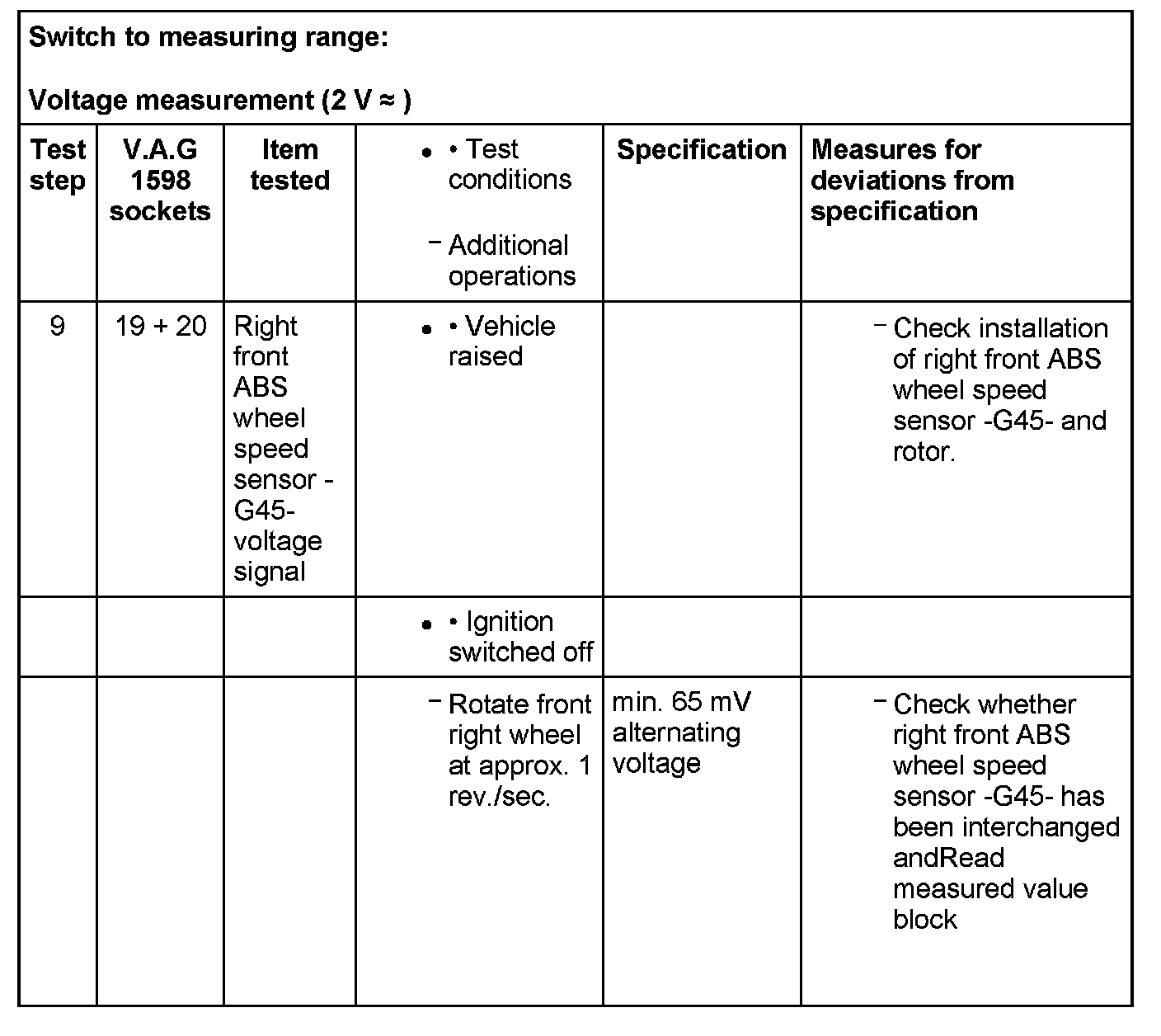

Test Step 9:

Test Step 10:

Test Step 11:

Test Step 12:

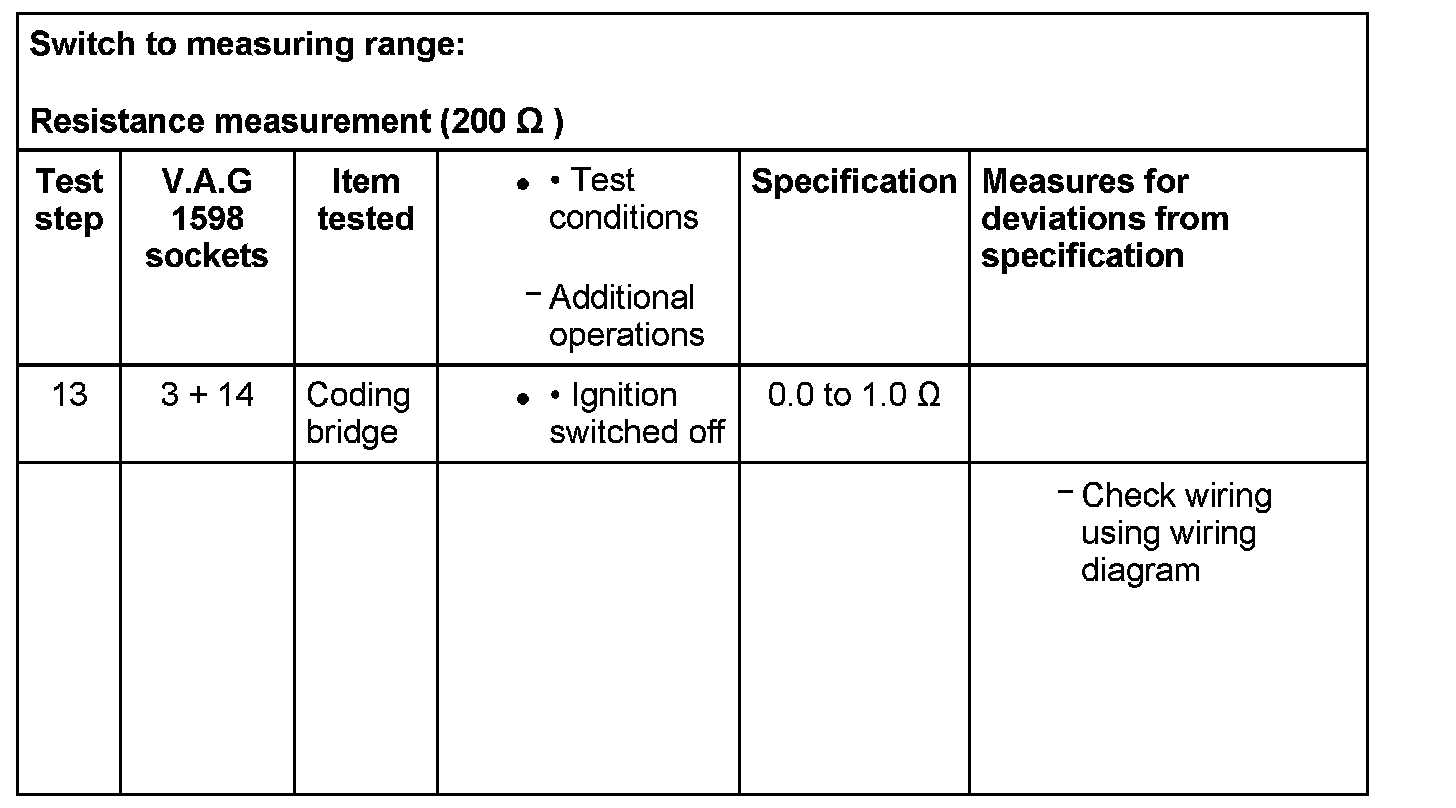

Test Step 13:

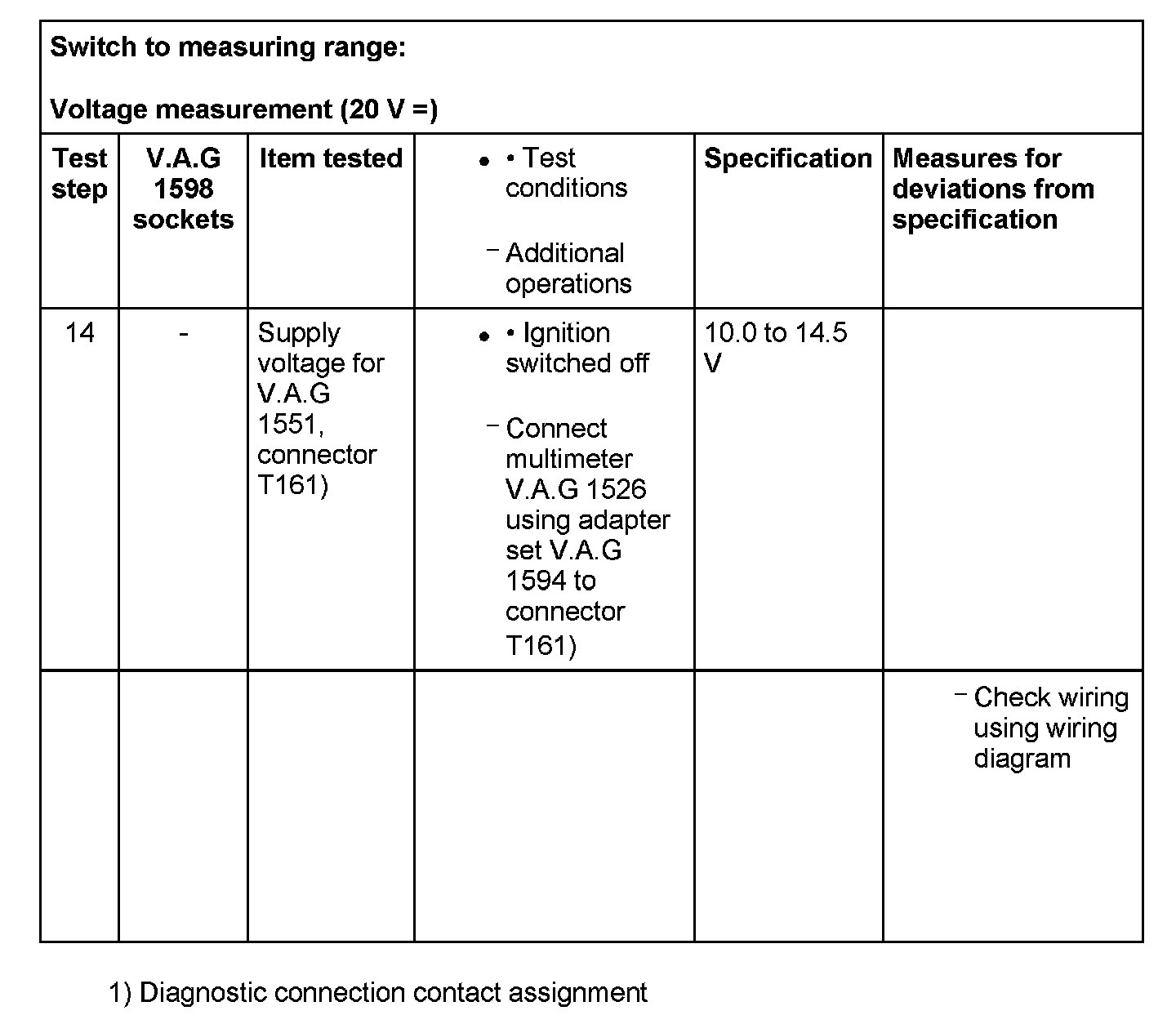

Test Step 14:

Test Step 15:

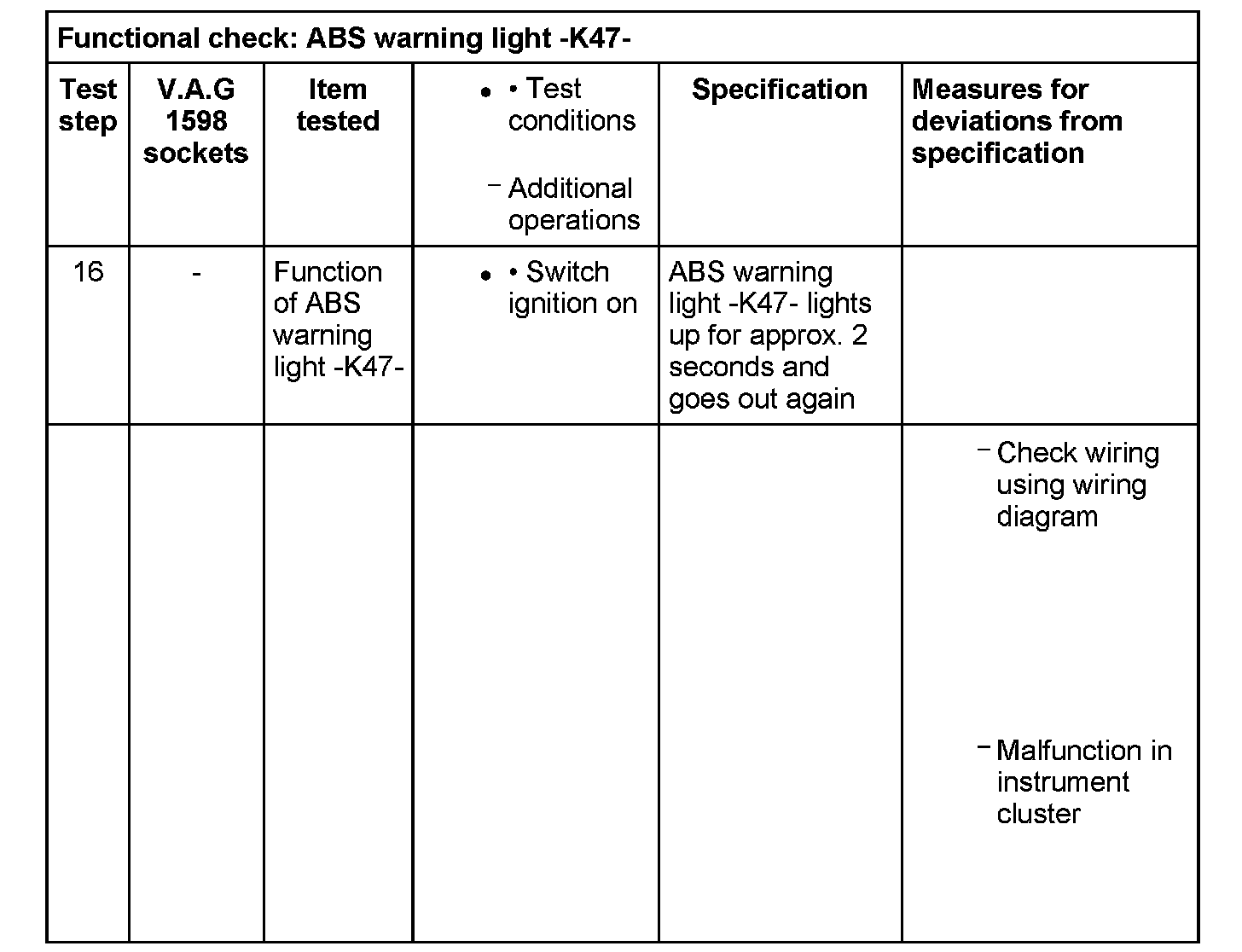

Test Step 16:

Test Step 17:

Test Step 18:

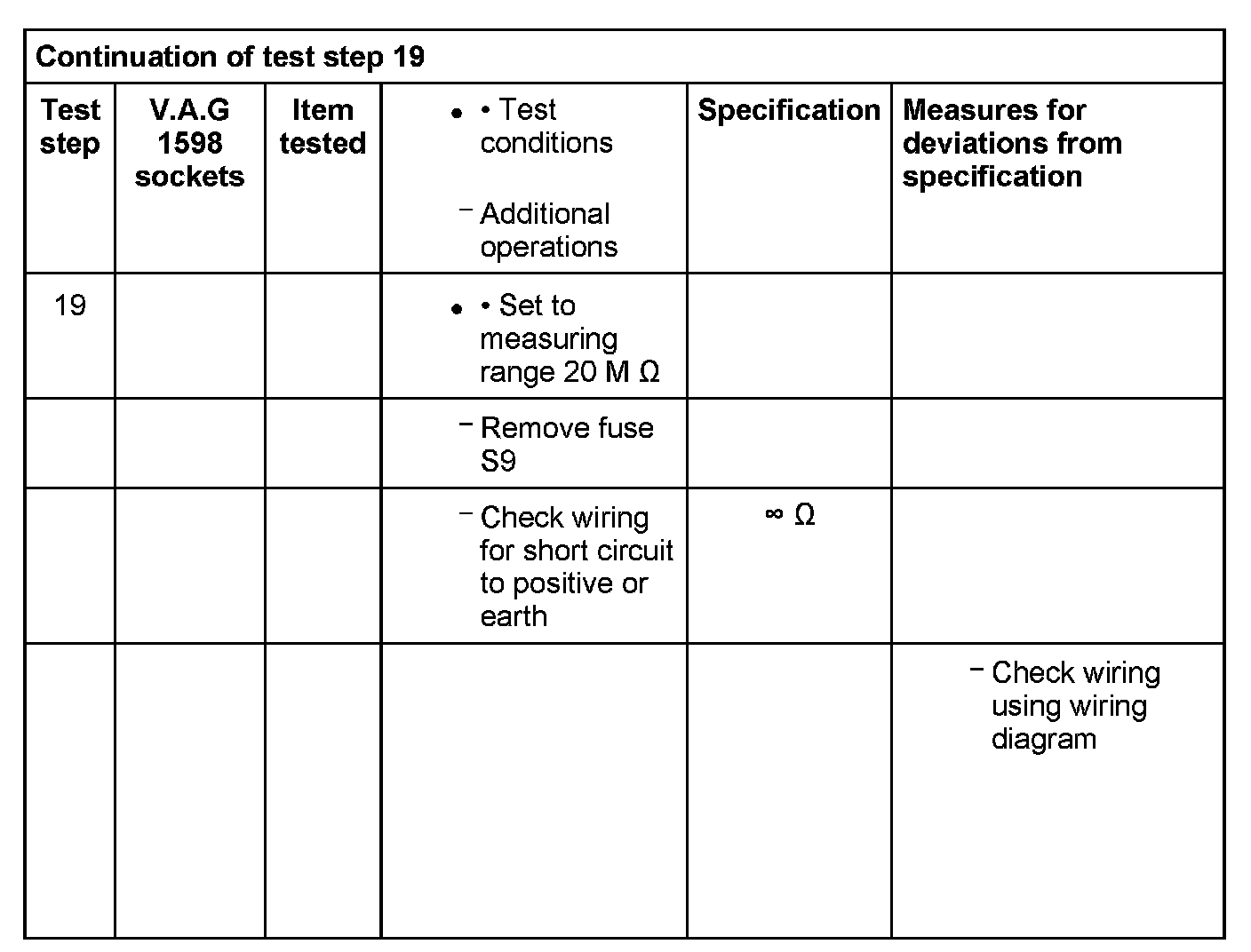

Test Step 19 (Part 1):

Test Step 19 (Part 2):

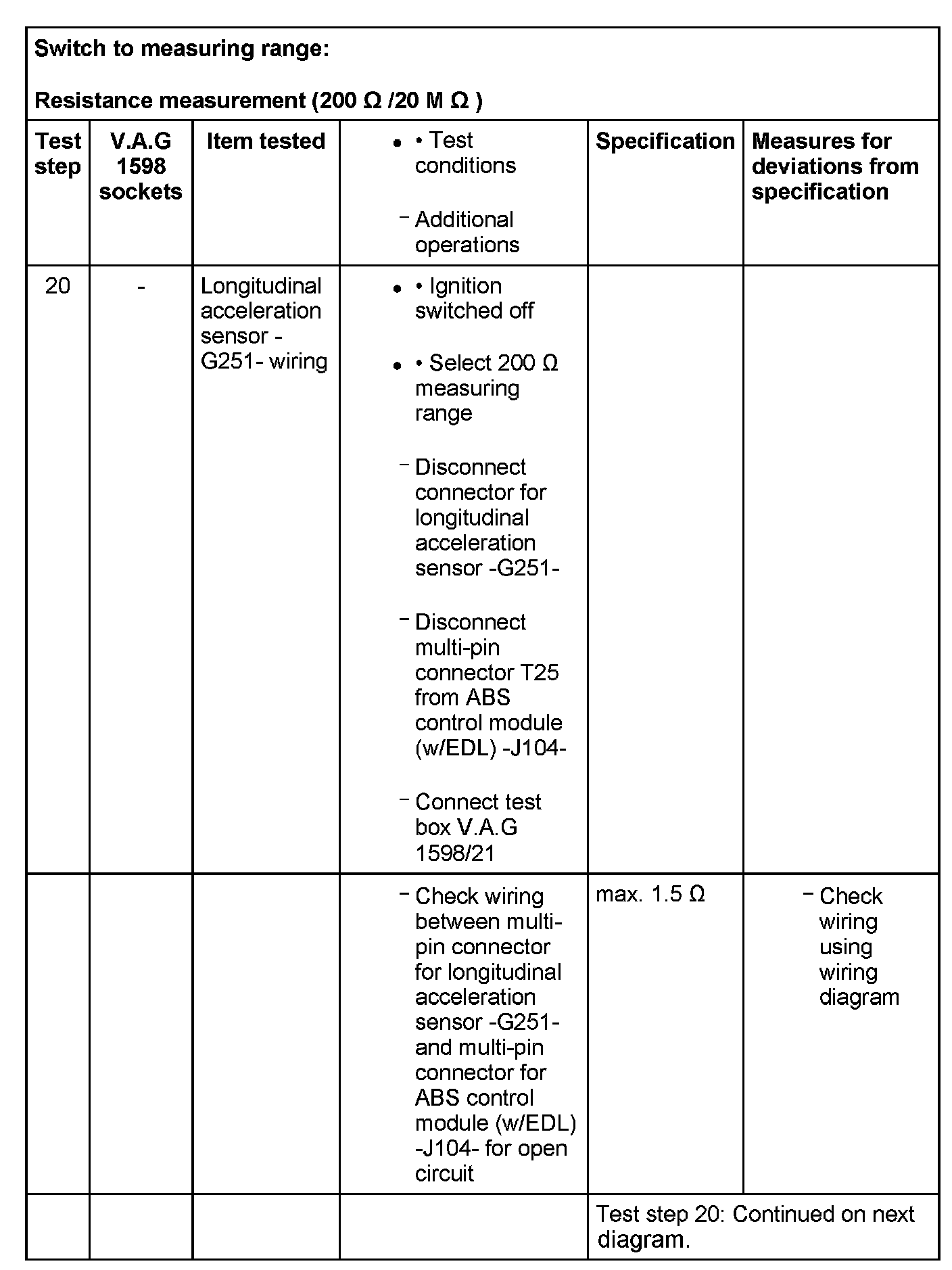

Test Step 20 (Part 1):

Test Step 20 (Part 2):

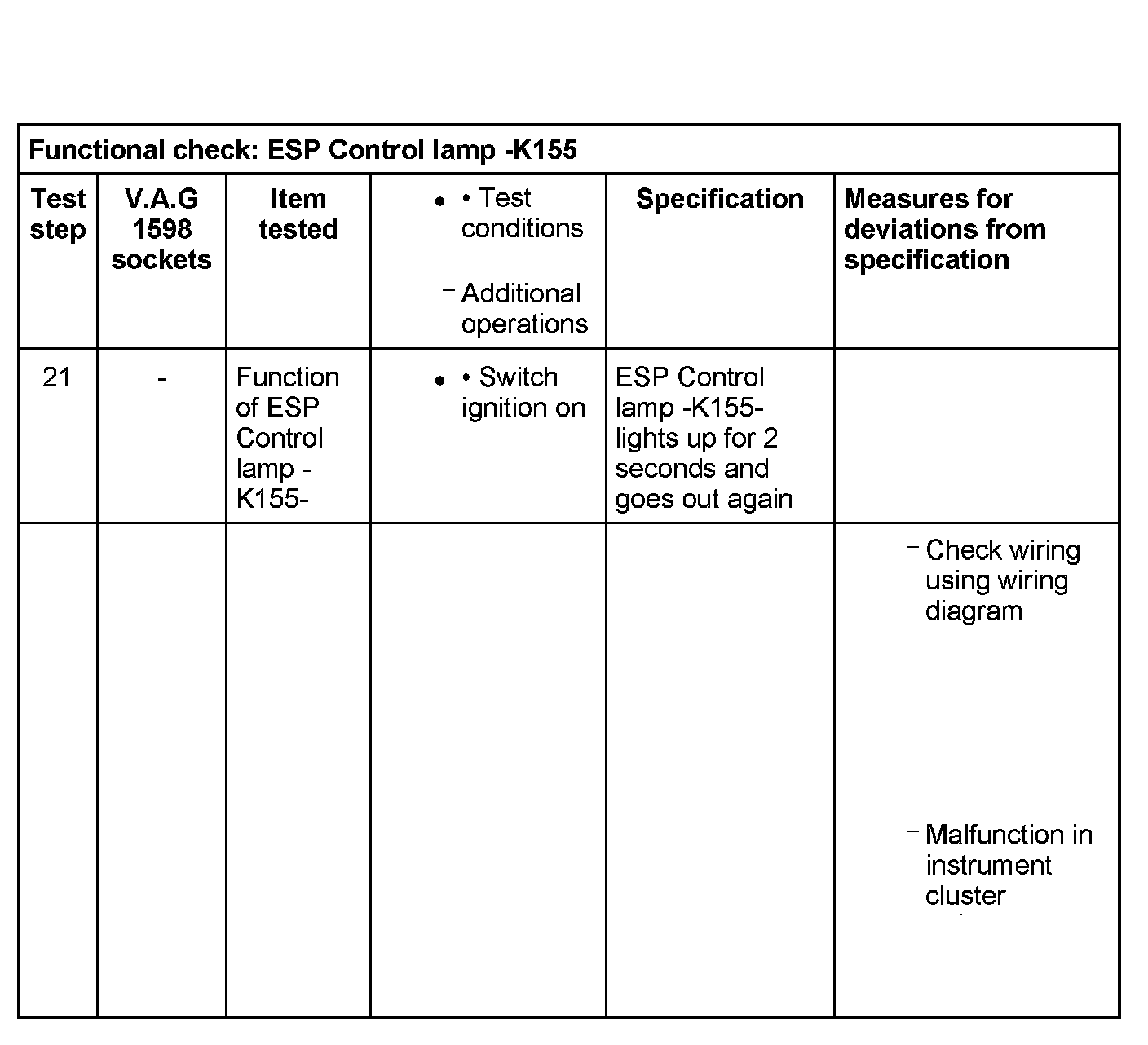

Test Step 21:
