Luggage Compartment Cover Support, Removing and Installing (Golf)

Luggage Compartment Cover Support, Removing And Installing (Golf)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing
- Remove luggage compartment cover.

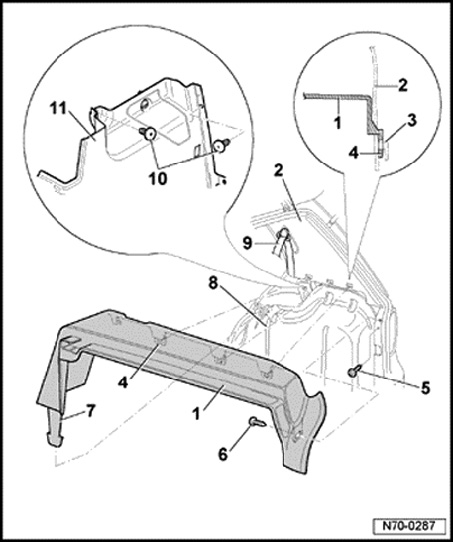

- Remove bolt - 5 -.
- Unclip lock carrier trim from C-pillar and remove clips - 10 -.
- Remove bolt - 6 -.
- Remove support - 1 - upward, starting at rear.







- Remove support - 1 - with locking pin - 7 - from out of wheel housing - 8 -.







Installing
Installation is reverse of removal.
