Upper D-Pillar Trim, Removing and Installing (Golf Wagon/Jetta Wagon)

Upper D-pillar Trim, Removing And Installing (Golf Wagon/Jetta Wagon)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing

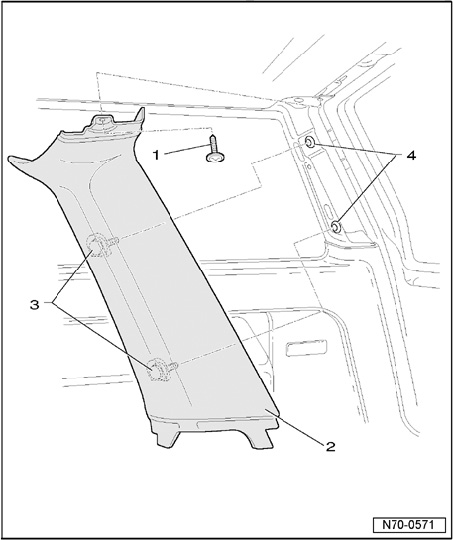

- Remove roof end strip.
- Remove bolt - 1 -.







- Remove trim - 2 - and pull out upward.







Installing

NOTE:
- Before installing trim - 2 -, check clips - 3 - and mounting sleeves - 4 - for damage, replace if necessary.
- Steel clips and D-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection - parts catalog.

- Insert clips - 3 - into mounts for trim - 2 - and press mounting sleeves - 4 - into C-pillar holes.
- Insert lower edge of D-pillar trim panel - 2 - behind luggage compartment side trim and clip into D-pillar.
- Secure trim - 2 - in roof area with bolt - 1 -.







- Install roof end strip.
