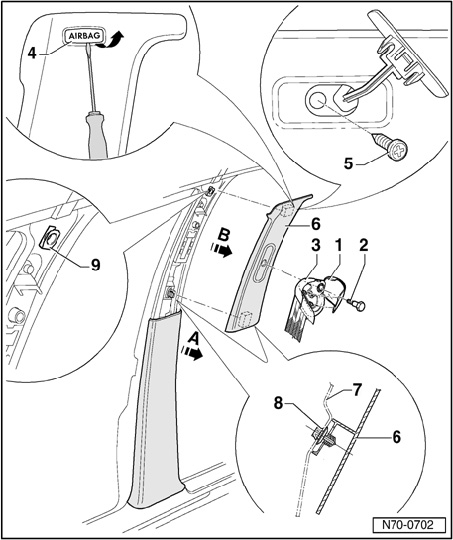

Upper B-Pillar Trim, Assembly Overview (Vehicles With Side Curtain Protection)

Upper B-pillar Trim, Assembly Overview (Vehicles With Side Curtain Protection 05.01 -->)







1 - Cover cap
2 - Bolt
- 40 Nm

3 - Belt relay
4 - Emblem, airbag
5 - screw
- 2 Nm

6 - B-pillar trim
7 - B-pillar
8 - Mounting clip
9 - Steel Clip
