CD Changer, Removing and Installing

CD Changer, Removing And Installing

Removal and installation described here is essentially the same for both Golf and Jetta models.

NOTE:
When installing a new CD Changer in vehicle not previously equipped with one:
- Prior to installation, CD Changer position (vertical or horizontal) must be set via the V/H switches. Check and reset if necessary.
- Radio must be coded in order to support CD Changer functions. After installing new CD unit, input appropriate radio coding using On Board Diagnostic program function 07, "Code Control Module".

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

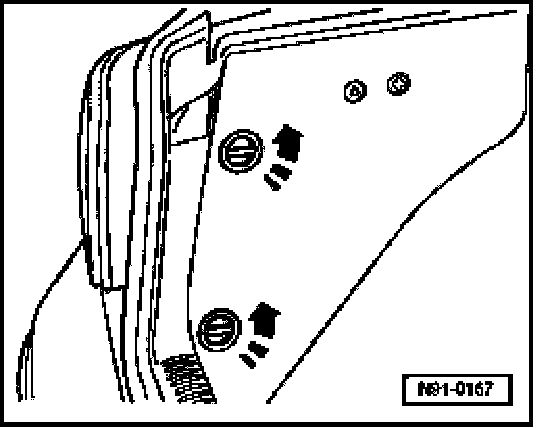

- Turn release knobs in direction of arrow and open trim flap.

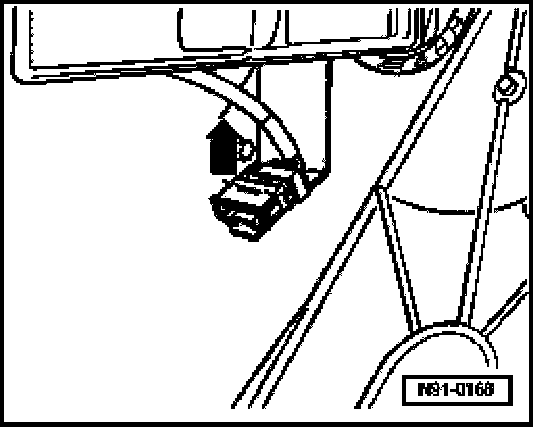

- Disconnect electrical connection and unclip from retainer -arrow-.

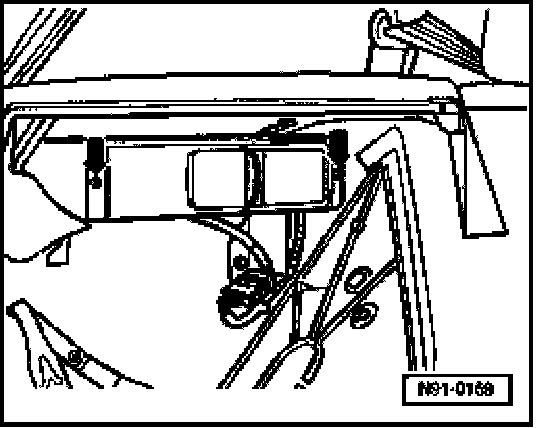

- Remove bolts -arrows- and remove CD Changer from retainer.
Tightening torque: 3 Nm (27 in. lb.)

Installing
- Install in reverse order of removal.
- Ensure radio is coded accordingly for CD Changer functions using On Board Diagnostic program function 07, "Code Control Module": Radio system "Premium IV" and "Premium V". Radio system "Premium VI".

NOTE: Radio sound system coding must be performed to account for presence of CD Changer, Monsoon amplifier (if installed) and interior sound field differences between models.
