CD Changer Retainer, Removing and Installing



CD Changer Retainer, Removing And Installing

Removing
- Remove CD Changer.

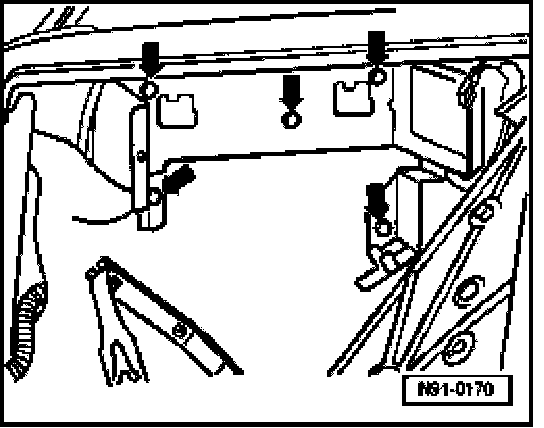

- Remove bolts -arrows- and remove retainer.
Tightening torque: 5 Nm (44 in. lb.)

Installing
Install in reverse order of removal.
