CD Changer Position (V/H) Switches, Setting

CD Changer Position (V/H) Switches, Setting

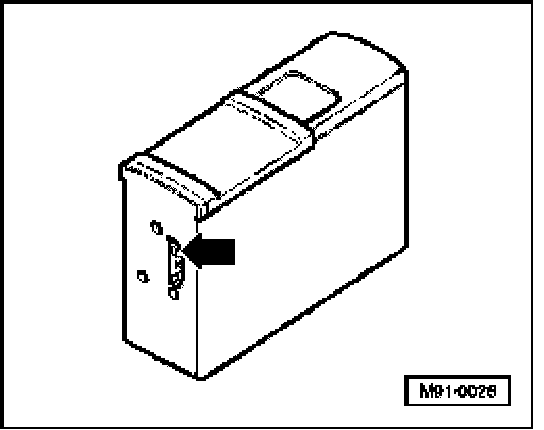

- Check and confirm CD Changer position settings via V/H switch (or switches) -arrow- where applicable.
- Loosen V/H switch retaining screw, slide switch towards the appropriate position according to CD Changer's installation position ("V" = vertical, or "H" = horizontal) and tighten.
- Tightening torque: 3 Nm (27 in lb)

NOTE:
- CD playback will skip if switches are not set correctly.
- Always check/set switches prior to CD installation.
- Switches must move completely to their end positions.
- Before sliding CD Changer into CD Changer bracket ensure that the CD Changer cable and connector route to the front side of the CD Changer.
