ABS ITT Mark 20 IE

Diagnostic Trouble Code (DTC) table

Note on DTC table:
^ When beginning OBD of the vehicle control modules, always start with function "Automatic test sequence" by pressing keys 0 and 0 because the control modules are interconnected with a data bus wire. This checks the DTC memories of the control modules in the vehicle.

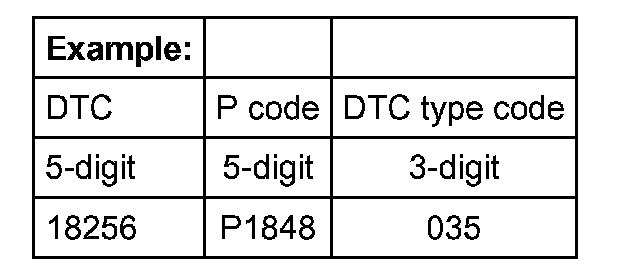

^ All the possible DTCs which can be recognized by the ABS control module -J104- and printed-out on V.A.G 1551 or VAS 5051, are listed according to the 5-digit DTC.
^ DTC appears (in the "Rapid data transfer" mode) only on the print-out.





^ The 5-digit P code which may appear next to the DTC, is for use with the On Board Diagnostic (OBD) II and may be disregarded.
^ The 3-digit DTC type code is a data code and may be disregarded, but the DTC type text is of use.
^ Before replacing components indicated as being faulty, check all the appropriate connectors, wiring and Ground connections using the wiring diagram.
^ On completion of repairs always check the DTC memory with V.A.G 1551 Scan Too. or the tester VAS 5051 and erase.
^ Carry out road test exceeding 20 km/h (13 mph).
^ After the road test check DTC memory again.
