"Aero-Wiper" Blades, Removing and Installing

"Aero-wiper" Blades, Removing And Installing

"Aero-wiper" system installed as a running change during m.y. 2002.

Removing

CAUTION:
- To ensure proper wiper performance, only grab/lift Aero-wiper blades at the mounting pivot on wiper arm when removing and installing.
- Driver and passenger wiper blades are different lengths. Damage will result if wiper blades are interchanged.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Bring wiper arm to park position.







- Lift Aero-wiper blade/arm assembly -2- from windshield, noting CAUTION: above.

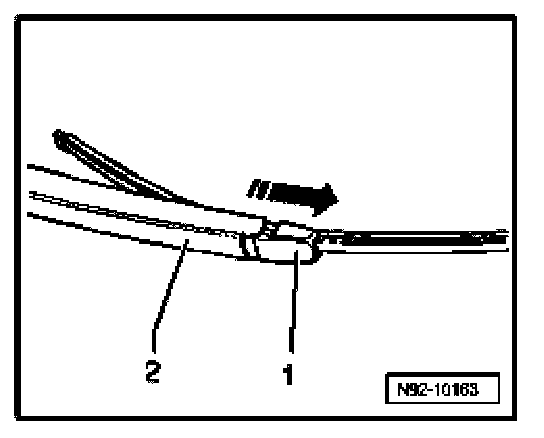

- Pull wiper blade mounting -1- from wiper arm -2- in direction of -arrow-.







- Remove wiper blade mounting -1- from wiper arm pivot -2-

Installing

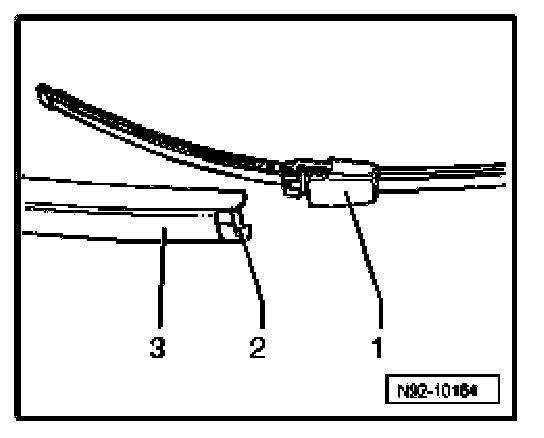

- Install wiper blade mounting -1- on wiper arm pivot -2-
- Push wiper blade mounting -1- until it is felt to engage fully on arm -3-.
- Carefully fold arm and blade onto windshield noting CAUTION! above.
