Wiper Arm: Service and Repair

Wiper Arms, Removing And Installing

Removing

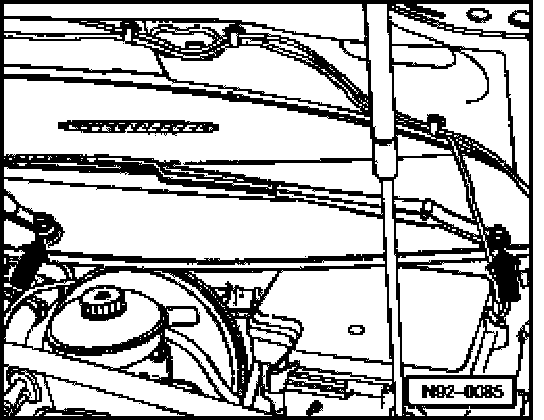

Removing wiper arms.

Installing

NOTE: Wiper arm nuts must only be torqued to specification with wiper motor and wiper arms in park position.

- Mount wiper arms onto wiper shafts in approximate parked location.







- Install M8 nuts -arrows- hand tight only.
- Adjust wiper blade park position.
