Windshield Washer Jets, Removing and Installing

Windshield Washer Jets, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.







- Pull hose from jet
- Disconnect 2 pin electrical connector.

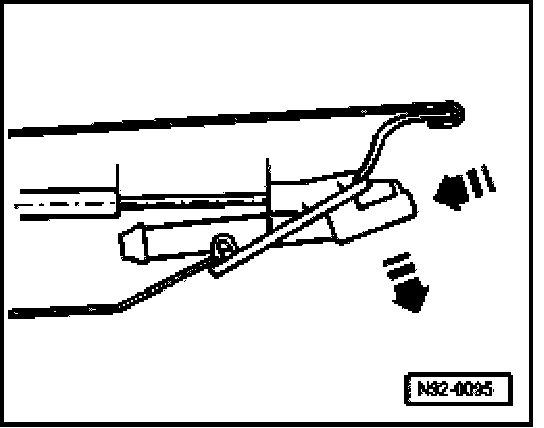

- Press jet forwards and remove downwards -arrows-

Installing
Install in reverse order of removal.
