Rear Window Washer Jet, Removing and Installing

Rear Window Washer Jet, Removing And Installing

Removing
- Operate rear window wiper briefly and bring wiper arm to park position.

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Pry up wiper arm cap with a screwdriver.

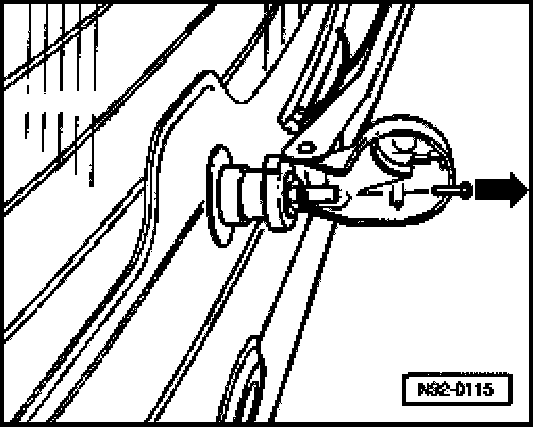

- Use needle nose pliers to carefully pull washer jet from wiper shaft in direction of -arrow-

Installing
- Insert washer jet into shaft until fully engaged.
- Adjust rear window washer jet.
