Rear Window Washer Jet, Adjusting

Rear Window Washer Jet, Adjusting

Special tools, testers and auxiliary items needed

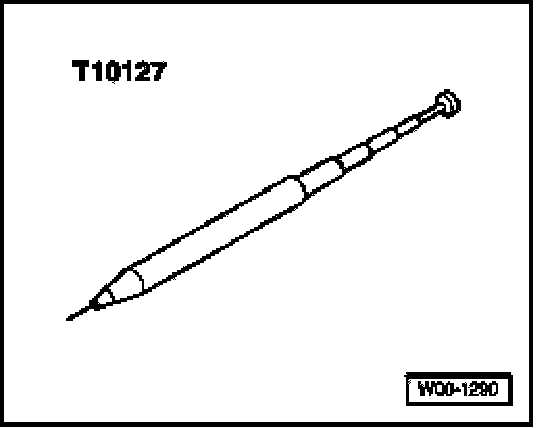

- T10127 Window washer jet adjusting tool

NOTE: If spray pattern is uneven or if jet is unable to be adjusted as specified, replace washer jet.

CAUTION: Washer jets must not be cleaned using means involving physical contact, e.g.: wire, pins, abrasives etc.

- Adjust spray to center of wiped area.
