Smooth Hoses, Repairing

Smooth Hoses, Repairing

Smooth hoses with a diameter of 5 x 1 mm or 6 x 1 mm can be repaired with a EPDM repair hose section.
- Trim and remove damaged sections of hose.
- Choose matching EPDM repair hose -2- and cable ties from Parts Catalog

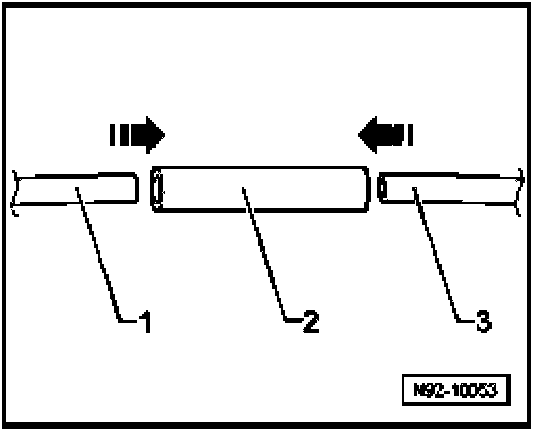

- Insert hose -1- and -3- into ends of EPDM repair hose -2- to a depth of at least 10 mm -arrows-







- Secure with cable ties -1- as illustrated.
