Corrugated Hoses, Repairing

Corrugated Hoses, Repairing

Special tools, testers and auxiliary items

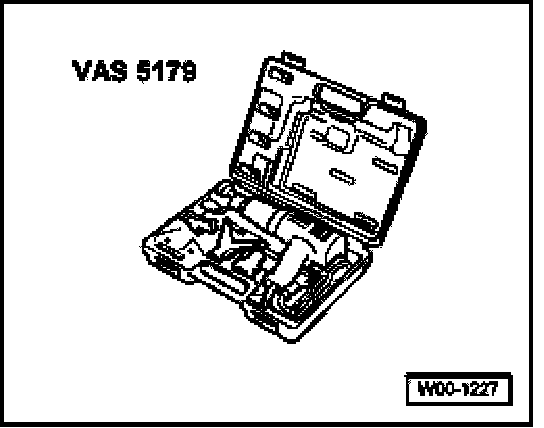

- VAS 1978/14 Hot Air Gun (or Kit VAS 5179 as illustrated)

NOTE:
- Area to be repaired must but be be under stress of stretching or bending.
- If damaged area is longer than 20 mm, a new section of corrugated hose must be obtained, and two sets of adapters inserted using following the following procedure.

- Trim and remove damaged sections of hose.

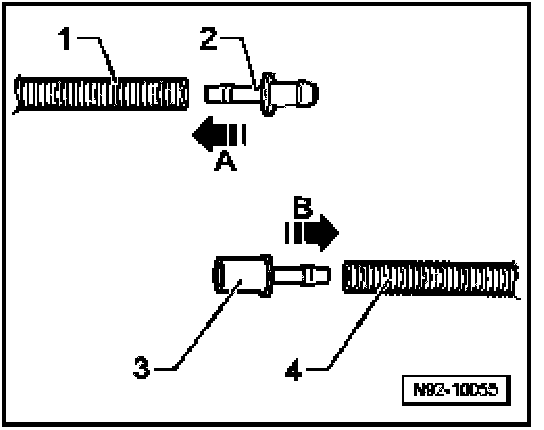

- Choose matching repair adapters -2- and -3- and appropriate shrink tubing from Parts Catalog.
- Carefully warm end of hose -1-.
- Insert repair adapter -2- into hose -1-, -A arrow-.
- Carefully warm end of hose -4-.
- Insert repair adapter -3- into hose -4-, -B arrow-.

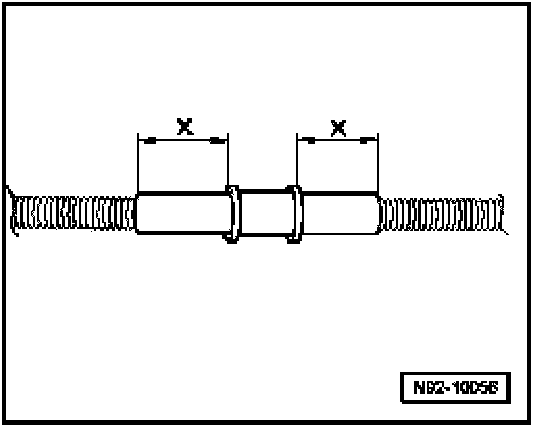

- Trim shrink tubing sections so that corrugated hose is covered a minimum of 20 mm (-x-)
- Slide shrink tubing over corrugated hose, attach adapters together and secure repair with shrink tubing.
