Headlight Washer Jet Telescopic Cylinder, Removing and Installing

Headlight Washer Jet Telescopic Cylinder, Removing And Installing

Removing
- Remove front bumper

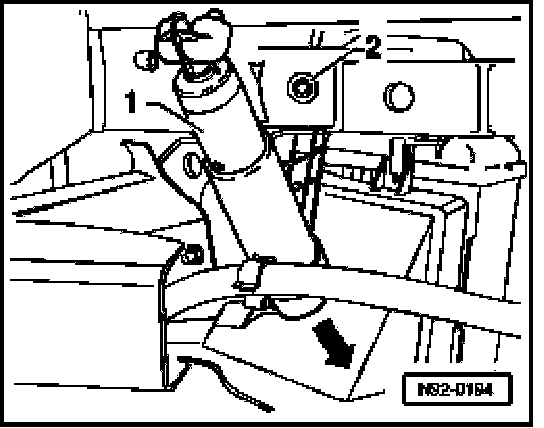

- Remove mounting screw -2- at telescopic cylinder.
- Pull cylinder -1- down slightly -arrow-.

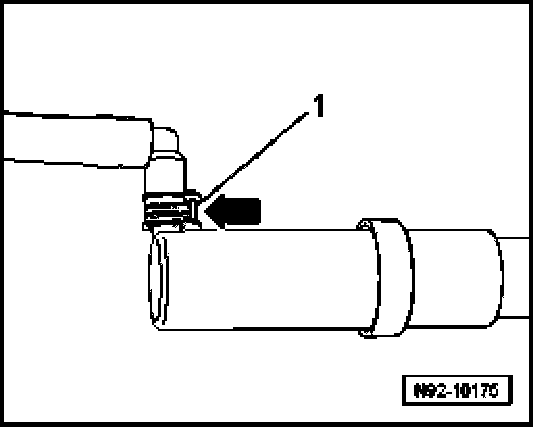

- Remove spring clip -1- at hose coupling -arrow-.
- Separate hose from cylinder.
- Remove cylinder downwards.

Installing
Install in reverse order of removal, noting the following:
- Torque all fasteners according to value in table.
- After assembly is complete, bleed system.
- Adjust headlight washer jets.
