Headlight Washer Jet Telescopic Cylinder - Cover, Removing and Installing

Headlight Washer Jet Telescopic Cylinder-cover, Removing And Installing

Removing
- Remove front bumper

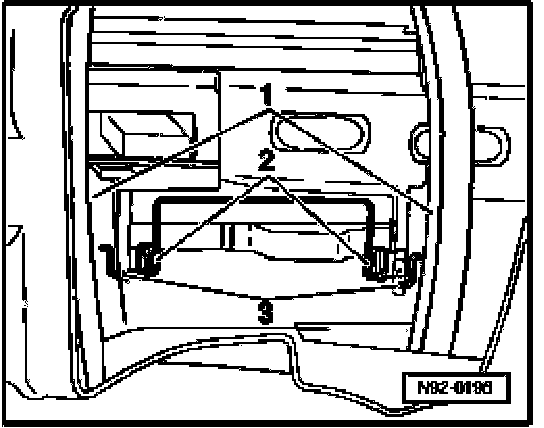

- Release spring from cover -3-.
- Remove spring from bolts -2-.
- Pull out cover -1- from bolts -2- and remove from bumper.

Installing
Install in reverse order of removal.
