Headlamp Washer Spray Nozzle: Adjustments

Headlight Washer Jets, Adjusting

Special tools, testers and auxiliary items needed

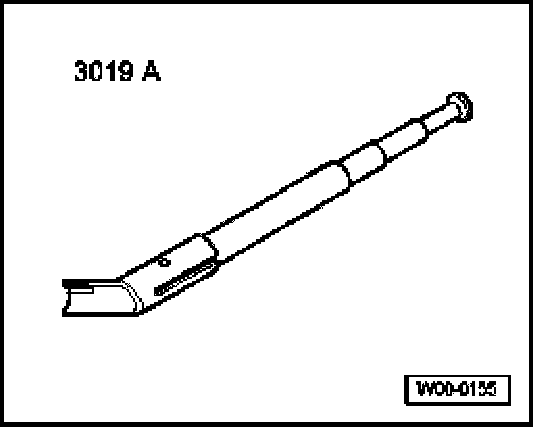

- 3019 A Headlight washer aiming tool

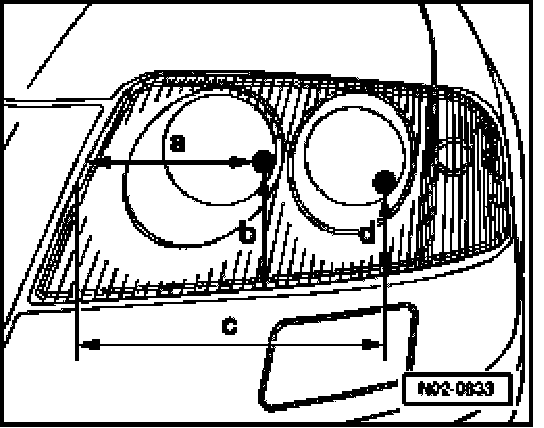

Adjustment values for left headlight (values for right headlight in mirror image)
a - 110 mm
b - 75 mm
c - 230 mm
d - 50 mm

- Where necessary, adjust washer jet as follows:

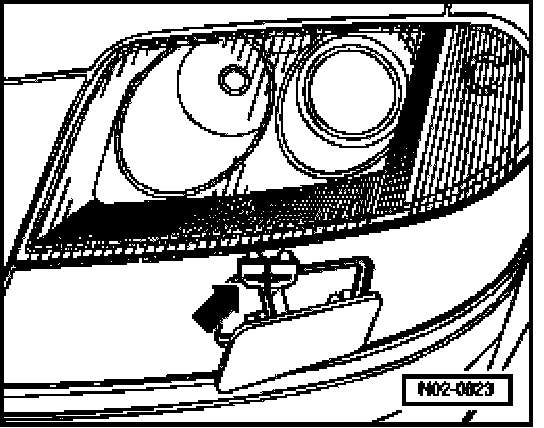

- Lift washer jet assembly -arrow- to stop and use tool 3019 A to adjust spray to specified areas.

NOTE: If spray pattern is uneven or if jet is unable to be adjusted as specified, replace washer nozzle or washer jet assembly.
