Headlamp Washer Pump: Service and Repair

Headlight Washer Pump -V11-, Removing And Installing

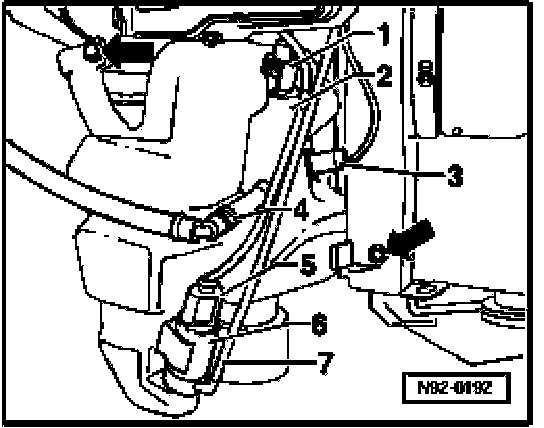

Washer pump -V11- is installed in the washer fluid reservoir located in the left front wheel housing. The construction of the washer fluid reservoir is dependent on engine equipment and may differ to that illustrated in the following procedure.

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove left front wheel housing liner







- Disconnect electrical connection -1- from pump -2-.
- Release coupling -4- and separate hose from pump.
- Pull pump upwards from rubber grommet and remove from reservoir.

Installing
Install in reverse order of removal, noting the following:
- After assembly is complete, bleed system.
