Rear Door Window, Removing

Rear Door Window, Removing

- Remove rear door trim.

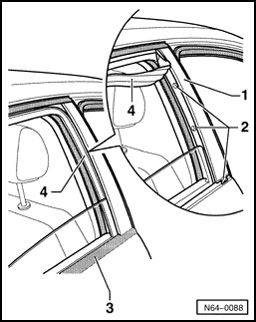

- Remove outer window recess seal - 3 - from door flange.
- Remove window channel - 4 - from panel - 1 -.







- Remove bolts - 2 - and remove trim -1 - from door frame.

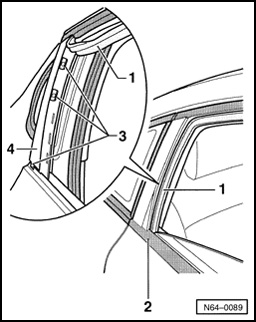

- Remove outer window recess seal - 2 - from door flange.
- Remove window channel - 1 - from panel - 4 -.
- Remove bolts - 3 - and remove trim - 4 - from door frame.







- Remove housing from door handle, see removing lock cylinder housing.
- Remove cap -1 -.

If door window cannot be lowered using electric window regulator, proceed according to description as found on pages:.

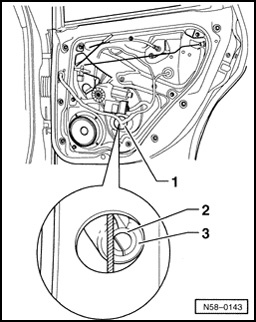

- Lower door window until spreader pin - 2 - and spreader plug - 3 - are accessible in window cut-out.

NOTE:
- When pressing out spreader pin and spreader plug, make sure that outer door plate does not bow.
- Pressed out spreader pins must be removed from door.

- Press out spreader pin - 2 - from spreader plug - 3 - using a drift - dia. 3 mm.
- Press out spreader plug - 3 - from door window using a drift - dia. 3 mm.







- Remove door window upward from door.
