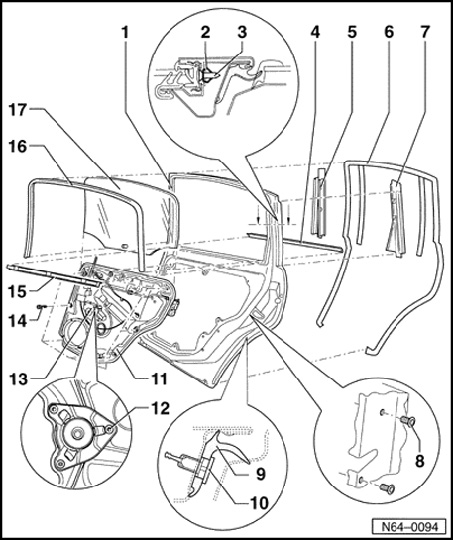

Rear Door Window, Assembly Overview

Rear Door Window, Assembly Overview







1 - Door
2 - Spring nut
- Qty 2

3 - Screw
- Qty 2
- 2 Nm

4 - Window recess seal
- Inserted on flange.

5 - Face plate
6 - Outer window channel
- Inserted on flange.

7 - Trim
8 - Bolt
- Qty 2
- 20 Nm

9 - Seal
10 - Clip
11 - Assembly carrier
- Window regulator is a component of assembly carrier.

12 - Bolt
- Qty. 3
- 8 Nm

13 - Motor for window regulator
- Bolted to assembly carrier from rear with bolt - 12 -.

14 - Bolt
- Qty. 7
- 8 Nm

15 - Window recess seal
- Inserted on flange.

16 - Inner window channel
- Inserted on flange.

17 - Door window
