Rear Door Window Glass: Locations

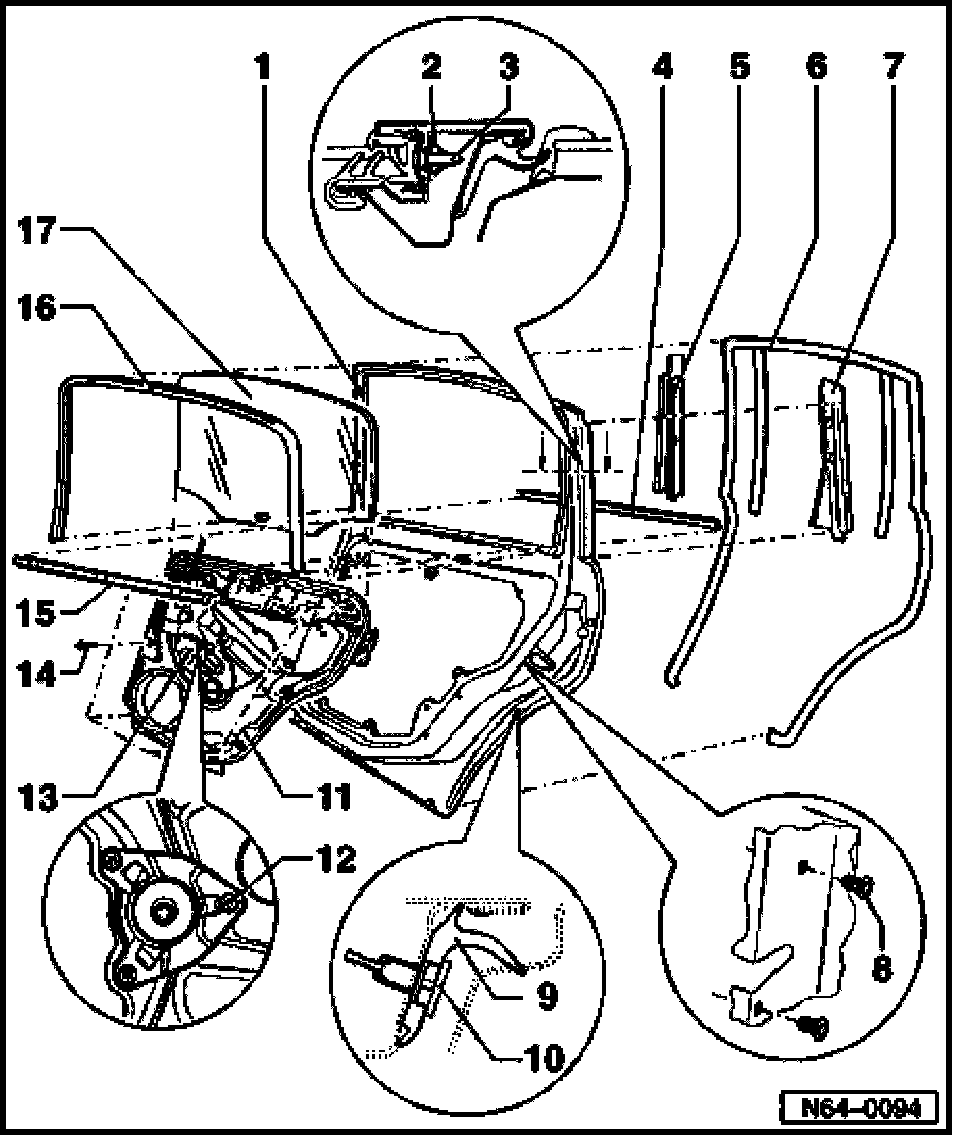

Rear Door Window, Assembly Overview






1. Door

2. Spring nut
Qty 2

3. Screw
Qty 2
2 Nm

4. Window recess seal
Inserted on flange.

5. Face plate

6. Outer window channel
Inserted on flange.

7. Trim

8. Bolt
Qty 2
20 Nm

9. Seal

10. Clip

11. Assembly carrier
Window regulator is a component of assembly carrier.

12. Bolt
Qty 3
8 Nm

13. Motor for window regulator
Bolted to assembly carrier from rear with bolt -12-.

14. Bolt
Qty 7
8 Nm

15. Window recess seal
Inserted on flange.

16. Inner window channel
Inserted on flange.

17. Door window
