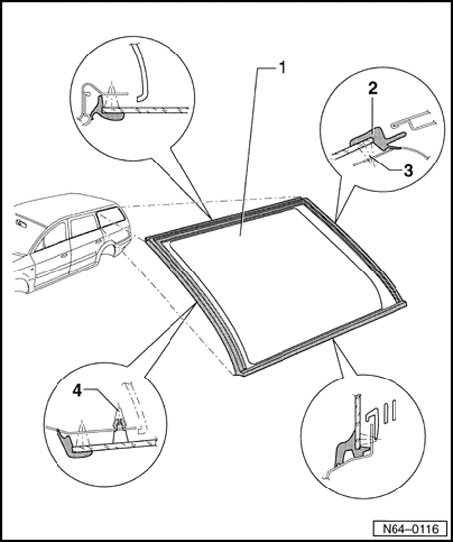

Side Window (Wagon), Assembly Overview

Side Window (Wagon), Assembly Overview --> 09.00







1 - Side window
- Side window has no pre-coating.

2 - Seal with spacer (component of window)
3 - PUR adhesive sealant
- Bead cross section.
- Width = 8 mm
- Height = 12 mm
- Including residual material on window and window flange.
- Minimum curing time.

4 - Securing pin
- Qty 2
- Secure side window between rear door and trunk lid.
