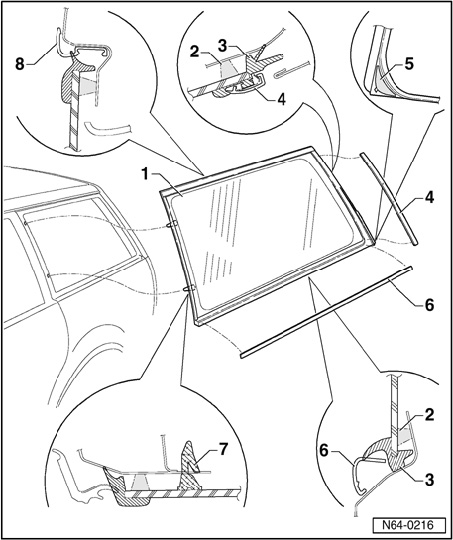

Side Window (Wagon), Assembly Overview

Side Window (Wagon), Assembly Overview 10.00 -->







1 - Side window
- Side window has no pre-coating.

2 - PUR adhesive sealant
- Bead cross section.
- Width = 8 mm
- Height = 12 mm
- Including residual material on window and window flange.
- Minimum curing time.

3 - Seal with spacer (component of window)
4 - Trim molding D-pillar
- Clipped twice from below, secured with double-sided adhesive tape in upper area.
- Must not be removed when removing window.

5 - Foil
- Remove foil before inserting window.

6 - Trim molding rail
- Clipped 5 times
- Must be removed when removing window.

7 - Securing pin
- Qty 2
- They secure side window between rear door and tailgate.

8 - Drip catch rail
