Side Window (Sedan), Assembly Overview

Side Window (Sedan), Assembly Overview 10.00 >

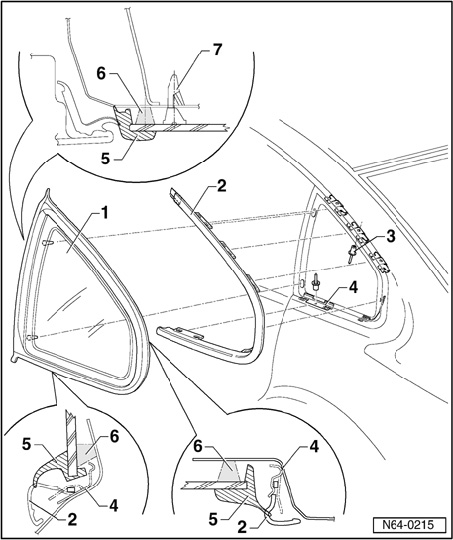

1 - Side window
- Disassembly and assembly sequence : First insert trim molding and then side window.

2 - Trim molding
3 - Hollow rivet 4-Clip
5 - Seal with spacer (component of window)
6 - PUR adhesive sealant
- Bead cross section.
- Width = 8 mm
- Height = 12 mm
- Including residual material on window and window flange.
- Minimum curing time.

7 - Securing pin
