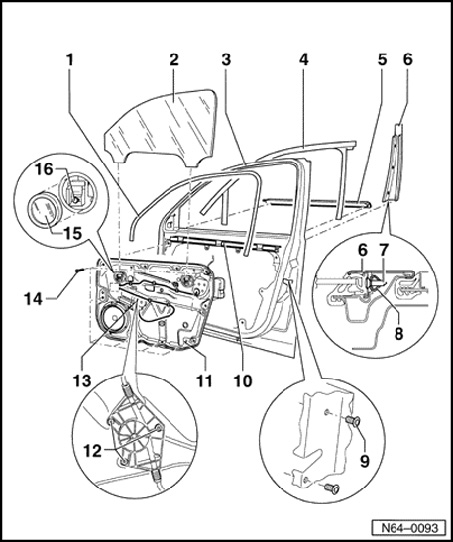

Front Door Window, Assembly Overview

Front Door Window, Assembly Overview







1 - Window channel
- Inserted on flange.

2 - Door window
3 - Door
4 - Outer window channel
- Inserted on flange.

5 - Window recess seal
- Inserted on flange.

6 - Face plate
7 - Screw
- Qty. 3
- 2 Nm

8 - Spring nut
- Qty. 3

9 - Bolt
- Qty 2
- 20 Nm

10 - Window recess seal
- Inserted on flange.

11 - Assembly carrier
- Window regulator is a component of assembly carrier.

12 - Bolt
- Qty. 3
- 8 Nm

13 - Motor for window regulator, passenger side V148 0r Motor for window regulator, driver side V147
- Passenger side shown, Driver side similar
- Bolted to assembly carrier from rear with bolt - 12 -.

14 - Bolt
- Qty. 10
- 8 Nm

15 - Concealment cap
16 - Bolt
- Qty 2
- 9 Nm
