Door Window to Window Regulator, Installing

Door Window to Window Regulator, Installing

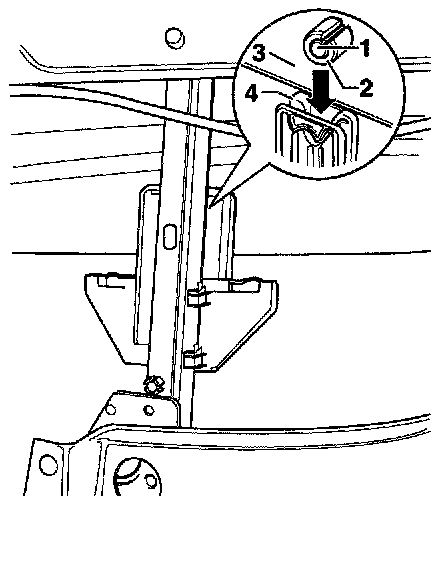

- Insert spreader plug -2- and spreader pin -1-.
- Set spreader plug projection on each side of window.
- Guide window into door.
- Insert window -3- in window regulator rail guide slot -4-.
- Lightly tap top of window, so that window locales in regulator rail -arrow-.
