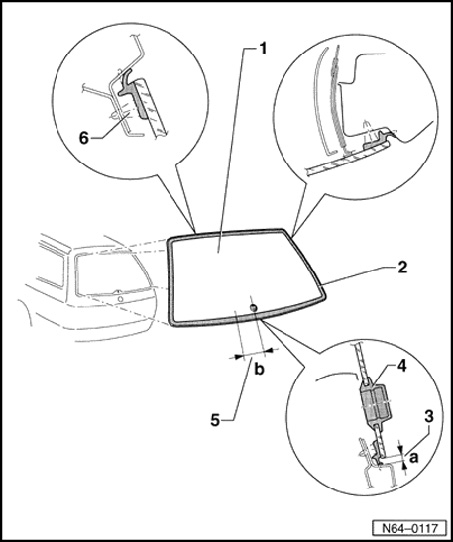

Rear Window (Wagon), Assembly Overview

Rear Window (Wagon), Assembly Overview







1 - Rear window
2 - Ceramic coating
3 - Dimension - a - = 4.5 mm
4 - Rubber seal
5 - Dimension - b - = 150 mm
- Sealant joint for adhesive bead

6 - PUR adhesive sealant
- Bead cross section.
- Width = 7 mm
- Height = 11 mm
- Including pre-coating, residual material on window and window flange.
- Minimum curing time.

7 - Sealing lip (component part of pre-coating)
