Transmission Input Speed (RPM) Sensor G182, Replacing

Transmission Input Speed (RPM) Sensor G182, replacing, 01V, 5 SPD. A/T (AWD)

There is a distinction made between two types of hydraulic control:

Information regarding which control is installed.

Distinguishing characteristics.

Transmission with hydraulic control E17

Removing
^ Remove valve body with hydraulic control E17.

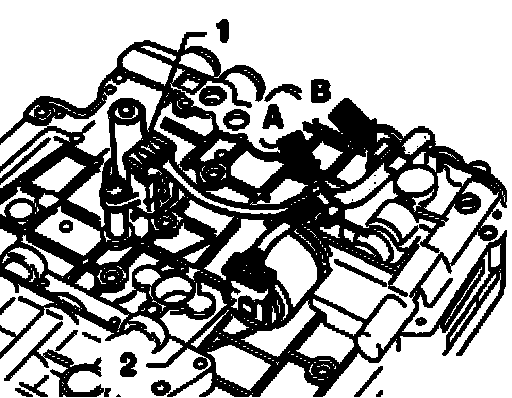

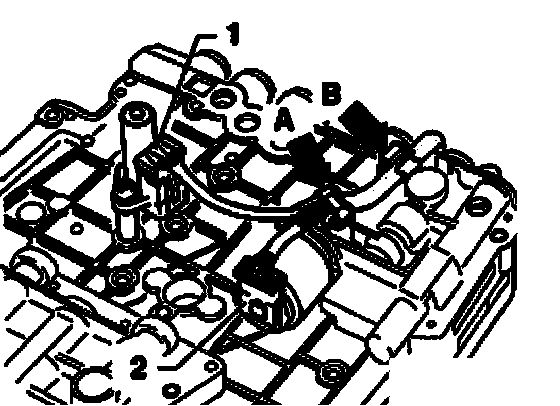

^ Turn valve body on its back side and loosen connector at Sensor for transmission RPM - 1 -





^ Unbolt Sensor for transmission RPM - 1 - at valve body.

Installing
Installation position:
Sensor-side with the connector terminals points to valve body center.

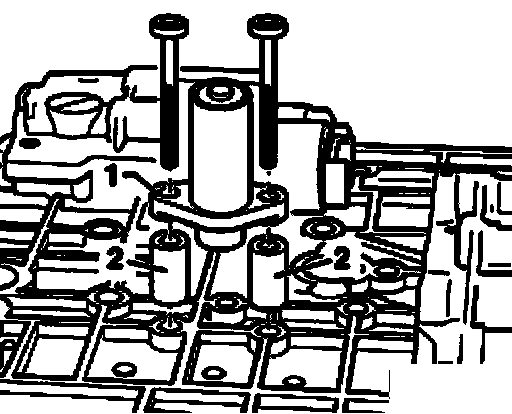

^ Install Sensor for transmission RPM - 1 - using spacer sleeves - 2 - (height: 20 mm).





^ Connect connector to Sensor for transmission RPM - 1 -.
^ Install valve body with hydraulic control E17.
^ Add ATF, check ATF level and top off.

Transmission with hydraulic control E18/2

Removing
^ Remove valve body with hydraulic control E18/2.

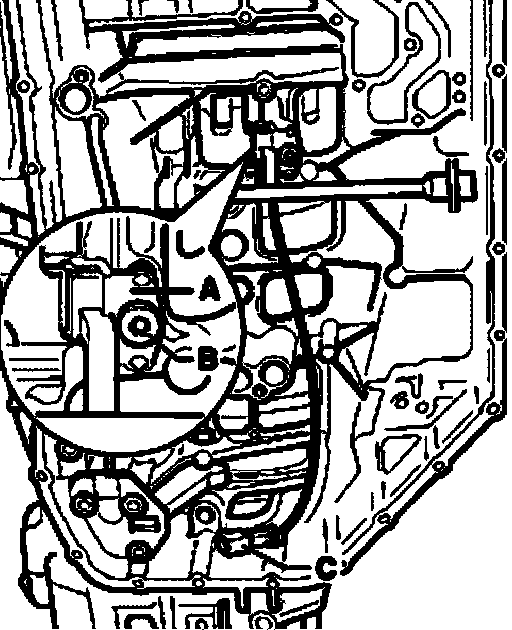

^ Unbolt Sensor for transmission RPM - A - from transmission.

Installing

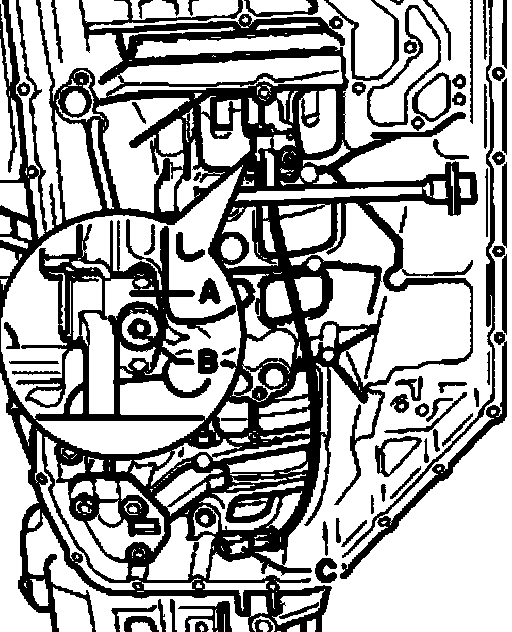

^ Bolt Sensor for transmission RPM - A - with bolt - B - to transmission.
^ Route wire with connector - C - according to illustration, so that the wire is not pinched when installing the valve body.
^ Install valve body with hydraulic control E18/2.
^ Add ATF, check ATF level and top off.
