Shift Rod and Pivot Rod, Servicing

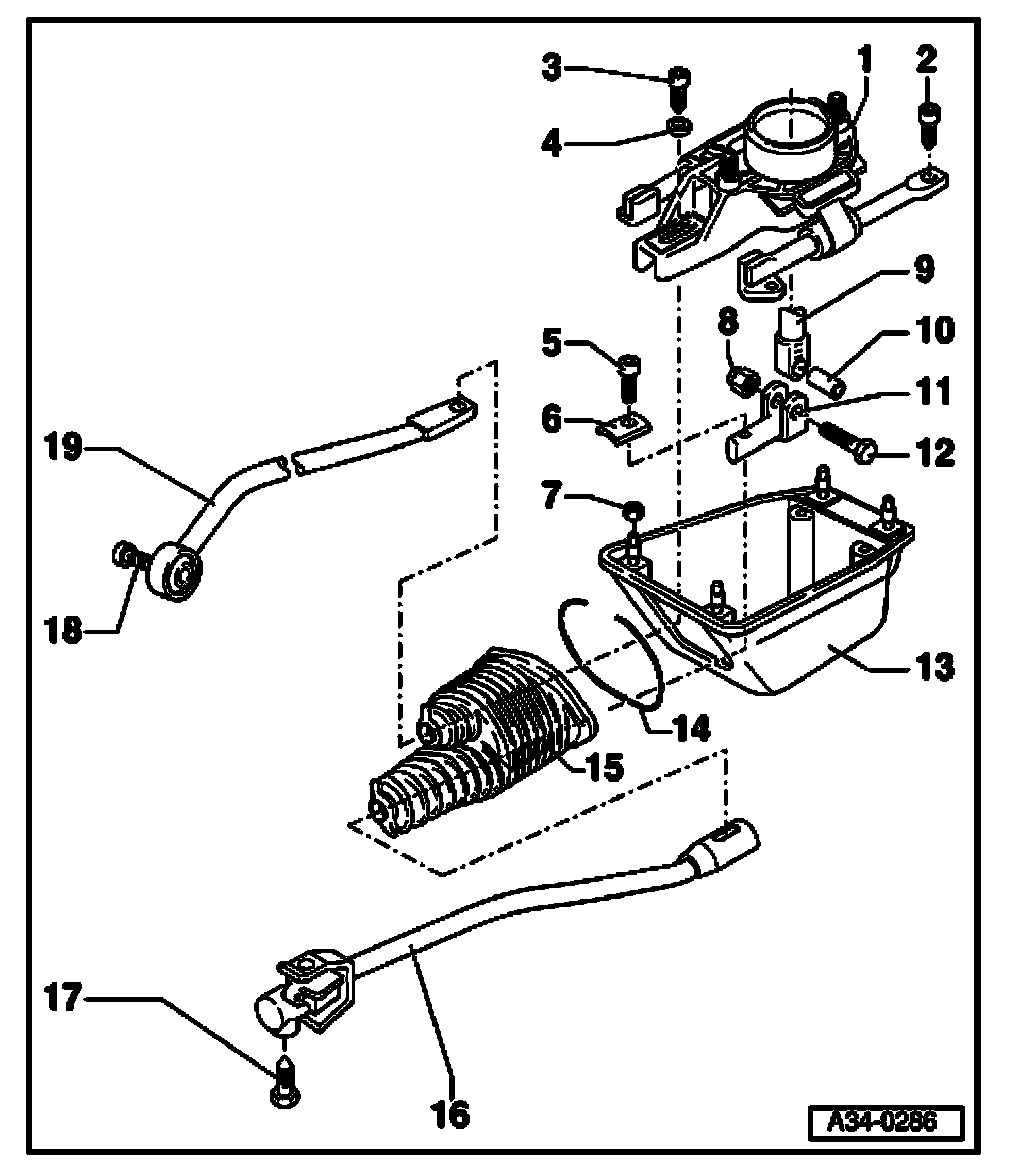

Shift rod and pivot rod, servicing, 01A, 5 SPD. M/T (AWD)





1. Shift lever bearing
2. Bolt, 6 Nm
^ 4x
^ For shift lever bearing on shift mechanism housing

3. Socket head bolt, 25 Nm
4. Washer
5. Socket head bolt, 25 Nm
6. Clamping piece
7. Hex nut, tighten to 10 Nm.
^ 4x
^ For shift mechanism housing at body

8. Hex nut, tighten to 10 Nm.
^ Self-locking
^ Always replace

9. Shift lever
10. Spacer tube
11. Shift fork
12. Bolt
13. Shift mechanism housing
14. Tensioning ring
15. Boot
^ Remove before removing and installing catalytic converter and heat shield at front

Note:
^ Carefully pull boot over shift rod
^ Place boot on markings of shift rod and pivot rod

16. Shift rod
^ With shift coupling

17. Hex bolt, 23 Nm
^ Self-locking
^ Always replace

18. Socket head bolt, 40 Nm
^ Cannot be removed from pivot rod bushing at front

19. Pivot rod
