Transmission, Servicing (Shift Lever Must Be Pushed Down to Select Reverse Gear)

Manual transmission, installation position, 01A, 5 SPD. M/T (AWD)

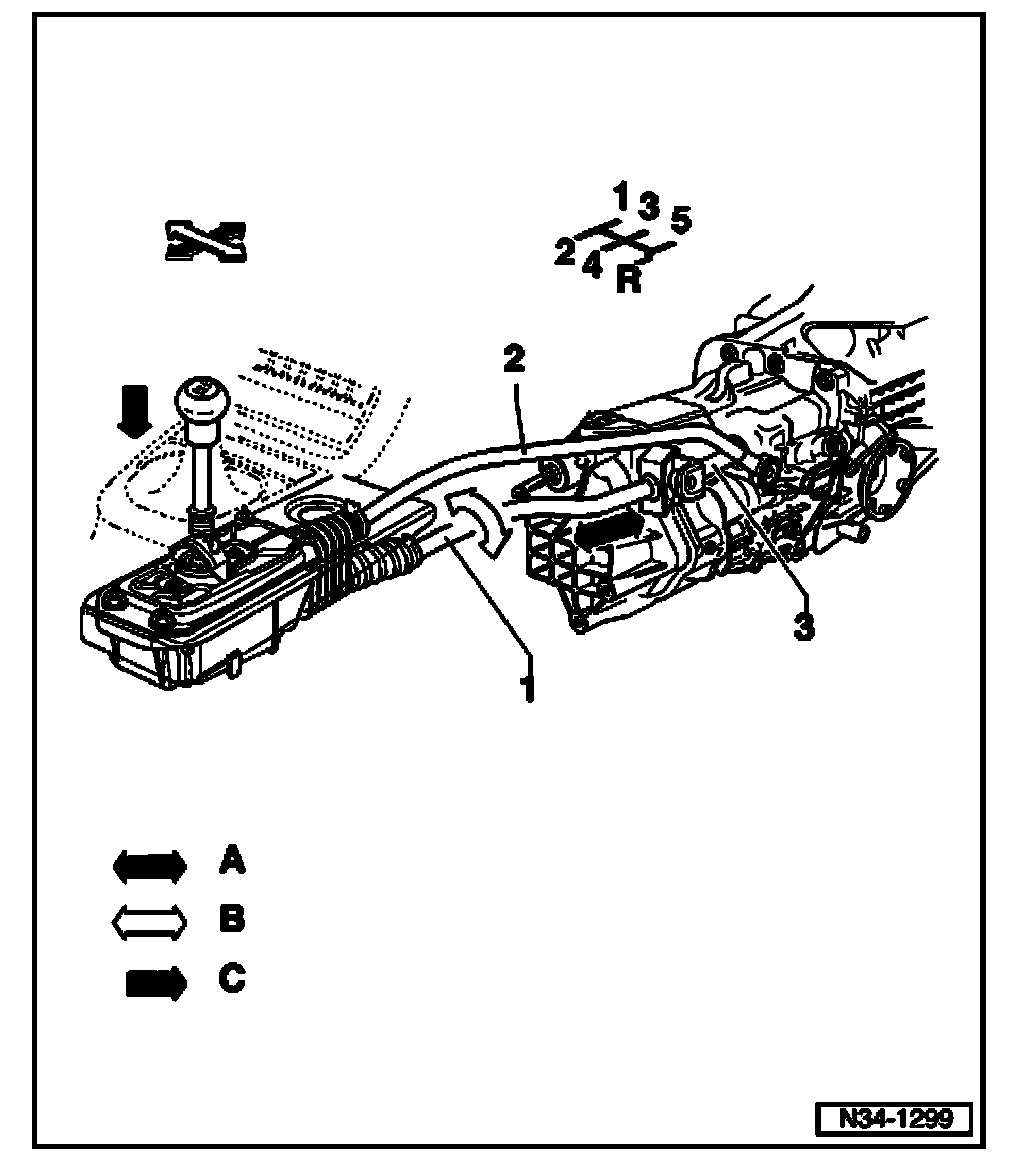

Shift mechanism, adjusting





1. Shift rod
2. Pivot rod
3. Transmission shift lever
Arrow A - shift motion
Arrow B - selector motion
Arrow C - Shift lever must be pushed down to select reverse gear.
