Synchronization of 3RD and 4TH Gears Modified As of Transmission Manufacture Date 23 06 3

Synchronization of 3rd and 4th gears modified as of transmission manufacture date 23 06 3, 01A, 5 SPD. M/T (AWD)

Note:
^ As of transmission manufacture date 23 06 3, new synchronizer rings with enlarged friction cone and reduced gear splining for 3rd and 4th gear has been implemented. Sliding gears, sliding sleeves and synchronization hubs were adapted accordingly and cannot be interchanged with synchronization parts of the earlier construction type.

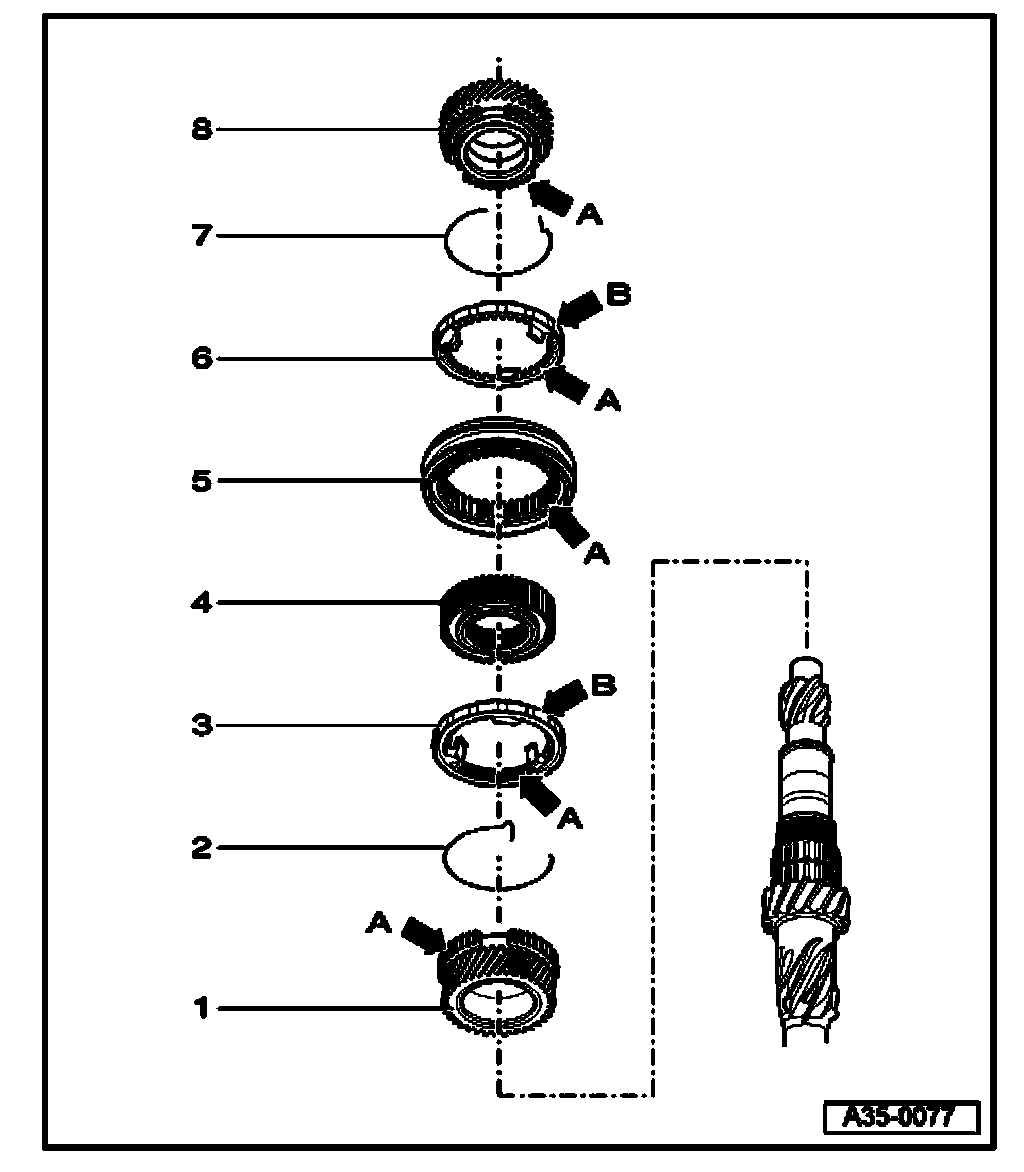

The following components have been modified:
^ Reduced gear splining - arrows A -
^ Synchronizer rings with enlarged friction cone - arrows B -





1. 3rd gear sliding gear
2. Synchronizer spring for 3rd gear
3. Synchronizer ring for 3rd gear
4. Synchronizer hub for 3rd and 4th gears
5. Sliding sleeve for 3rd and 4th gear
6. Synchronizer ring for 4th gear
7. Synchronizer spring for 4th gear
8. 4th gear sliding gear
